3. Instructions
216
CS/CJ/NSJ Series Instructions Reference Manual (W474)
2. Turn OFF the execution condition for the timer instruction.
The timer will be reset when its execution condition turns OFF.
The timer will start timing again when its execution condition turns ON.
With this method, a timer cannot be reset and then restarted within the same cycle.
3. Use the RESET TIMER/COUNTER instruction.
The specified instruction will be reset when the RESET TIMER/COUNTER instruction (CNR/CNRX) is
executed.
More than one timer can be reset at the same time for CNR/CNRX, but more time is required than for
TRSET.
CNR/CNRX is used in the same way as TRSET.
TIM
0010
#100
0.01
ON
OFF
ON
OFF
Timer input
CIO 0.01
Timer PV
T0010
Completion
Flag
T0010

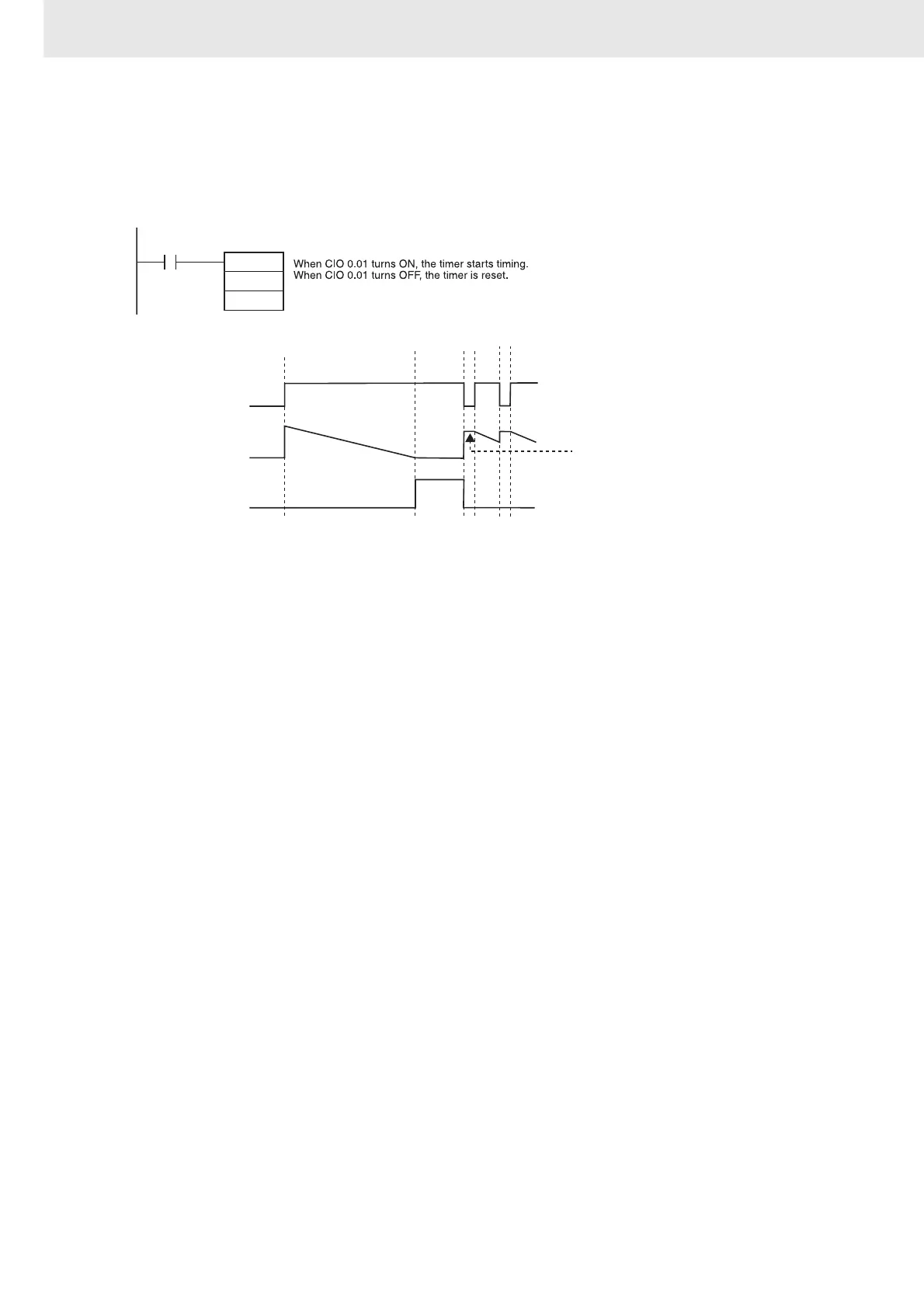

The timer cannot be reset and then
restarted within the same cycle.
