Omron CJ - INSTRUCTIONS User Manual

3. Instructions
220
CS/CJ/NSJ Series Instructions Reference Manual (W474)
Example Programming

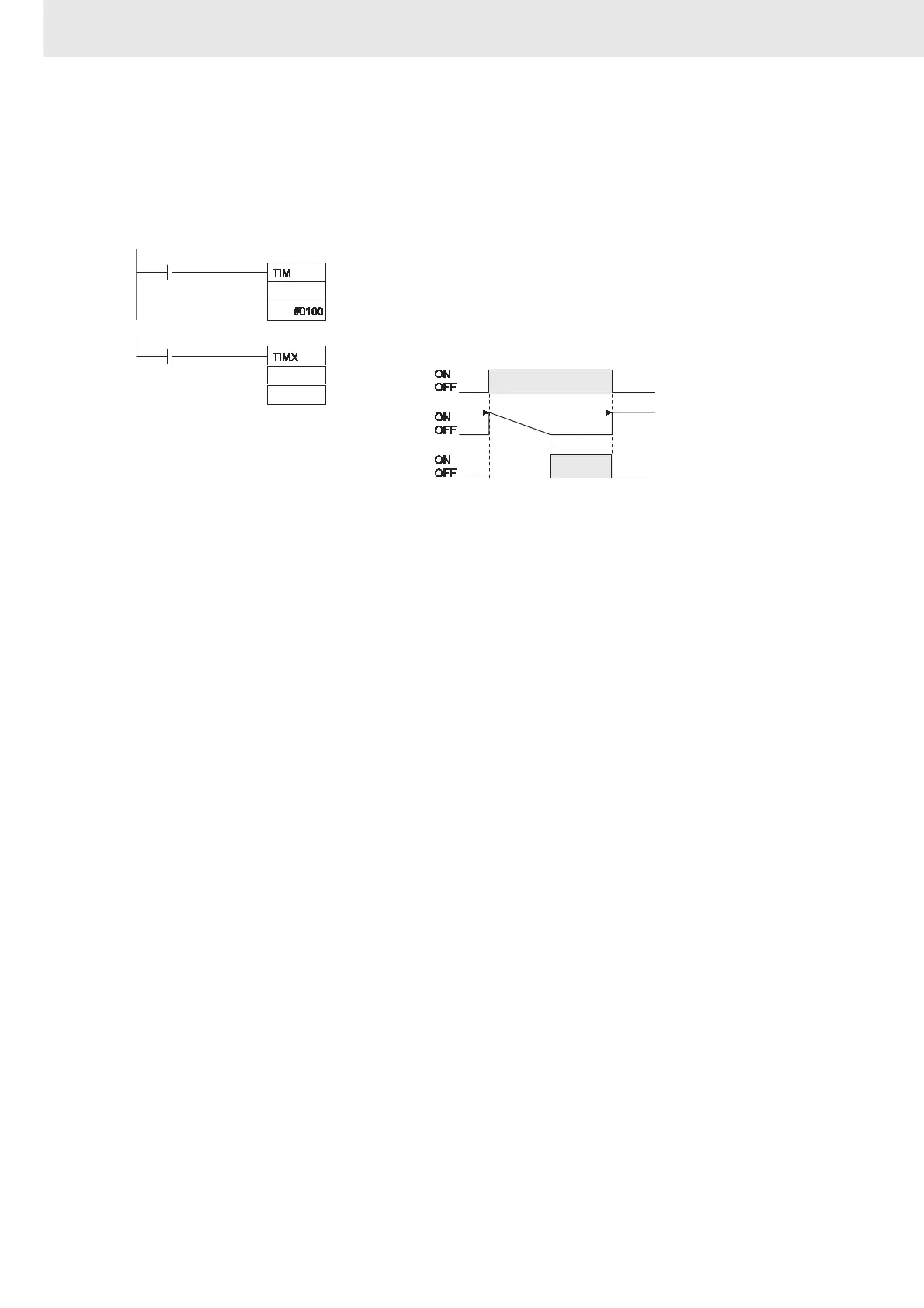

When timer input CIO 0.00 goes from OFF to ON in the following example, the timer PV will begin
counting down from the SV. Timer Completion Flag T0000 will be turned ON when the PV reaches 0.
When CIO 0.00 goes OFF, the timer PV will be reset to the SV and the Completion Flag will be turned
OFF.
i
0.00
100
T0000
T0000
&0100
or
0.00
0000
0000
0.00
Timer input
Timer PV
Timer
Completion
Flag
