3. Instructions
322
CS/CJ/NSJ Series Instructions Reference Manual (W474)

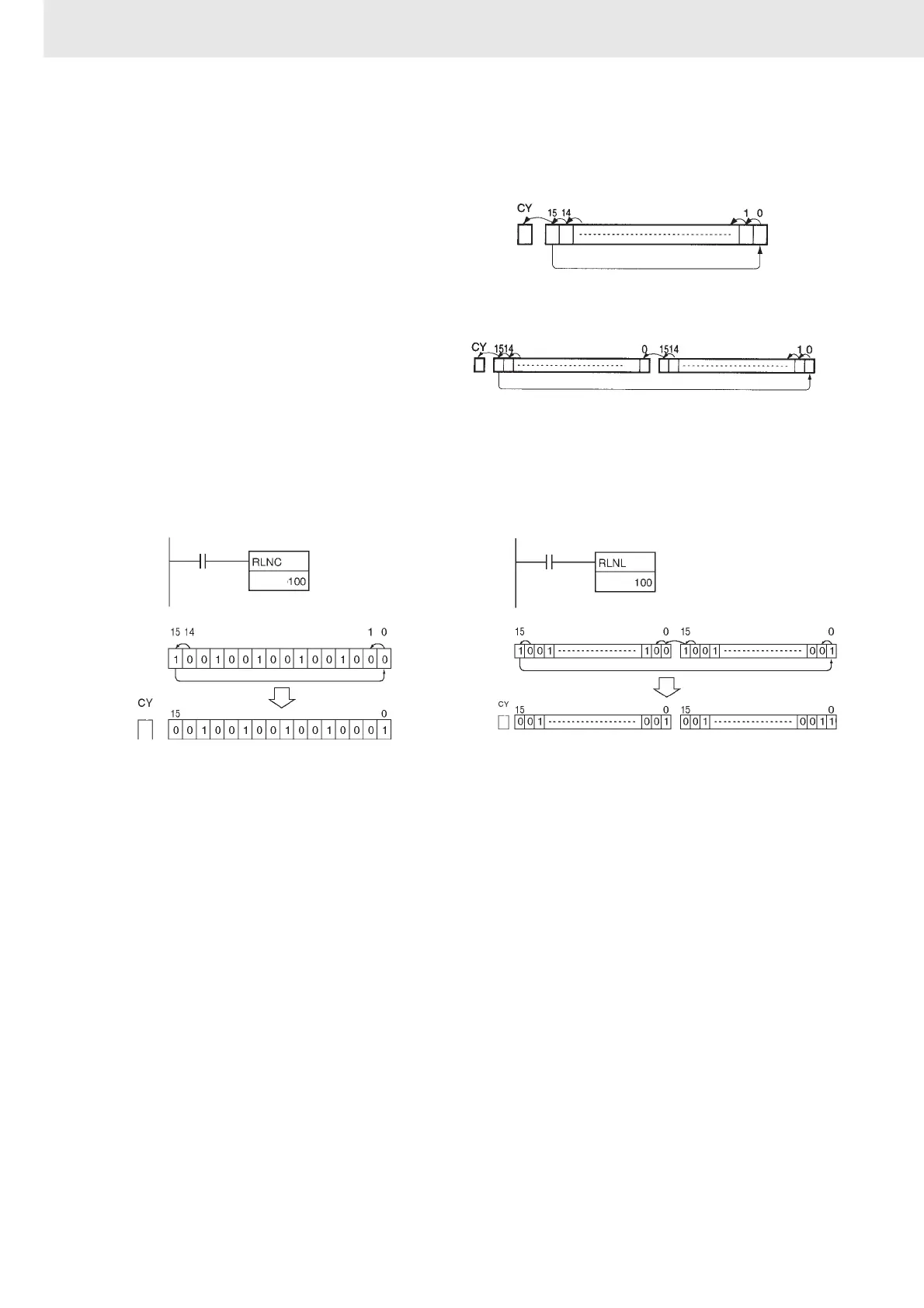

Function
z RLNC
z RLNL
Example Programming
RLNC(574) shifts all bits of Wd to the left
(from rightmost bit to leftmost bit). The
contents of the leftmost bit of Wd shifts to the
rightmost bit and to the Carry Flag (CY).
RLNL(576) shifts all bits of Wd and Wd +1 to
the left (from rightmost bit to leftmost bit).
The contents of the leftmost bit of Wd +1 is
shifted to the rightmost bit of Wd, and to the
Carry Flag (CY).
When CIO 0.00 is ON, word CIO 100 will shift
one bit to the left (excluding the Carry Flag
(CY)). The contents of CIO 100.15 will be
shifted to CIO 100.00.
When CIO 0.00 is ON, word CIO 100 and CIO 101
will shift one bit to the left (excluding the Carry
Flag (CY)). The contents of CIO 101.15 will be
shifted to CIO 100.00.
Wd
Wd+1 Wd
1
Wd
Instruction executed once
Wd: CIO 100
0.00
1
Wd
Instruction executed once
Wd: CIO 100Wd+1: CIO 101
0.00
