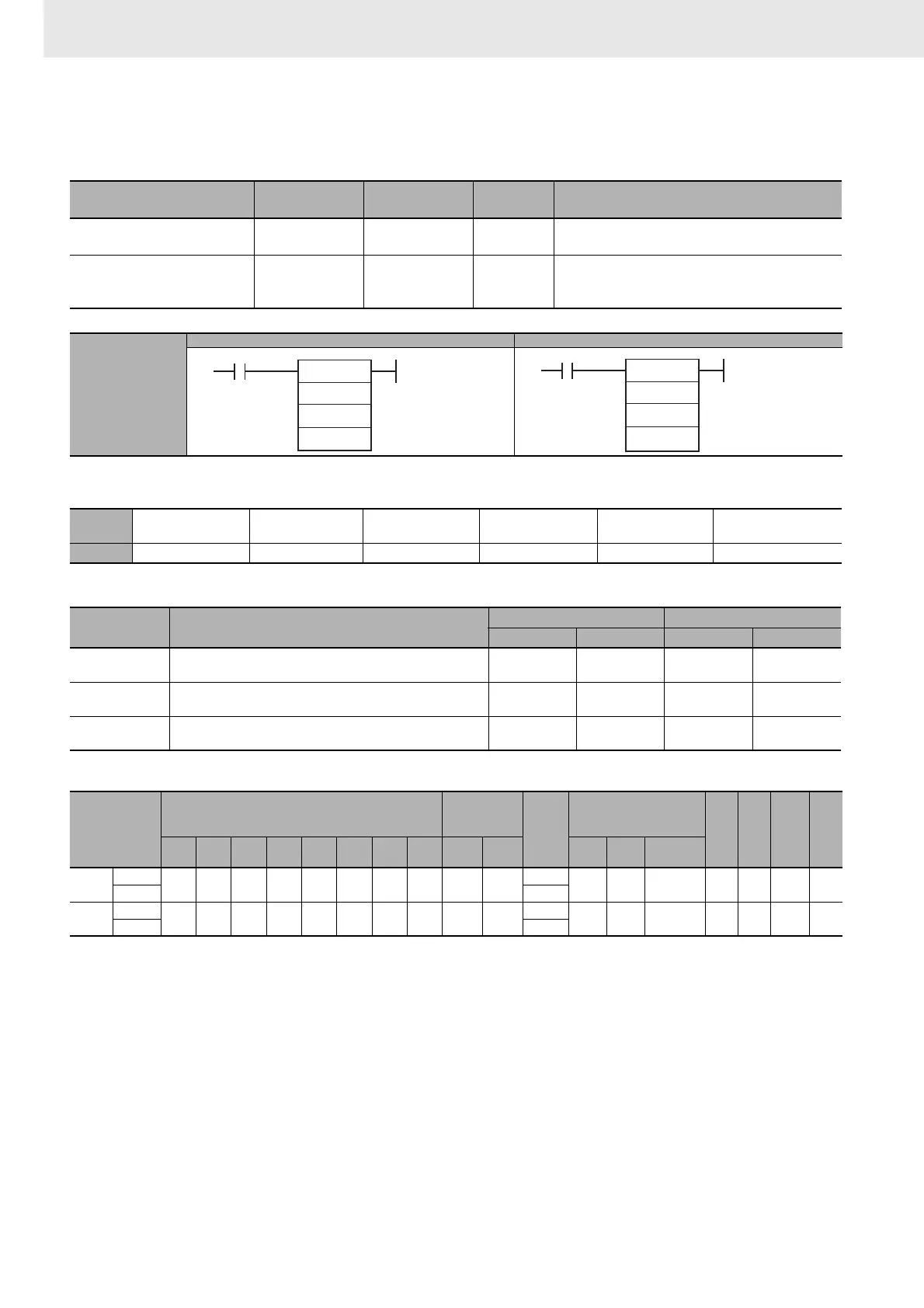

3. Instructions
358
CS/CJ/NSJ Series Instructions Reference Manual (W474)
–/–L
Applicable Program Areas
Operands
z Operand Specifications
Instruction Mnemonic Variations
Function
code
Function
SIGNED BINARY SUBTRACT
WITHOUT CARRY
– @– 410
Subtracts 4-digit (single-word) hexadecimal data
and/or constants.
DOUBLE SIGNED BINARY
SUBTRACT WITHOUT
CARRY
–L @–L 411
Subtracts 8-digit (double-word) hexadecimal data
and/or constants.
Symbol
– –L
Area
Function block
definitions
Block program areas Step program areas Subroutines Interrupt tasks
SFC action or
transition programs
Usage OK OK OK OK OK OK
Operand Description
Data type Size
– –L – –L
Mi
–: Minuend word
–L: First minuend word
INT DINT 1 2
Su
–: Subtrahend word
–L: First subtrahend word
INT DINT 1 2
R
–: Result word
–L: First result word
INT DINT 1 2
Area
Word addresses
Indirect
DM/EM
addresses
Con-
stants
Registers
TK CF
Pulse
bits
TR
bits
CIO WR HR AR T C DM EM
@DM
@EM
*DM
*EM
DR IR
Indirect
using IR
–
MI, Su
OK OK OK OK OK OK OK OK OK OK
OK
OK --- OK --- --- --- ---
R ---
–L
Mi, Su
OK OK OK OK OK OK OK OK OK OK
OK
--- OK OK --- --- --- ---
R ---
−(410)
R
Mi
Su
Mi: Minuend word
Su: Subtrahend word
R: Result word
−L(411)
R
Mi
Su
Mi: Minuend word
Su: Subtrahend word
R: Result word
