3. Instructions
CS/CJ/NSJ Series Instructions Reference Manual (W474)
Conversion Instructions
3

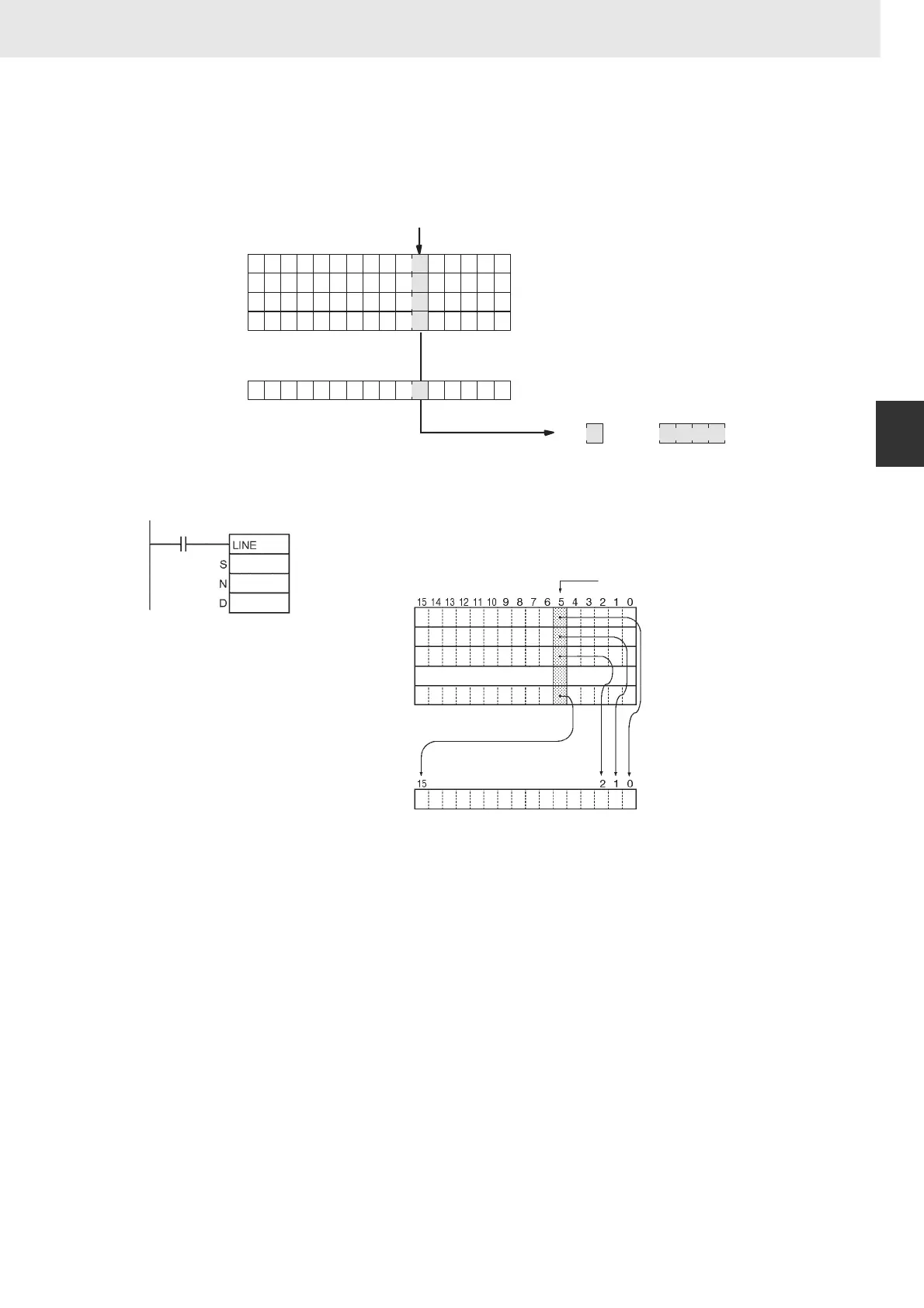

LINE
Function
LINE(063) copies the 16 bits with bit number N from the 16-word range S to S+15 to the destination
word D. Bit N of S+m is copied to bit m of D, i.e., bit N of S is copied to bit 00 of D and bit N of S+15 is
copied to bit 15 of D.
Example Programming
When CIO 0.00 is ON in the following example, LINE(063) copies bit 5 from D100 to D115 to the 16 bits
in D200.
0
0 0 0 1 1 1 1 0 001 0 0 0 01
15 00
S
N
1 1 0 1 0 0 1 0 011 1 0 0 01
S+1
0 0 0 1 1 0 1 1 001 0 0 1 11
S+2
.
.
.
.
.
.
...
.
.
.
0 1 1 0 0 0 0 1 100 0 1 0 10
S+15
1 0 0 0 0 0 1 1 000 0 0 1 11
S+3
0 1 1
D
1
15 00
.
.
.
Bit Bit
Bit Bit
N: #0005
S: D100
D: D200
D101
D102
D115
D100
D200
0.00
to
to
&5
