3. Instructions
420
CS/CJ/NSJ Series Instructions Reference Manual (W474)
• C = 1 (Output Data Range: -7999 to 7999 BCD)
• C = 2 (Output Data Range: -999 to 9999 BCD)
• C = 3 (Output Data Range: -1999 to 9999 BCD)
BDSL
• C = 0 (Output Data Range: -999 9999 to 999 9999 BCD)
• C = 1 (Output Data Range: -7999 9999 to 7999 9999 BCD)
• C = 2 (Output Data Range: -999 9999 to 9999 9999 BCD)
• C = 3 (Output Data Range: -1999 9999 to 9999 9999 BCD)

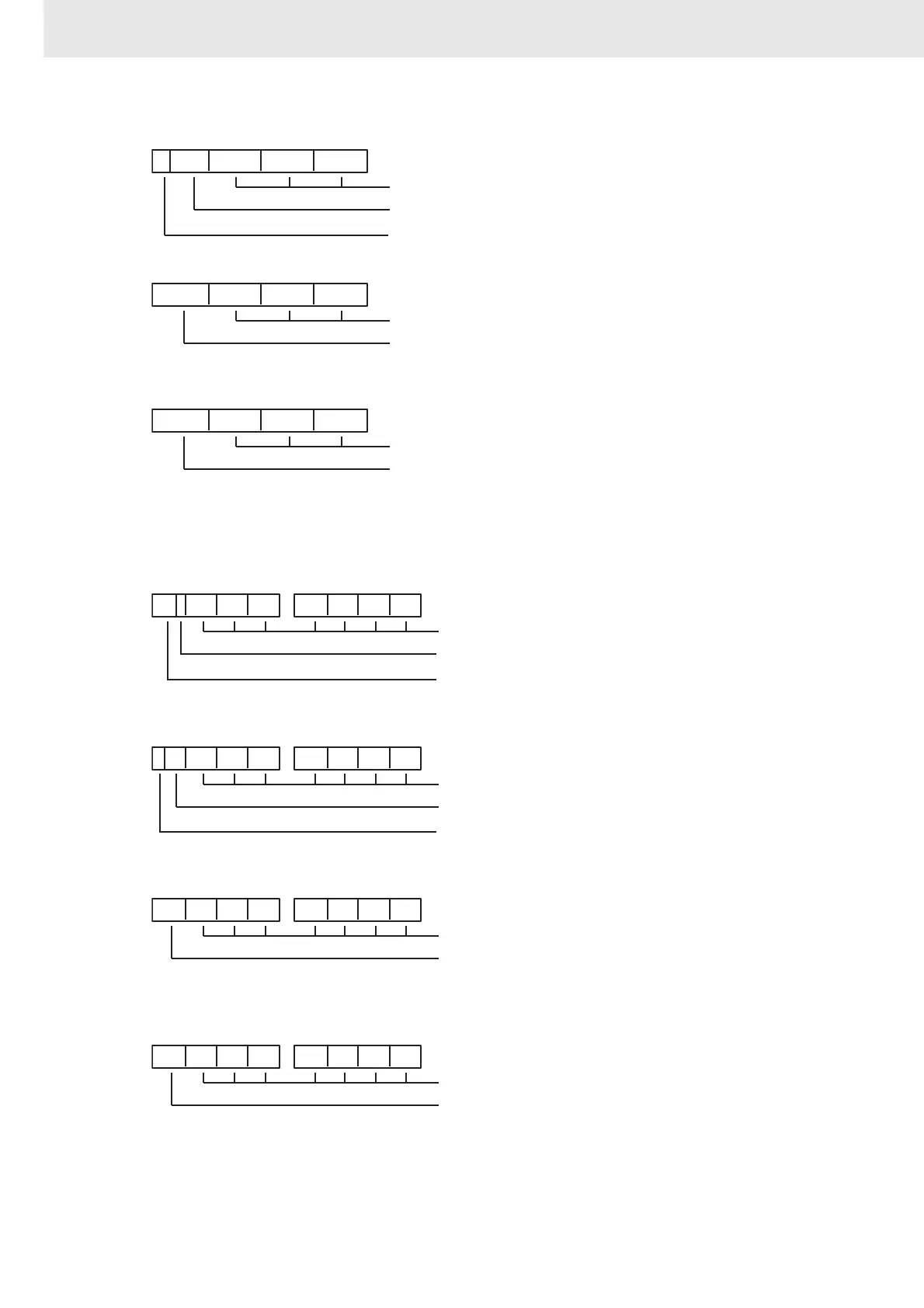

3 digits BCD, 12 bits
3 bits of digit 4 (Bit 12 to 14)
Sign bit (0: Positive; 1: Negative)
3 digits BCD, 12 bits
0 to 9: Fourth digit BCD
F: Negative (–)
0 to 9: Fourth digit BCD
A: Negative (–1)
F: Negative (–)
3 digits BCD, 12 bits
S+1 S
7 digits BCD, 28 bits
Sign bit (0: Positive; 1: Negative)
Status of 3 bits: 0
S+1 S
3 bits of digit 8 (Bit 12 to 14)
7 digits BCD, 28 bits
Sign bit (0: Positive; 1: Negative)
S+1 S
0 to 9: Eighth digit BCD
F: Negative (–)
7 digits BCD, 28 bits
S+1 S
0 to 9: Eighth digit BCD
A: Negative (–1)
F: Negative (–)
7 digits BCD, 28 bits
