3. Instructions
CS/CJ/NSJ Series Instructions Reference Manual (W474)
Table Data Processing Instructions
3
SUM

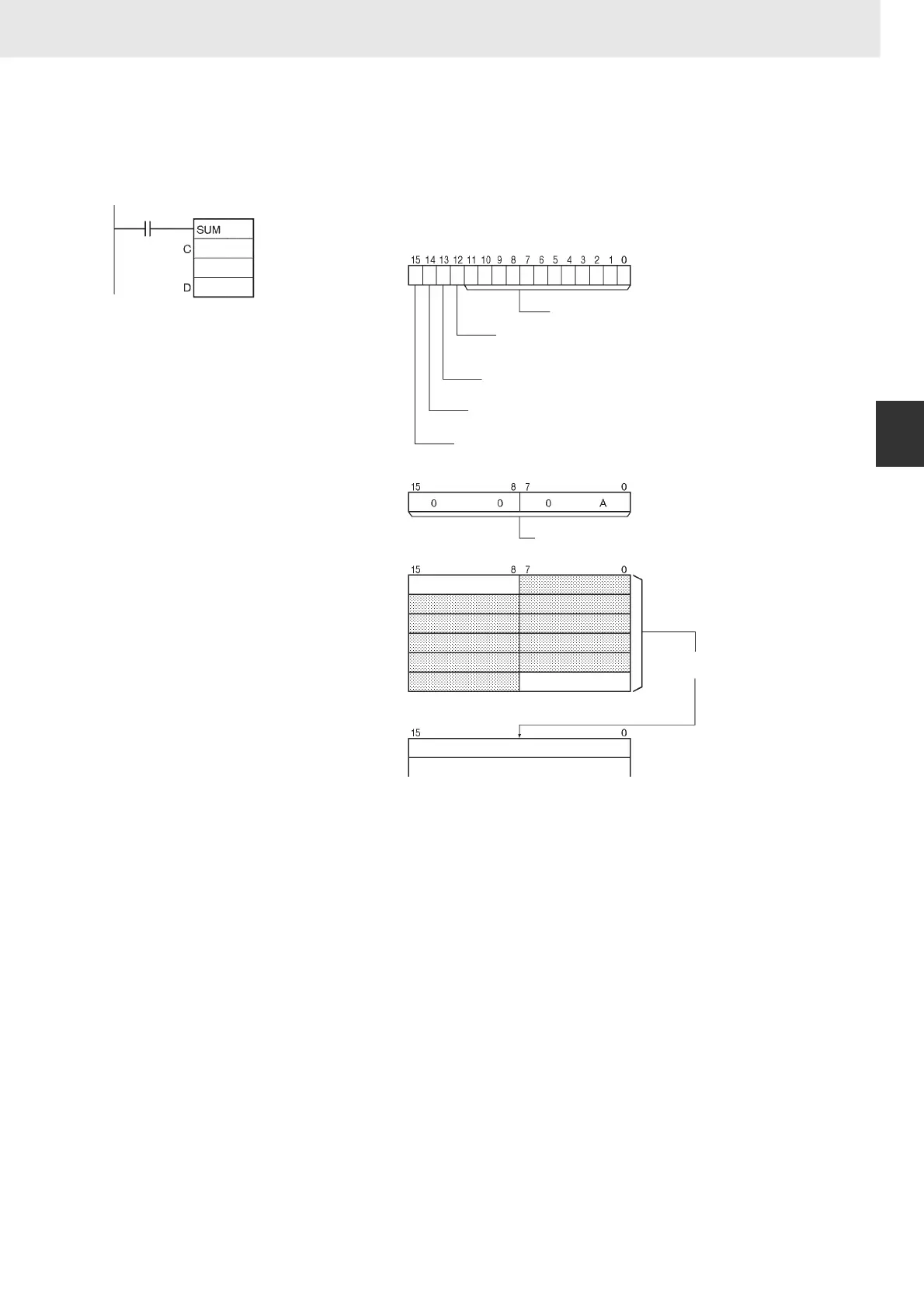

Example Programming
When CIO 0.00 is ON in the following example, SUM(184) adds 10 bytes of unsigned binary data
beginning with the rightmost byte of D100 and writes the result to D201 and D200.
C: D300
C+1: D301
D: D200
D+1: D201
R1
C 3
9 F
2 7
2 A
D C
2 A
2 A
2 0
2 0
5 5
0 3
0 0
7 8
0 0
D300
D100
D200
R1: D100
D101
D102
D103
D104
D105
Number of words/bytes
Always 0.
Starting byte
1: Rightmost byte
Units
1: Bytes
Data type
0: Binary
Data type
0: Unsigned binary data
10 bytes
Table length
The shaded bytes are added.
0.00
