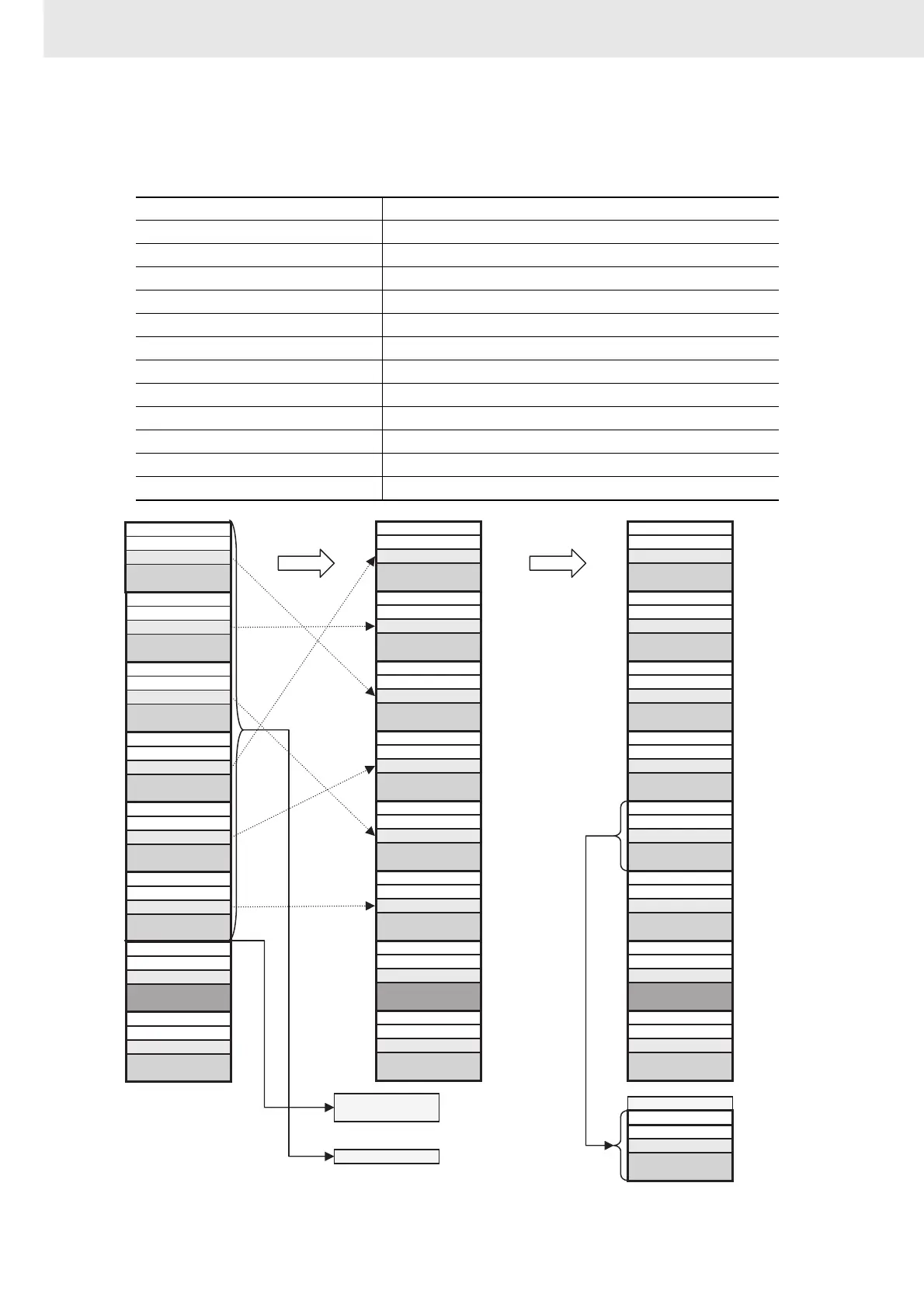

z Sorting and Then Searching Tracking Data
The tracking data table is sorted according to the delivery code and then the data is searched for
delivery code A200 0038 hex.
First word of first record D1000
Record length 5
Number of records 8
First word of sorting results D200
Sort key Delivery code
Sort options Ascending order, Split sort disabled (complete in one cycle)
Setting to end sorting Enabled for end data (delivery code = FFFF FFFF hex)
Sort results output to index register IR1
First word of search results D100
Search key Delivery code
Setting to end search Enabled for end PLC memory address (search results output)
Search method Split search
Search results output to index register Output disabled
#0005
#08335642
#0008
#06219836
#0007
#A2000038
#0001
#0092DDC4
#0006
#33900004
#0002
#E830EDFF
#FFFFFFFF #FFFFFFFF #FFFFFFFF
#0005
#08335642
#0008
#06219836
#0007
#A2000038
#0001
#0092DDC4
#0007
#A2000038
#0002
#E830EDFF
#0006
#33900004
Step 1 Step 2
D1000
D1005
D1010
D1015
D1020
D1025
D1030
D1035
6
D200
#0005
#08335642
#0008
#06219836
#0007
#A2000038
#0001
#0092DDC4
#0002
#E830EDFF
#0006
#33900004
D100
IR1
(Not valid.)
(Not valid.)
(Not valid.)
(Not valid.)
(Not valid.)
(Not valid.)
Address of D1030
Number of records
to sort
The records are
sorted according to
delivery codes
using the RSORT2
instruction.
The tracking data
is searched using
the RSRCH2=
instruction.
4
Record number
