CS/CJ/NSJ Series Instructions Reference Manual (W474)
z Searching with End Data Enabled to End the Search
If the setting to end the search is enabled in C+3 for end data, records will be searched until the record
just before the record in which the end data specified in C+4 is found. If the end data is not found, the
number of records specified in C will be searched.

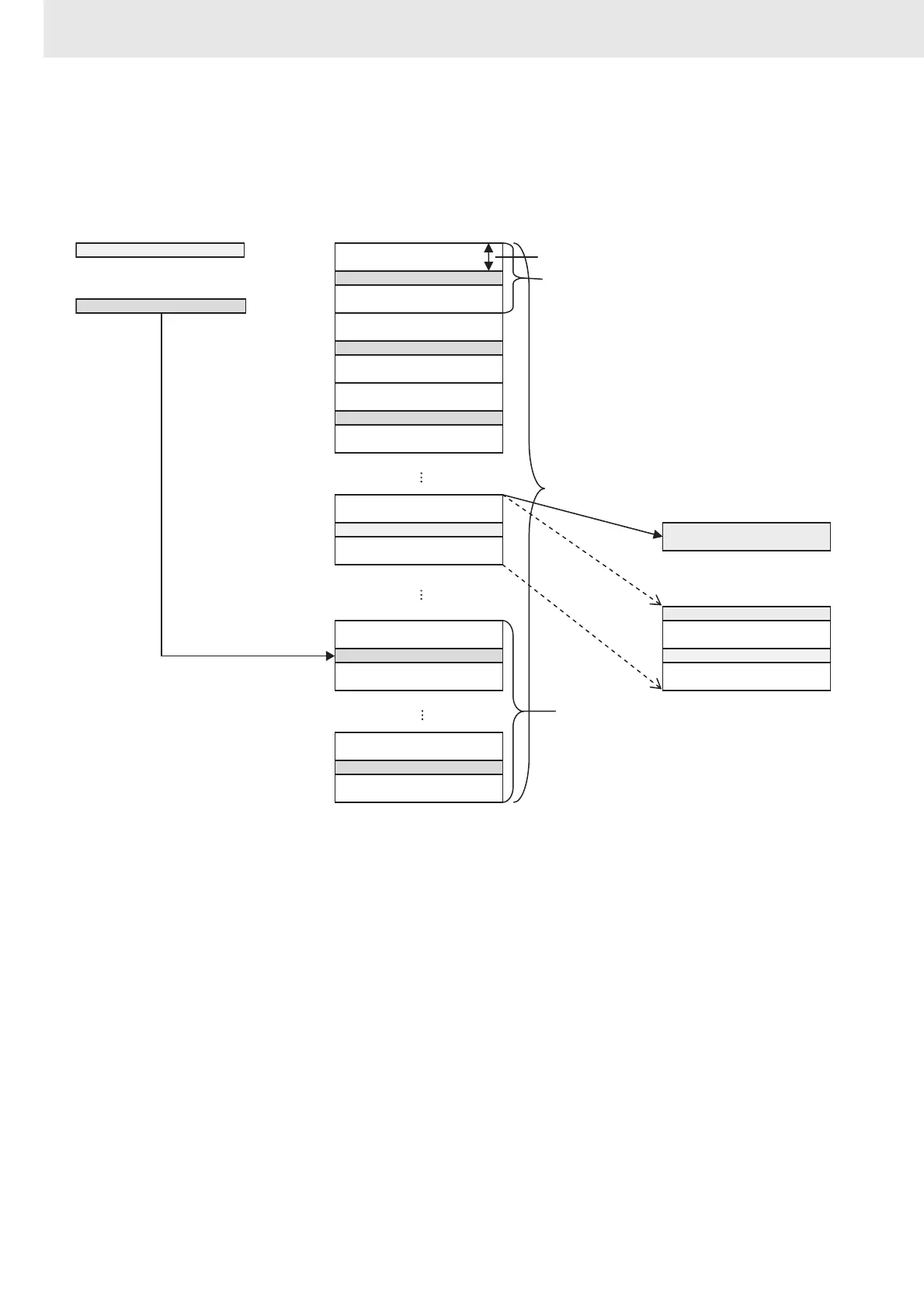

Search data offset (C+2)
Record length (C+1)
Record 0
Record 1
Record 2
Record m
Record n
Number of records (C)
Search data
(S2)
Search end data (C+4)
Last record
Invalid records
(i.e., not searched)
First destination word (D1)
IR**
D1
D1+1
Search data
End data
First word of first record (S1)
Searched data
Searched data
Searched data
Searched data (match)
Searched data (end data)
Not searched.
PLC memory address for
first word of matching record
Number of matching record (m)
Searched data (match)
