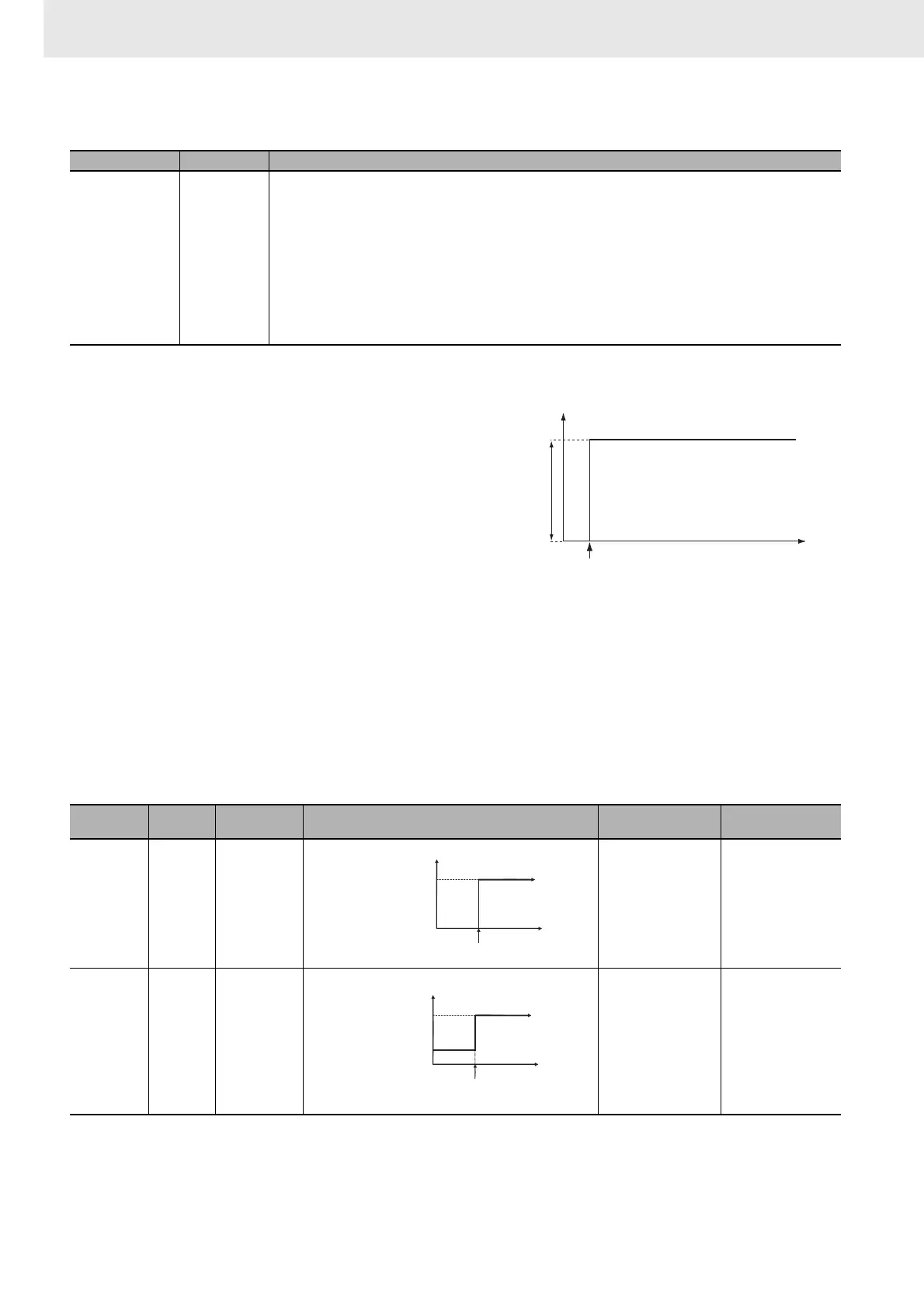

3. Instructions
752
CS/CJ/NSJ Series Instructions Reference Manual (W474)
Flags
Function
In continuous mode, pulse output will continue until stopped from the program. In independent mode,
pulse output will stop automatically when the number of pulses set with PULS(886) in advance have
been output.
An error will occur if the mode is changed between independent and continuous mode while pulses are
being output.
z Continuous Mode Speed Control
When continuous mode operation is started, pulse output will be continued until it is stopped from the
program.
Note Pulse output will stop immediately if the CPU Unit is changed to PROGRAM mode.
Name Label Operation
Error Flag P_ER • ON if the specified range for P, M, or F is exceeded.
• ON if ACC(888), PLS2(887), ORG(889) or IFEED(892) is already being executed to control pulse output for the
specified port.
• ON if SPED(885) is used to change the mode between continuous and independent output during pulse output.
• ON if SPED(885) is executed in an interrupt task when an instruction controlling pulse output is being executed in a
cyclic task.
• ON if SPEC(885) is executed in independent mode with an absolute number of pulses and the origin has not been
established.
• ON if SPED(885) is executed in independent mode and the number of pulses is not set.
• For a CJ2M CPU Unit, ON for any function that uses I/O on the Pulse I/O Module even if a Pulse I/O Module is not
mounted.
• OFF in all other cases.
SPED(885) starts pulse output on the port
specified in P using the method specified in
M at the frequency specified in F. Pulse
output will be started each time SPED(885)
is executed. It is thus normally sufficient to
use the differentiated version
(@SPED(885)) of the instruction or an
execution condition that is turned ON only
for one scan.
Operation Purpose Application Frequency changes Description
Procedure/
instruction
Starting
pulse output
To o ut p u t
with
specified
speed
Changing the
speed
(frequency) in
one step
Outputs pulses at a
specified frequency.
SPED(885)
(Continuous)
Changing
settings
To change
speed in
one step
Changing the
speed during
operation
Changes the
frequency (higher or
lower) of the pulse
output in one step.
SPED(885)
(Continuous)
↓
SPED(885)
(Continuous)
Target frequency
Time
SPED(885) executed.
Pulse frequency
Pulse frequency
Target frequency
Execution of SPED(885)
Time
Pulse frequency
Target frequency
Present frequency
Execution of
SPED(885)
Time
