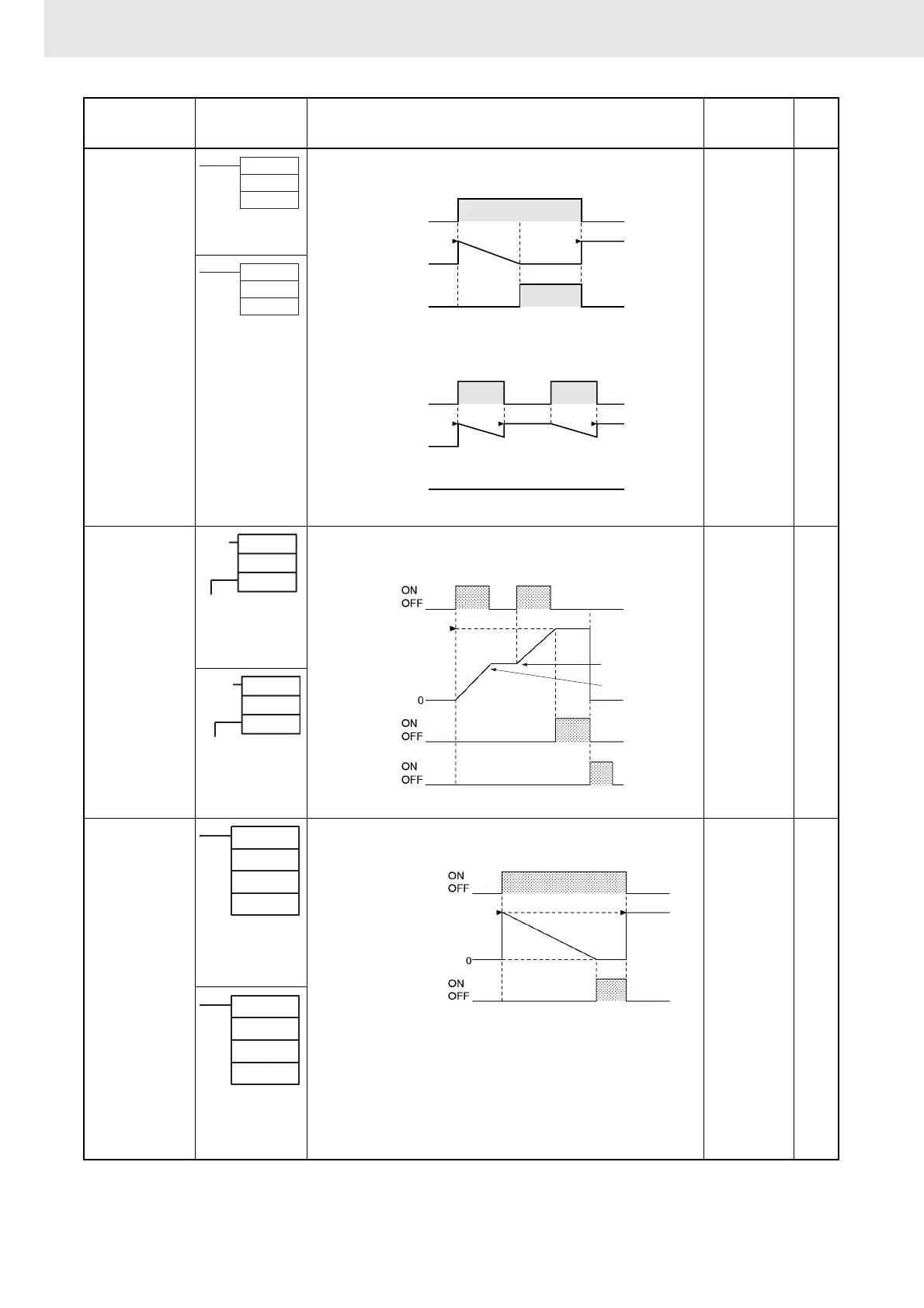

CS/CJ/NSJ Series Instructions Reference Manual (W474)
2. Summary of Instructions
HUNDREDTH-MS
TIMER (CJ1-H-R
and CJ2 only)
TMUH
554
(BCD)
TMUH(554)/TMUHX(557) operates an decrementing timer with units of
0.01-s. The setting range for the set value (SV) is 0 to 0.0999 s for BCD
and 0 to 0.65535 s for binary (decimal or hexadecimal).
Note: The timer’s present value cannot be accessed for a HUN-
DREDTH-MS TIMER instruction.
Output
Required
231
TMUHX
557
(BCD)
ACCUMULATIVE
TIMER
TTIM
087
(BCD)
TTIMX
555
(Binary)
(CJ2, CS1-H,
CJ1-H, CJ1M, or
CS1D only)
Output
Required
234
LONG TIMER
TIML
542
(BCD)
TIMLX
553
(Binary)
(CJ2, CS1-H,
CJ1-H, CJ1M, or
CS1D only)
Output
Required
237
Instruction
Mnemonic
Code
Symbol/Operand Function Location
Execution
condition
Page
N: Timer number
S: Set value
TMUH(554)
N
S
ON
OFF
0
ON
OFF
Timer Input Turns OFF before Completion Flag Turns ON
ON
OFF
0
ON
OFF
SV
Timer input
Timer PV
Completion
Flag
SV
Timer input
Timer PV
Completion
Flag
N: Timer number
S: Set value
TMUHX(557)
N
S
TTIM(087)
N
S
Timer
input
Reset
input
N: Timer number
S: Set value
SV
Timer input
Timer PV
Completion
Flag
Reset input
PV maintained.
Timing resumes.
TTIM(087)/TTIMX(555) operates an incrementing timer with units of
0.1-s. The setting range for the set value (SV) is 0 to 999.9 s for
BCD and 0 to 6,553.5 s for binary (decimal or hexadecimal).
TTIMX(555)
N
S
N: Timer number
S: Set value
Reset
input
Timer
input
TIML(542)
D1
D2
S
D1: Completion
Flag
D2: PV word
S: SV word
SV
Timer input
Timer PV
Completion Flag
(Bit 00 of D1)
TIML(542)/TIMLX(553) operates a decrementing timer with units of
0.1-s that can time up to approx. 115 days for BCD and 49,710 days
for binary (decimal or hexadecimal).
TIMLX(553)
D1
D2
S
D1: Completion
Flag
D2: PV word
S: SV word
