837
3. Instructions
CS/CJ/NSJ Series Instructions Reference Manual (W474)
Basic I/O Unit Instructions
3
NCDTR
Related Auxiliary Area Words and Bits

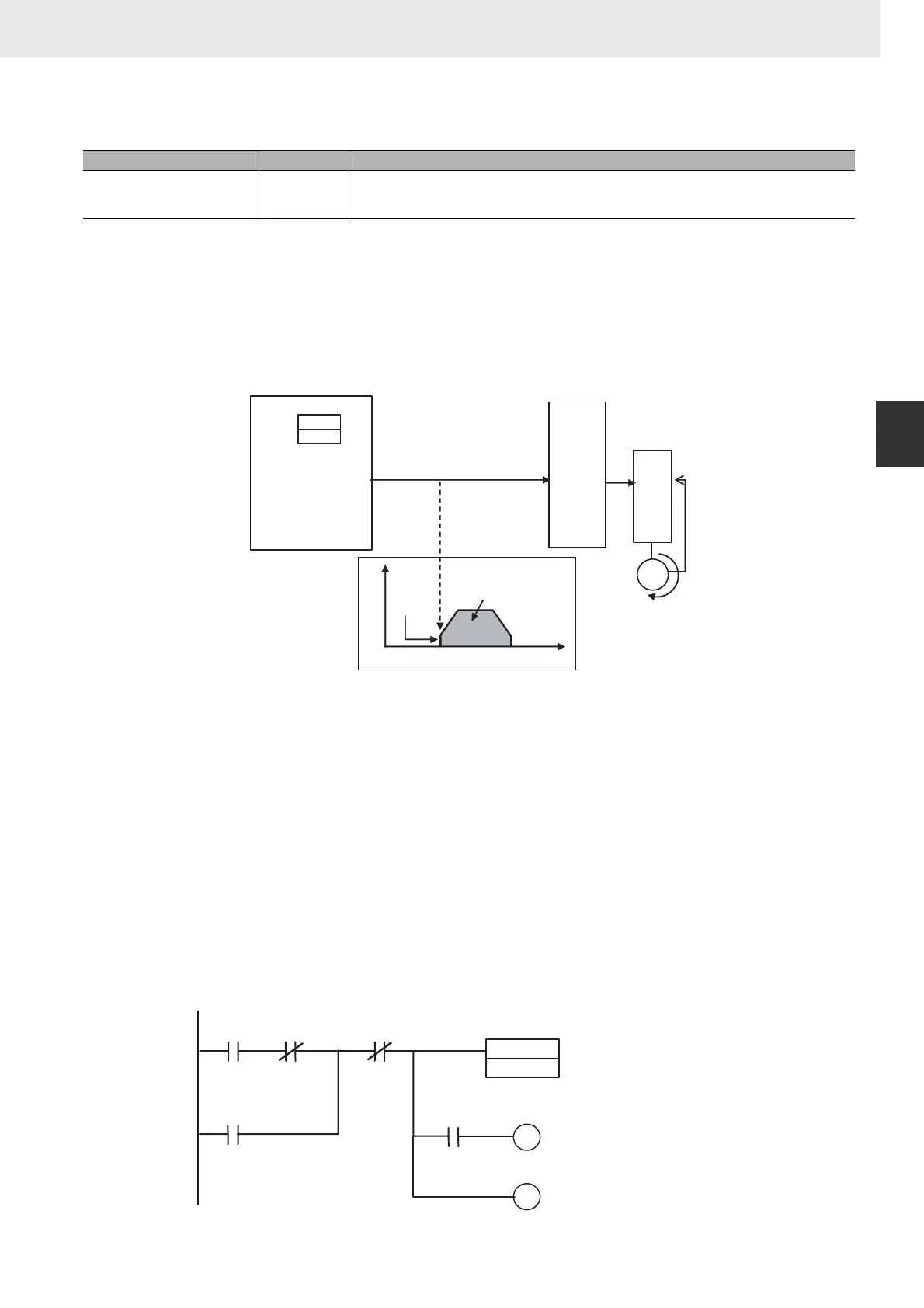

Function
NCDTR(219) starts a sequence that is waiting for a command input from NCDTR(219) for the task
specified in C for Memory Operation in the Position Control Unit specified in C+1.
The Equals Flag in the Conditions Flags is turned ON if the sequence is started normally in the Position
Control Unit.
The following Position Control Units can be specified.
CJ1W-NC281, CJ1W-NC481, CJ1W-NC881, CJ1W-NCF81, CJ1W-NC482, and CJ1W-NC882 (CPU
Bus Units)
Refer to the CJ-series Position Control Unit Operation Manual (Cat. No. W426) for specifications on
Memory Operation.
Precaution
• The Position Control Unit can execute only one command for one NCDTR(219) instruction each
control cycle.
If NCDTR(219) is executed continuously for different tasks, the Position Control Unit may not be able
to accept all of them. (In this case, the Equals Flag will be OFF.)
Use the Equals Flag to create a self-maintaining program, as shown below, so that NCDTR(219) will
not be executed until the Equals Flag turns ON, as shown below.
• NCDTR(219) will not be executed when the Position Control Unit is being initialized.
Use the following Unit Initializing Flags in NC conditions as execution conditions for NCDTR(219).
(The Unit Initializing Flags are A302.00 to A302.15 for CPU Bus Units.)
Name Addresses Operation
CPU Bus Unit Initializing Flags A302.00 to
A302.15
Turns ON when the CPU Bus Unit is being initialized.
OFF: Not initializing.
ON: Initializing.
C
C+1
CJ2M CPU Unit
Speed
Task N
Unit m
On-standby sequence in
Memory Operation
CJ1W-NC@81/NC@82 Position Control Unit
(CPU Bus Unit with unit number m)
Servo
Drive
Commu-
nications
Task N
Sequence that was on standby
Time
Waiting for
command from
NCDTR(219)
A
B
=
B
A
NCDTR
C
Initializing Flag
To Next Page
