Manipulating Files Section 5-2
Application
This function can be used to back up data for the entire PLC, including the
CPU Unit, DeviceNet Units, Serial Communications Units/Boards, etc. It can
also be used for Unit replacement.
Unit/Board Backup Files
The data from each Unit and Board is stored in the Memory Card using the
following file names: BACKUP@@.PRM. Here, “@@” is the unit address of the
Unit or Board in hexadecimal.
Note Unit addresses are as follows:
CPU Bus Units: Unit number + 10 hex
Special I/O Units: Unit number + 20 hex
Inner Board: E1 Hex
These files are also used when reading from the Memory Card or comparing
Memory Card data.
Applicable Units and Boards
For Unit and Board data to be backed up, the Unit/Board must also support
the backup function. Refer to the operation manual for the Unit/Board for
details on support.

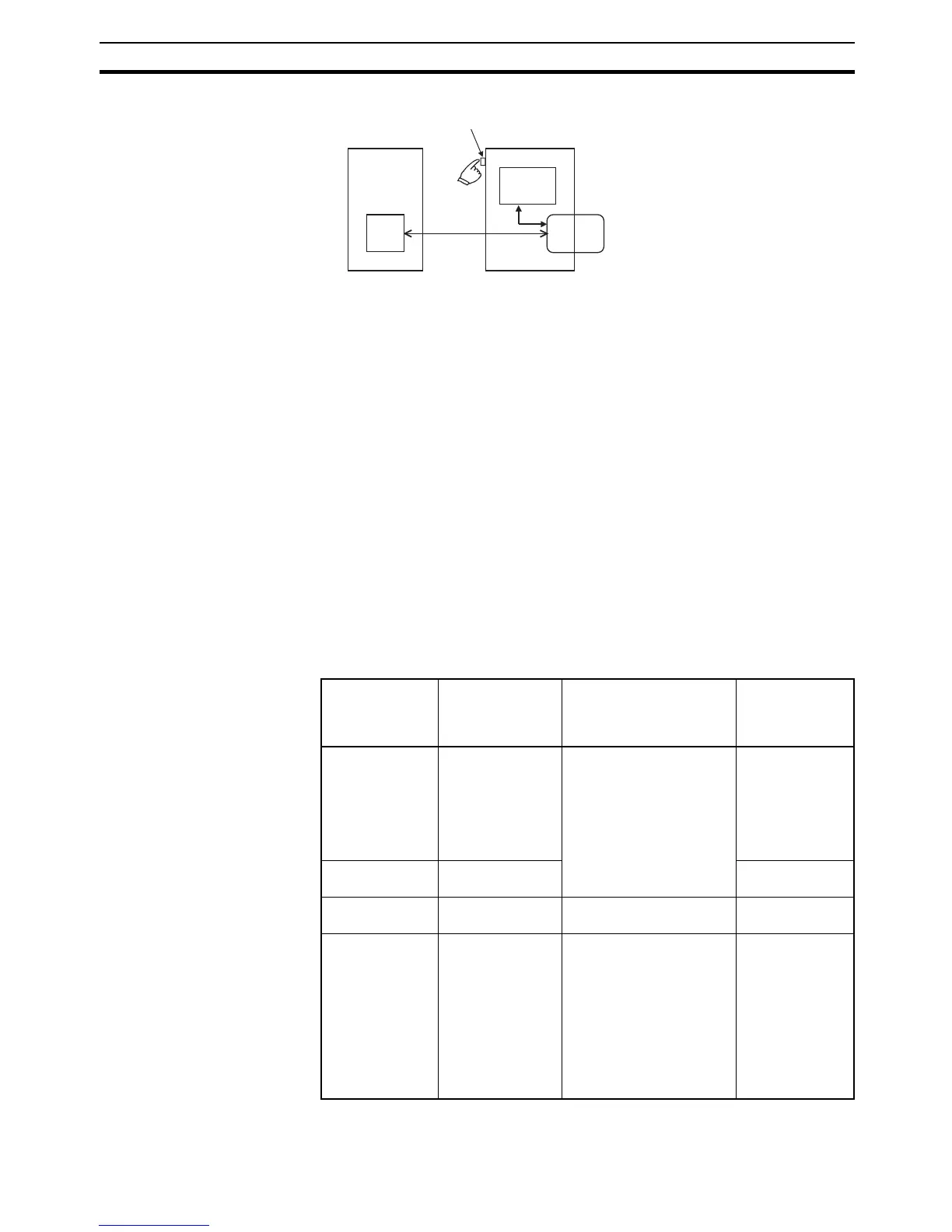

DeviceNet Unit or other
specific Unit/Board
Write
Read
Compare
Memory Card power
supply switch
CS1-H, CJ1-H, CJ1M, or CS1D CPU Unit
Memory Card
All data
Simple
backup
data
Unit/Board Model numbers Data backed up for
simple backup when
used with CS1-H/CJ1-H
CPU Unit
Data capacity
used in Memory
Card for simple
backup
Serial Communi-
cations Units
CS1W-SCU21-V1
CS1W-SCU31-V1
CJ1W-SCU21
CJ1W-SCU41
CJ1W-SCU21-V1
CJ1W-SCU31-V1
CJ1W-SCU41-V1
Protocol macro data
(Including both standard
system protocols and
user-defined protocols
from the flash memory in
the Unit or Board)
129 Kbytes
Serial Communi-
cations Boards
CS1W-SCB21-V1
CS1W-SCB41-V1
129 Kbytes
FL-net Units CS1W-FLN22
CJ1W-FLN22
Data link tables 1.3 Kbytes
DeviceNet Units CJ1W-DRM21-V1
CJ1W-DRM21
Device parameters (all
data in EEPROM in the
Unit)
(Although this is the same
data as is backed up from
the Memory Card backup
function supported by the
Unit or the DeviceNet Con-
figuration (Ver. 2.0), there
is no file compatibility.)
7 Kbytes
