Serial Communications Section 6-3
When using a standard serial PLC Link, select the Standard Option in the
Communications Settings Area.
The following table shows the corresponding settings when using a Program-
ming Console.
Note Automatically allocates 10 words (A hex) when the default setting of 0 hex is
used.
Settings at the Polled Unit

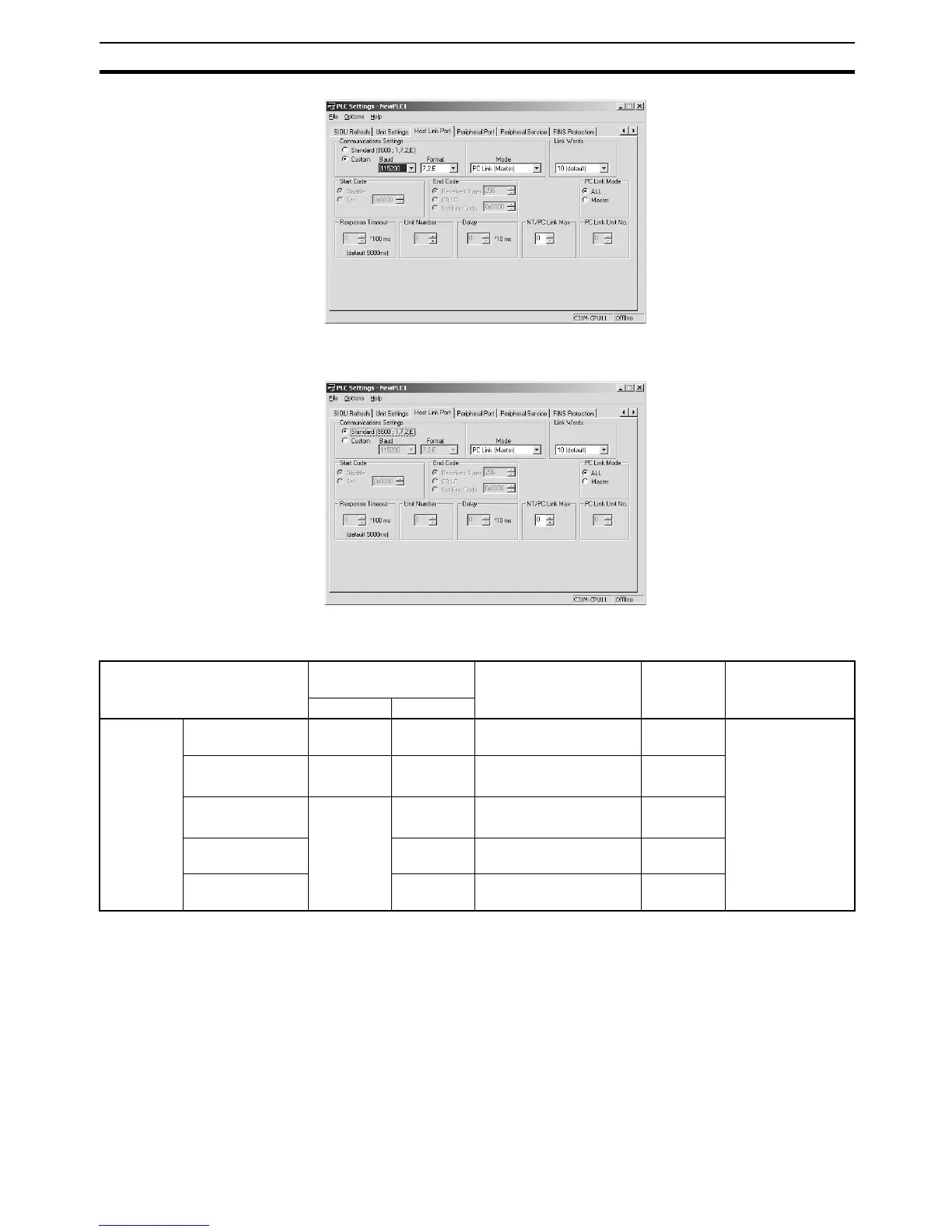

When using a high-speed serial PLC Link, select the Custom Option in the
Communications Settings Area and set the baud rate to 115,200 bps.
Item Programming Console
address
Set value Default Refresh timing
Word Bit
RS-232C
port setting
Serial communica-
tions mode
+160 11 to 08 8 hex: Serial PLC Links
Polling Unit
0 hex Every cycle
Port baud rate +161 07 to 00 00 to 09 hex: Standard
0A hex: High-speed
00 hex
Link method +166 15 0: Complete links
1: Polling Unit links
0
Number of link
words
07 to 04 1 to A hex 0 hex
(See note.)
Highest unit num-
ber
03 to 00 0 to 7 hex 0 hex
