Omron CJ2M-CPU Series User Manual

7-21
7 High-speed Counters
CJ2M CPU Unit Pulse I/O Module User’s Manual
7-3 High-speed Counter Interrupts
7
7-3-1 Overview
7-3 High-speed Counter Interrupts

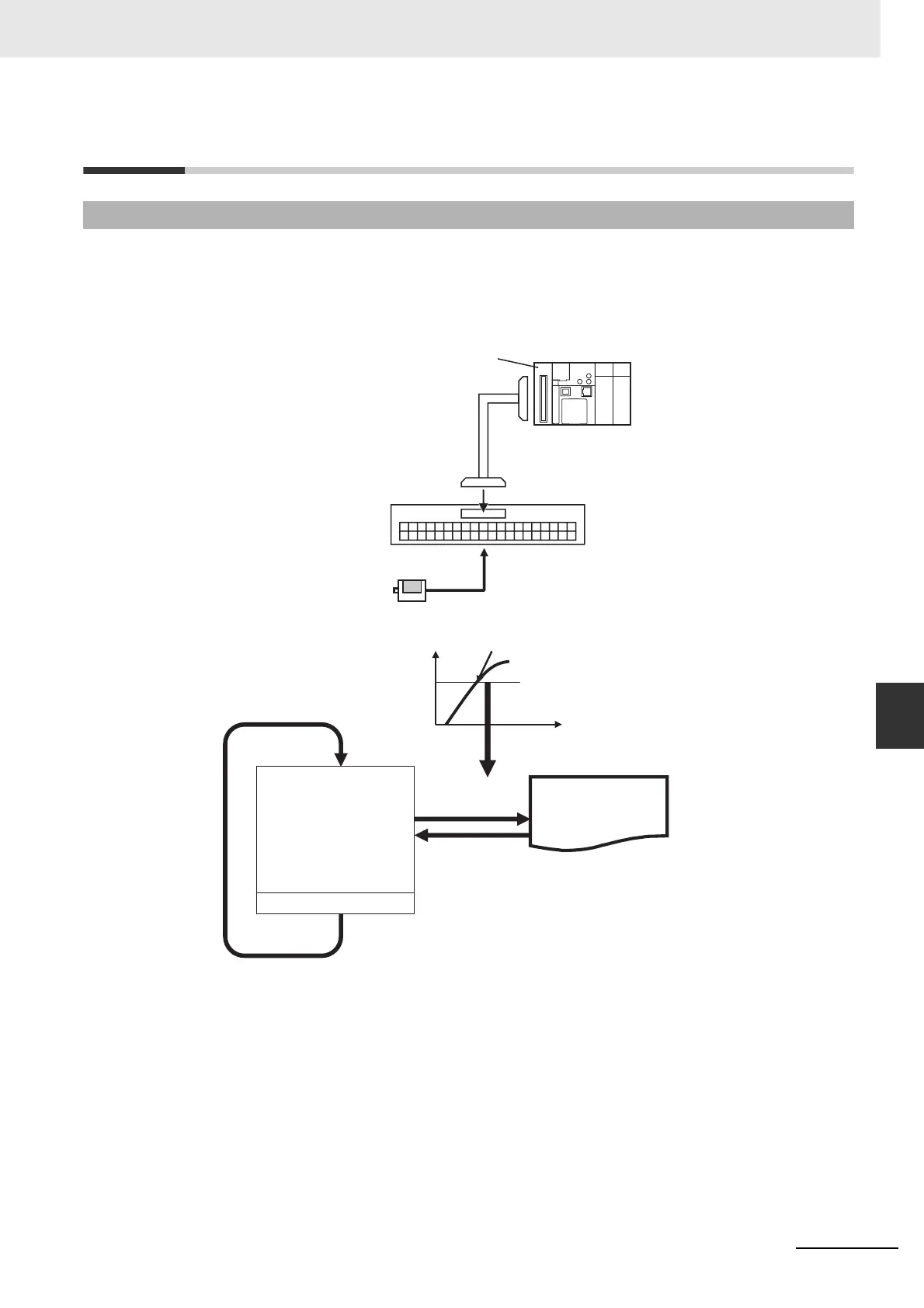

A high-speed counter interrupt counts input pulses with the built-in high-speed counter and executes an
interrupt task when the count reaches the preset value or falls within a preset range (target-value or
range comparison). An interrupt task between 0 and 255 can be allocated with the CTBL(882) instruc-
tion.
7-3-1 Overview
END
END
Rotary Encoder
CJ2M CPU UnitPulse I/O
Module
Connecting Cable
Connector-Terminal
Block Conversion Unit
Cycle
Present value
Present value matches set target value
Time
Interrupt task
Ladder program
Interrupt occurs.
Cyclic task
(ladder program)
I/O refresh

Omron CJ2M-CPU Series Specifications

General

Power Supply	24 VDC
Number of Instructions	Over 400 instructions
Model	CJ2M-CPU11, CJ2M-CPU12, CJ2M-CPU13, CJ2M-CPU14, CJ2M-CPU15
Program Capacity	5K steps to 60K steps
I/O Capacity	Up to 2, 560 points
Communication Ports	Ethernet, USB, RS-232C
Execution Time	0.04 µs per basic instruction
Operating Temperature	0 to 55°C
Position Control	Supported
High-speed Counter	100 kHz max.
Pulse Output	100 kHz max.
Maximum Units	40 units
Storage Temperature	-20 to 75°C
Interrupt Inputs	Supported
