2 I/O Application Procedures and Function Allocations
2-8
CJ2M CPU Unit Pulse I/O Module User’s Manual
2-3 PLC Setup

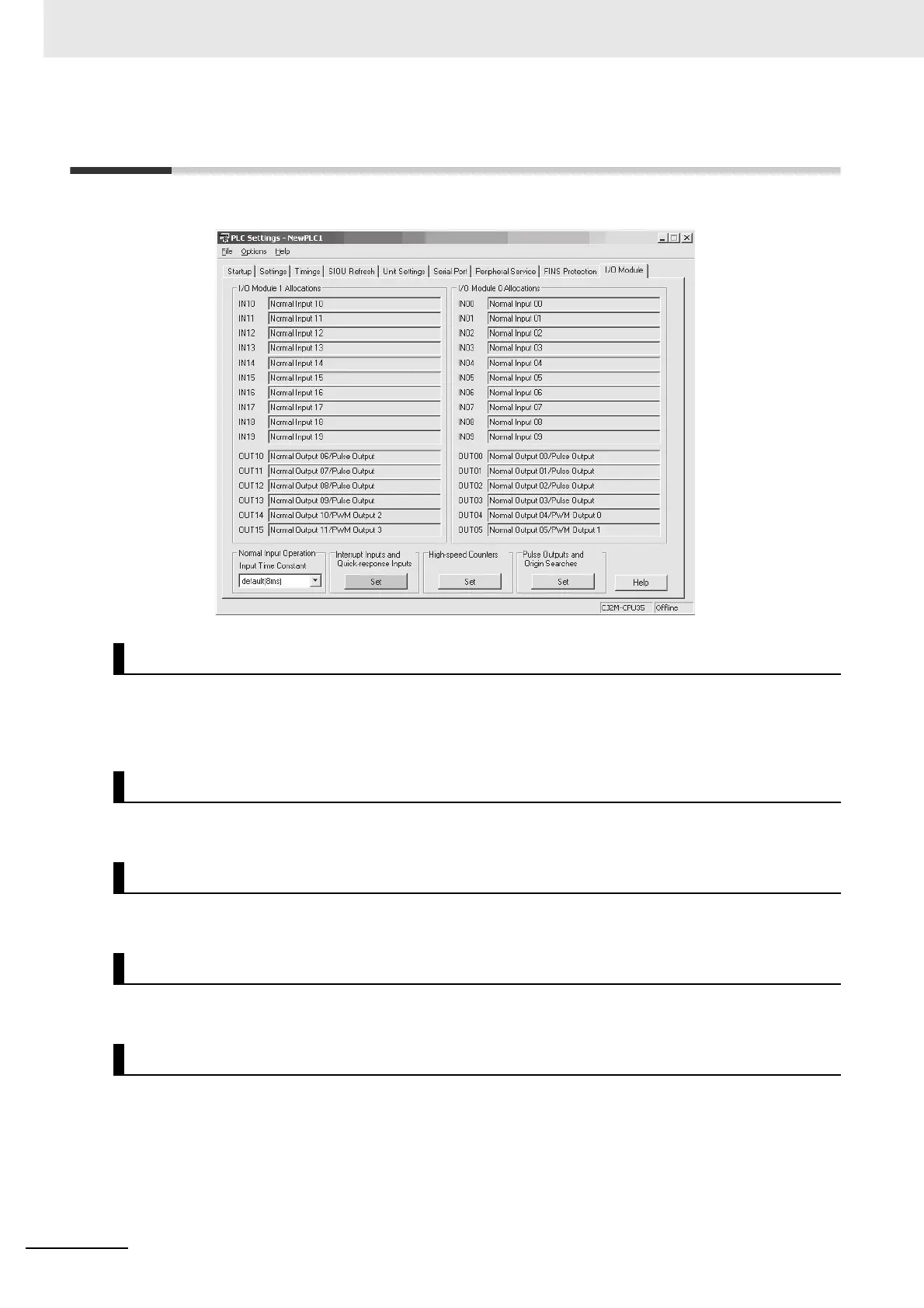

The following dialog box will be displayed when the I/O Module Tab Page is opened in the PLC Setup.
The current settings of the I/O terminals on the Pulse I/O Modules are displayed here. Settings made
on the dialog boxes that are accessed from this dialog box are shown here so that you can see the cur-
rent I/O terminal functions settings.
The input constant is set here.
The interrupt inputs and quick-response inputs are set here.
The functions and operating parameters of the high-speed counters are set here.
The functions and operating parameters of pulse outputs and the origin search function are set here.
I/O Module 0 Allocations and I/O Module 1 Allocations
Normal Input Operation Setting
Interrupt Inputs and Quick-response Inputs
High-speed Counters
Pulse Outputs and Origin Searches

Omron CJ2M-CPU Series Specifications

General

Power Supply	24 VDC
Number of Instructions	Over 400 instructions
Model	CJ2M-CPU11, CJ2M-CPU12, CJ2M-CPU13, CJ2M-CPU14, CJ2M-CPU15
Program Capacity	5K steps to 60K steps
I/O Capacity	Up to 2, 560 points
Communication Ports	Ethernet, USB, RS-232C
Execution Time	0.04 µs per basic instruction
Operating Temperature	0 to 55°C
Position Control	Supported
High-speed Counter	100 kHz max.
Pulse Output	100 kHz max.
Maximum Units	40 units
Storage Temperature	-20 to 75°C
Interrupt Inputs	Supported
