Omron CJ2M-CPU Series User Manual

5 Quick-response Inputs
5-2
CJ2M CPU Unit Pulse I/O Module User’s Manual

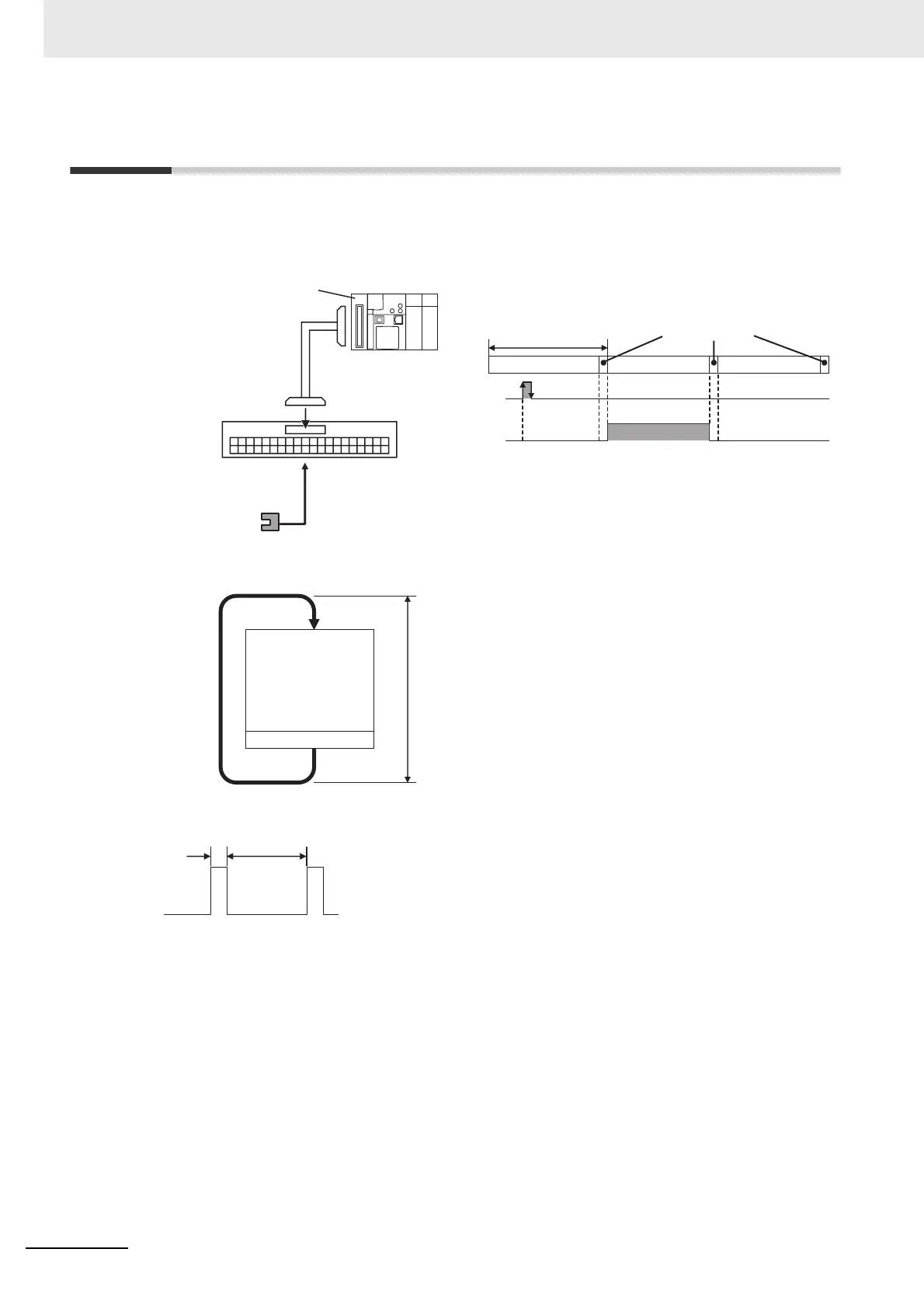

5-1 Overview
By setting an input on the Pulse I/O Module to quick-response input operation, inputs with signal widths
as small as 30 µs can be read with certainty regardless of the cycle time. Use the quick-response inputs
to read signals shorter than the cycle time, such as inputs from photomicrosensors.
The pulse widths of quick-response input signals must meet the following conditions.
END
Pulse signal from photomicrosensor or other device
CJ2M CPU UnitPulse I/O Module
Connecting Cable
Cycle time
Can read ON signals
shorter than this time.
Cycle time
Pulse signal
Input bit
ON for one scan
in the next cycle
I/O refresh
I/O refresh
Cyclic task
(ladder program)
Connector-
Terminal Block
Conversion Unit
150 µs min.
30 µs min.
ON
OFF

Omron CJ2M-CPU Series Specifications

General

Power Supply	24 VDC
Number of Instructions	Over 400 instructions
Model	CJ2M-CPU11, CJ2M-CPU12, CJ2M-CPU13, CJ2M-CPU14, CJ2M-CPU15
Program Capacity	5K steps to 60K steps
I/O Capacity	Up to 2, 560 points
Communication Ports	Ethernet, USB, RS-232C
Execution Time	0.04 µs per basic instruction
Operating Temperature	0 to 55°C
Position Control	Supported
High-speed Counter	100 kHz max.
Pulse Output	100 kHz max.
Maximum Units	40 units
Storage Temperature	-20 to 75°C
Interrupt Inputs	Supported
