Omron CJ2M-CPU Series User Manual

8 Pulse Outputs
8-40
CJ2M CPU Unit Pulse I/O Module User’s Manual
To perform an origin search or to use a limit input signal as an input to a function other than origin
search, set the parameters on the Pulse Output and Origin Search Detailed Settings Dialog Box that is
accessed from the I/O Module Tab Page in the PLC Setup.
8-5-2 Setting Procedure
1

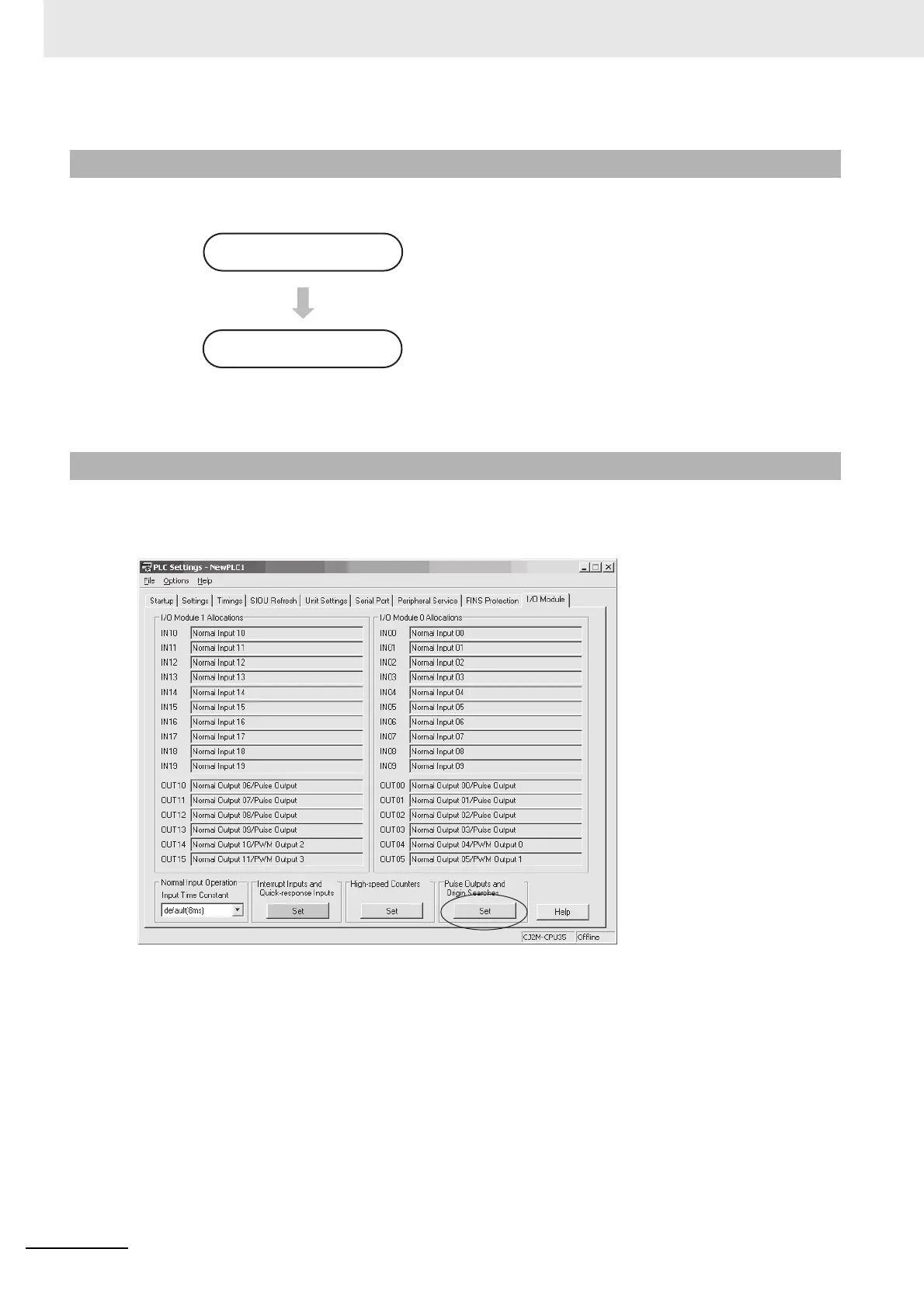

• Set the origin search parameters in the
Pulse Output and Origin Search Detailed
Settings Dialog Box that is accessed from
the I/O Module Tab Page of the PLC Setup
using the CX-Programmer.
2
• Set pulse output ports 0 to 3.
• Output the status of the limit signal inputs
and positioning completed signal to Auxiliary
Area bits.
• Execute ORG(889). Specify an origin
search.
8-5-3 PLC Setup
PLC Setup
Create ladder program.

Omron CJ2M-CPU Series Specifications

General

Power Supply	24 VDC
Number of Instructions	Over 400 instructions
Model	CJ2M-CPU11, CJ2M-CPU12, CJ2M-CPU13, CJ2M-CPU14, CJ2M-CPU15
Program Capacity	5K steps to 60K steps
I/O Capacity	Up to 2, 560 points
Communication Ports	Ethernet, USB, RS-232C
Execution Time	0.04 µs per basic instruction
Operating Temperature	0 to 55°C
Position Control	Supported
High-speed Counter	100 kHz max.
Pulse Output	100 kHz max.
Maximum Units	40 units
Storage Temperature	-20 to 75°C
Interrupt Inputs	Supported
