Omron CJ2M-CPU Series User Manual

8 Pulse Outputs
8-26
CJ2M CPU Unit Pulse I/O Module User’s Manual

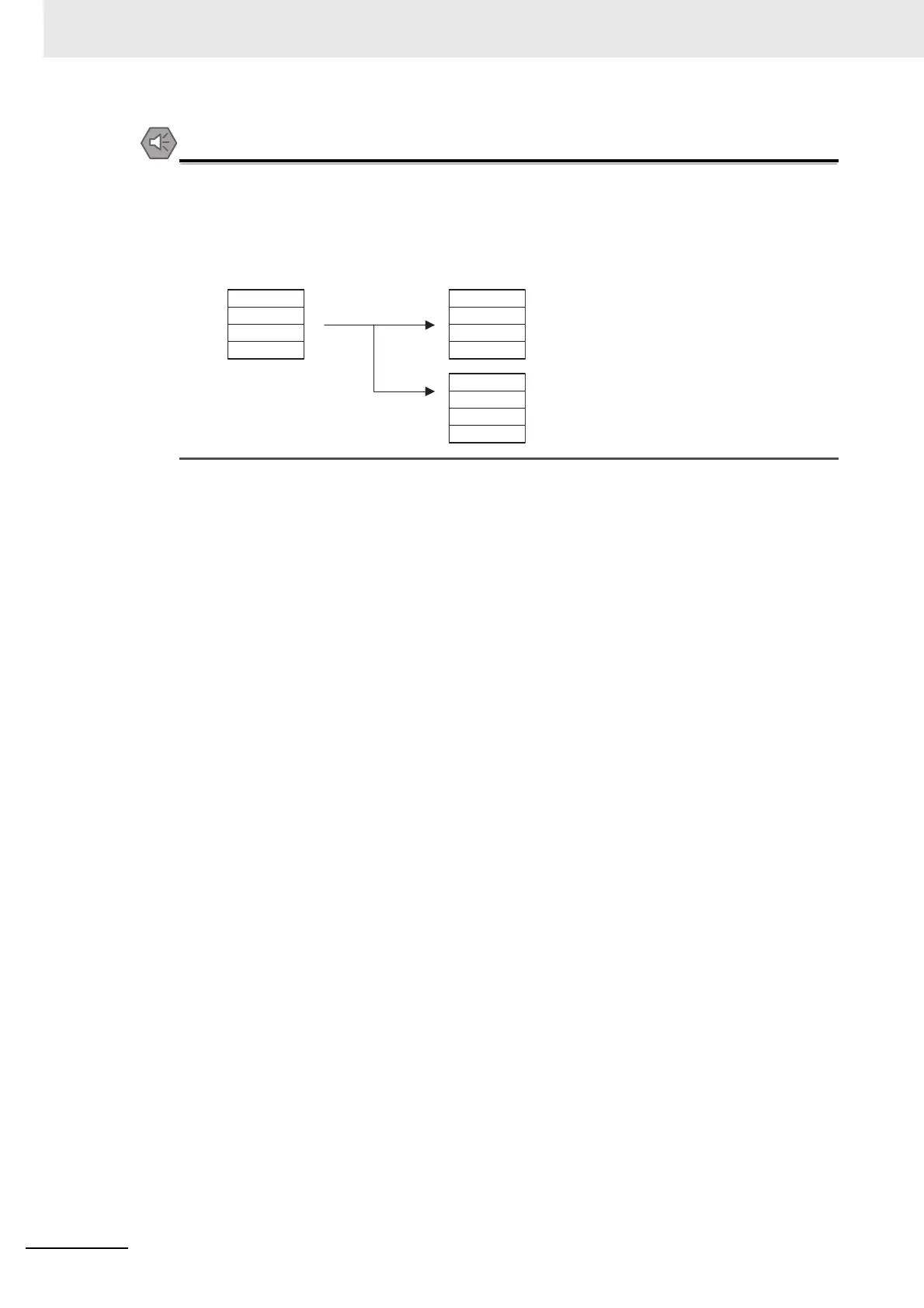

Precautions for Safe Use
When using the BIT COUNTER (BCNT(067)), BLOCK SET (BSET(071)), and BLOCK TRANS-
FER (XFER(070)) in the ladder program, do not specify more than 99 words for each instruction.
If more than 99 words must be used, use more than one instruction. Pulse output is not possible
during execution of these instructions. If more than 99 words are specified for one of them, pulse
output will not be predicable and may stop momentarily.
&120
D0
D1000
XFER
&60
D0
D1000
XFER
&60
D60
D1060
XFER
Processing separated.
Transferring 120 Words of Data Started at D0 to Words Starting at D1000

Omron CJ2M-CPU Series Specifications

General

Power Supply	24 VDC
Number of Instructions	Over 400 instructions
Model	CJ2M-CPU11, CJ2M-CPU12, CJ2M-CPU13, CJ2M-CPU14, CJ2M-CPU15
Program Capacity	5K steps to 60K steps
I/O Capacity	Up to 2, 560 points
Communication Ports	Ethernet, USB, RS-232C
Execution Time	0.04 µs per basic instruction
Operating Temperature	0 to 55°C
Position Control	Supported
High-speed Counter	100 kHz max.
Pulse Output	100 kHz max.
Maximum Units	40 units
Storage Temperature	-20 to 75°C
Interrupt Inputs	Supported
