9 PWM Outputs
9-6
CJ2M CPU Unit Pulse I/O Module User’s Manual
z PLC Setup
There are no settings that need to be made in the PLC Setup.
z DM Area Settings
• PWM(891) Operand Settings (D0 and D1)

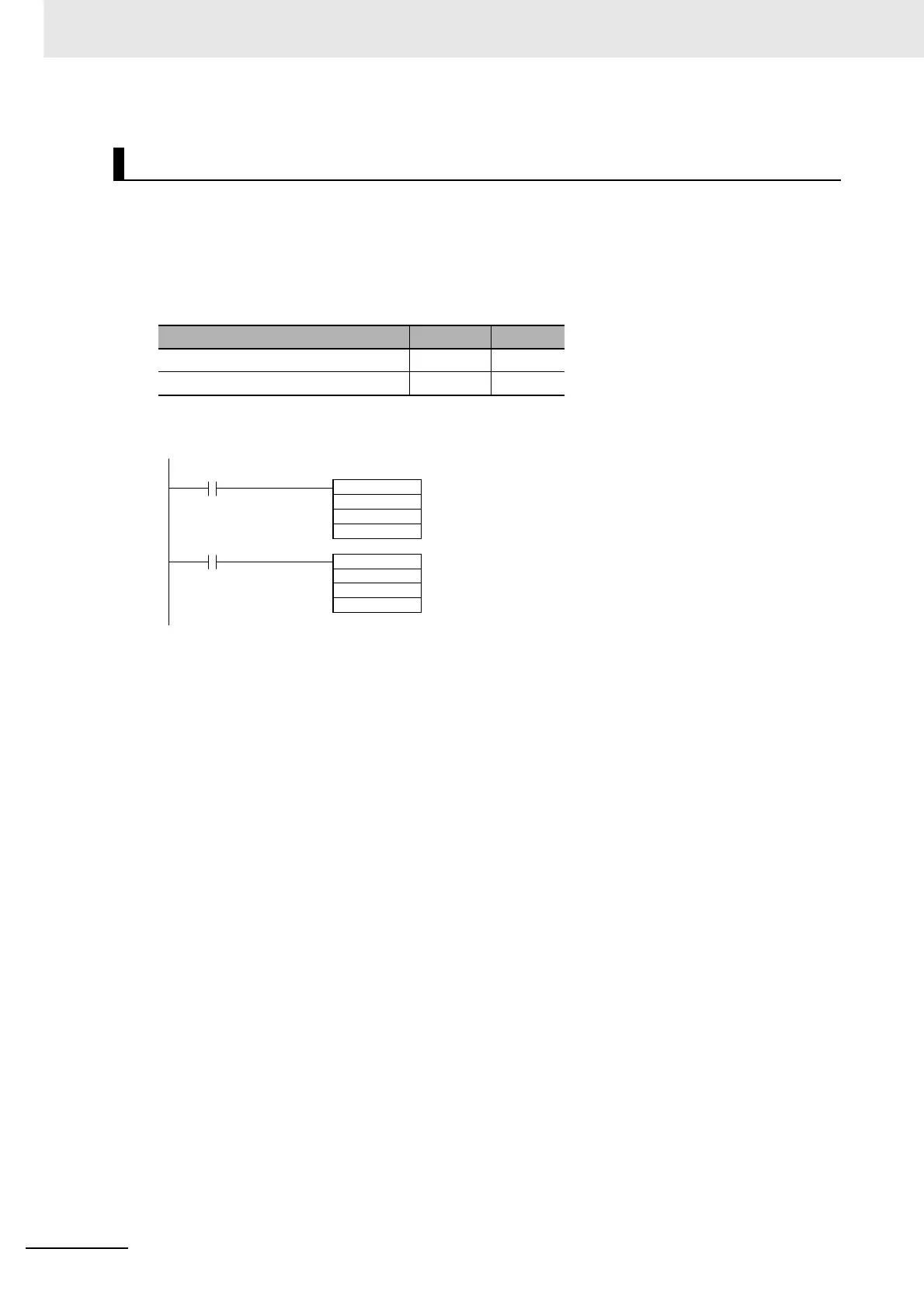

z Ladder Diagram
Preparations
Settings Word Data
Frequency: 2,000.0 Hz D0 #4E20
Duty ratio: 40.0% D1 #0190
@PWM
#1000
D0
D1
2960.00
#1000
#0003
D10
2960.01
@INI
Start input
Stop input
←
PWM output 0 (duty ratio: in increments of 0.1%, frequency: in increments of 0.1 Hz)
←Frequency setting
←Duty ratio
←PWM output 0
←Stops pulse output
←Not used.
