153
Appendix

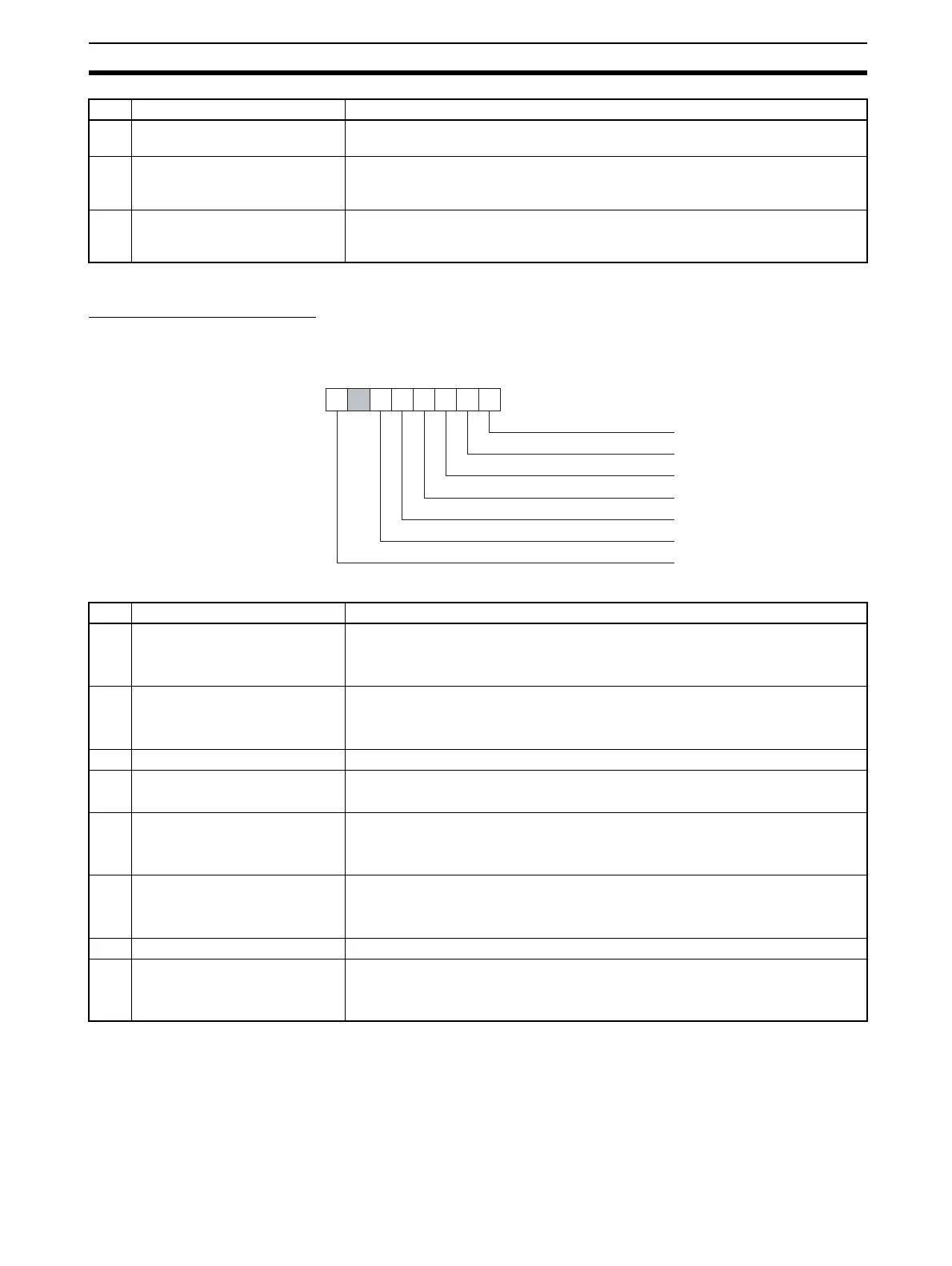

Slave Diagnostics Byte 2
A layout of Byte 2 is shown below. This byte is mapped to the low-byte of Word D.
05 Diag.Invalid_Slave_Response This bit is set by the Master Unit if the slave has returned an invalid response to a
Master request message. The slave station will set this bit to 0.
06 Diag.Prm_Fault Set by the slave station, this bit indicates that the last received parameter data
from the Master Unit have been rejected. The parameter data in the slave station
differ from the parameter sent by the Master Unit.
07 Diag.Master_Lock This bit indicates that the slave station has been parameterized by another mas-
ter. The bit is set by the Master Unit, if the address in byte 4 differs from 255 and
from the Master Unit’s own address. The slave station sets this bit to zero.
Bit Name Description
00 Diag.Prm_Req
This bit is set by the slave station and indicates that it needs to be (re-)aparame-
terized. The slave station is not in Data_Exchange with the Master Unit. The bit
remains on as long as it has not been parameterized successfully.
01 Diag.Stat_Diag
This bit indicates static diagnostics at the slave station. The Master unit will
repeatedly request diagnostics data. As long as this bit is set, Data_Exchange
with the Master Unit is not being performed.
02 Reserved This bit is reserved and always set to 1 by the slave station.
03 Diag.WD_On
If the watchdog has been enabled at the slave station (through the appropriate
setting in the parameterization message) this bit will be set.
04 Diag.Freeze_Mode
If the slave station has been set to the Freeze mode, using the global command,
this bit will be set to on. The bit will be set to off, if an Unfreeze command has
been received.
05 Diag.Sync_Mode
If the slave station has been set to the Sync mode, using the global command,
this bit will be set to on. The bit will be set to off, if an Unsync command has been
received.
06 Reserved This bit is reserved.
07 Diag.Deactivated
This bit is set by the Master Unit, indicating that the slave station has been dis-
abled (i.e. using the STOP FINS command). The slave station is allocated to the
Master Unit, but removed from cyclic processing.
Bit Name Description
Byte 2
Diag.Deactivated
Diag.Sync_Mode
Diag.Freeze_Mode
Diag.WD_On
Diag.Stat_Diag
Diag.Prm_Req
76543210
Reserved
