17
CX-Profibus Configurator
Section 1-4
• The monitoring DTM will provide a diagnostics interface to the user,
allowing him to check the Slave’s status. This DTM obtains the necessary
information from the PROFIBUS-DP Master Unit’s monitoring DTM.
Downloading the
configuration
After setting up the configuration, it must be downloaded to the PROFIBUS-
DP Master Unit. The type of serial connection to use for downloading,
depends on the Unit:
• CS1W-PRM21/CJ1W-PRM21: Connection to the Unit is achieved
through the serial port of the PLC CPU, using CX-Server. Cox-Server
also allows routing the download through multiple systems, if supported
by these systems. The CS1W-PRM21/CJ1W-PRM21 Units do not sup-
port message routing.

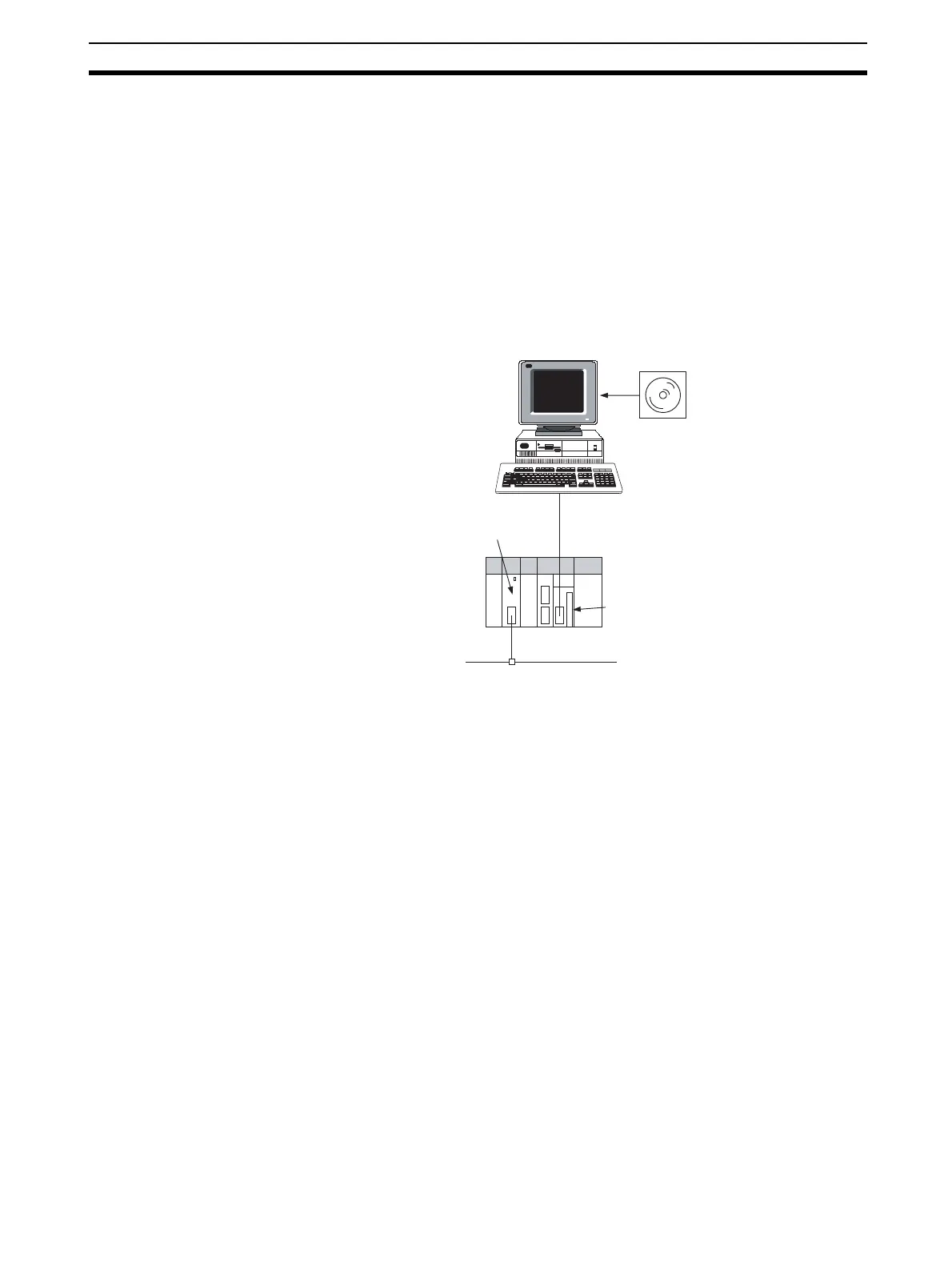

Cx-Profibus
Configurato
OMRON
SYSMAC CS1G
PROGRAMMABLE
CONTROLLER
CS/CJ-series
PROFIBUS-DP
Master Unit
PROFIBUS Network
COM Port on PC
Peripheral Bus or
Host LINK
Peripheral or RS232C
Port of CPU Unit
Serial connection to CS/CJ-series
PROFIBUS-DP Master Unit
To Next Page
