CHAPTER 5 PARAMETERS
E5CK
5–32
Control output 1
assignment
Control output 2
assignment

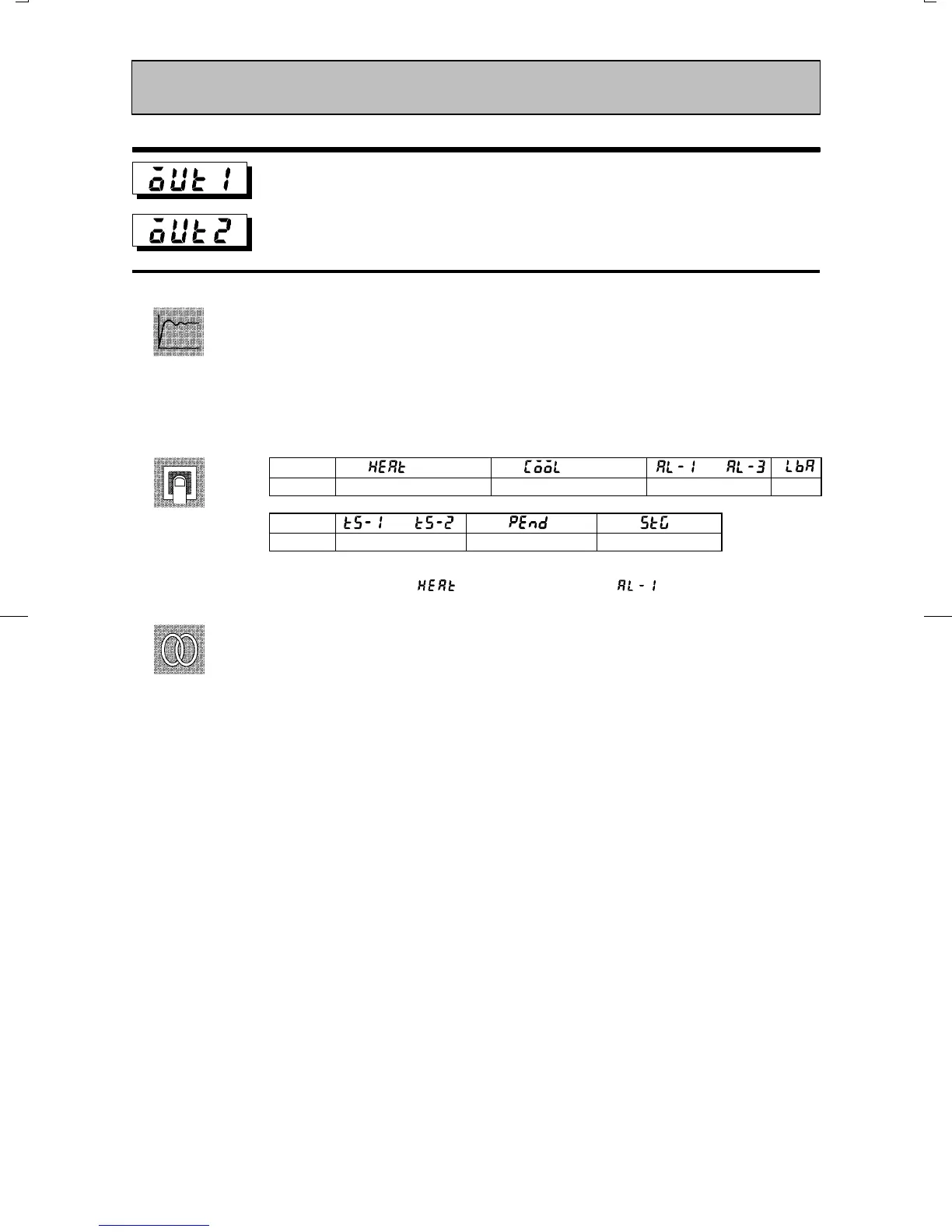

Ă• Assigns the output functions to either of control output 1 or 2.
Ă• The following 10 output functions can be assigned as outputs:
Control output (heat), Control output (cool), Alarms 1 to 3, LBA, Time signals 1 and
2, Program end and Stage output
Ă• When the output function assigned to control output 1 or control output 2 is ON, the
OUT1" or OUT2" LED lights.
Symbol
to
Function
Control output (heat) Control output (cool)
Alarms 1 to 3 LBA
Symbol
to
Function
Time signals 1 to 2
Program end
Stage output
Default :
Control output 1"= [
], Control output 2"= [ ].
ĂRelated description
3.3 Setting Output Specifications (page 3Ć7)
ĂRelated parameters
Ă• AlarmĆrelated parameters
Ă• Heating and cooling related parameter
Time signal 1 enabled step" Time signal 2 enabled step" Time signal 1 to 2 ON
time" Time signal 1 to 2 OFF time" (program mode)
LBA detection time" (level 2 mode)
Setup Mode
Function
Setting
See
