CHAPTER 5 PARAMETERS
E5GN
5–8

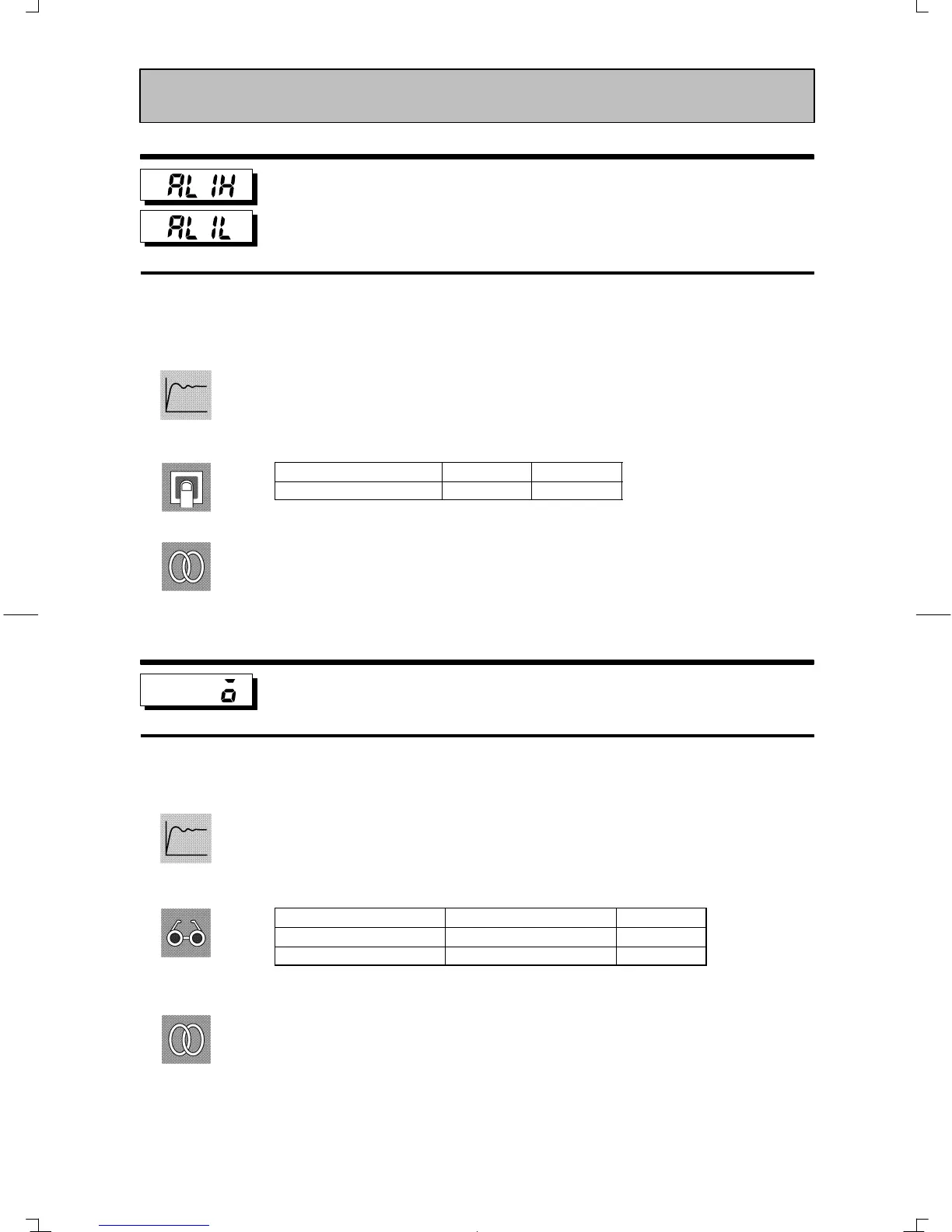

Upper-limit alarm value 1
Lower-limit alarm value 1
Alarm 1 type must be set to upper and lower
limits, upper and lower limit range, or upper-
and lower-limit alarm with standby sequence.
This parameter independently sets the upperĆ and lowerĆlimit alarm values when the mode for
setting the upper and lower limits is selected for alarm 1 type (initial setting level).
Ă• This parameter sets the upper and lower limit values of alarm 1.
Ă• During temperature input, the decimal point position is dependent on the currently
selected sensor, and during analog input it is dependent on the decimal point"
parameter setting.
Setting Range Unit Default
-1999 to 9999 EU 0
FĂRelated parameters
Alarm 1 type" (initial setting level)
Standby sequence reset method" Alarm 1 open in alarm" Alarm 1 hysteresis"
Alarm latch" (advanced function setting level)
MV monitor (OUT1)
Manipulated variable display must be set to
“ON”.
This parameter is for monitoring the manipulated variable during operation.
Ă• This parameter cannot be set.
Ă• The manipulated variable on the control output 1 side is monitored.
Ă• Default is OFF" and the manipulated variable is not displayed.
Control Monitor Range Unit
Standard 0.0 to 100.0 %
Heating and cooling 0.0 to 100.0 %
FĂRelated parameter
Manipulated variable display" (advanced setting level)
Operation Level
Function
Setting
See
Function
Monitor
See
To Next Page
