9.3.2 INSTALLATION OF MULTIPLE SYSTEMS
When two or more 4700 systems are mounted in close proximity and in alignment with each other,
precautions should be taken to avoid one curtain interfering with another. This can be corrected by
mounting the transmitters and receivers back-to-back or stacked. See Figure 9-7 for reference.
Machine 1
T
Receiver T
Receiver
rans mitter
rans mitter
PREFERRED INSTALLATION
An alternating receiver to
trans mitter orientation
is s ugges ted.
Trans mitter
Receiver
Trans mitter
Receiver
Machine 1 Machine 2
PREFERRED INSTALLATION
The receivers are mounted
back to back.
Machine 1
Trans mitter
Trans mitter
Receiver
Machine 2
Receiver
NOT RECOMMENDED INSTALLATION
This arrangement may be subject
to interference between the two
light curtains .

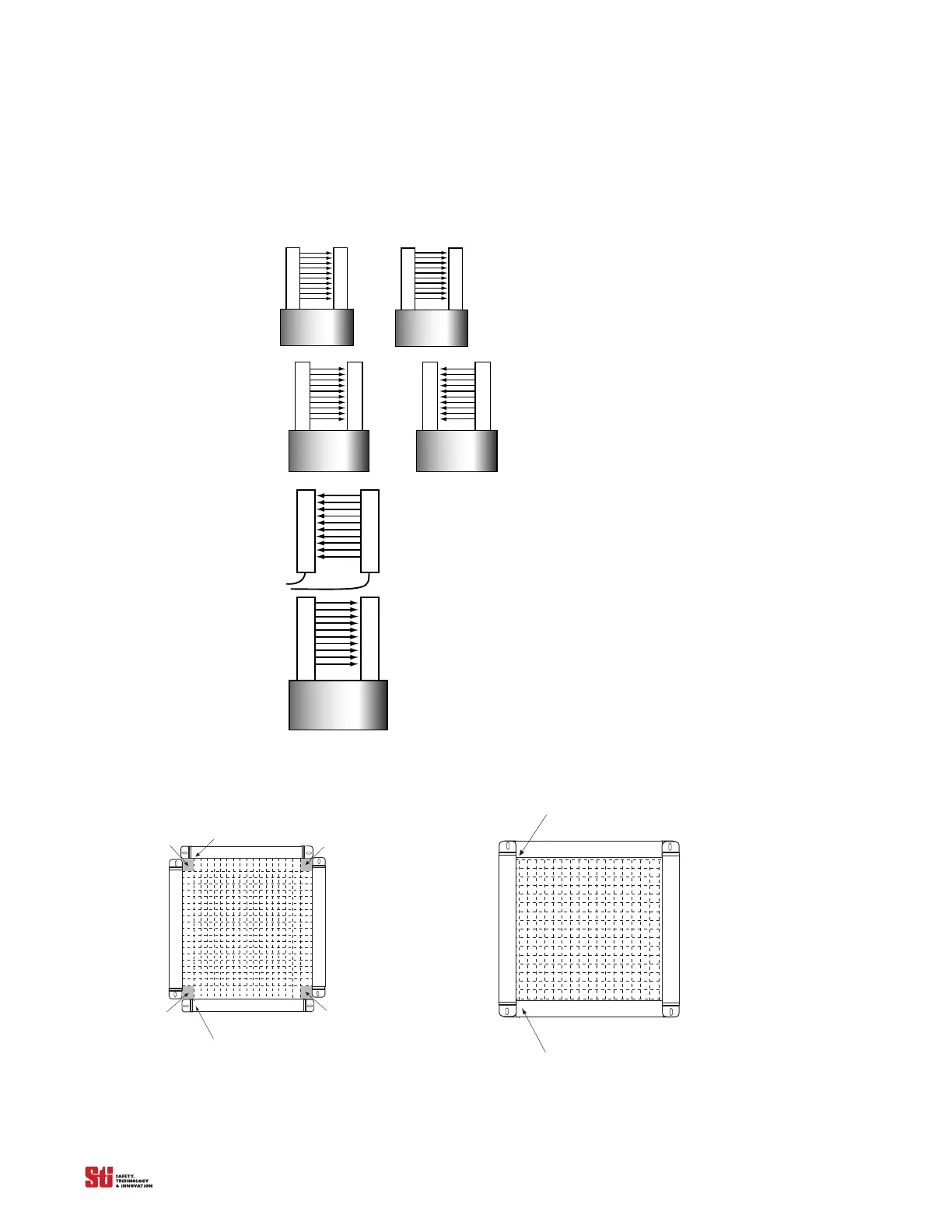

Figure 9-7 Multiple Light Curtain Installation Configurations
Beam starts here
Beam starts here
Corner access
and grey
shaded area
needs
mechanical
guarding.
Corner access
and grey
shaded area
needs
mechanical
guarding.
Corner access
and grey
shaded area
needs
mechanical
guarding.
Corner access
and grey
shaded area
needs
mechanical
guarding.
Beam starts here
Beam starts here
STI recommends overlapping the light curtains in
order to have better coverage.
Figure 9-8 Mounting Orientation
