14.4 M ICROSAFE JOINTED MCJ4700 SERIES
14.4.1 MCJ4700 SEGMENT DIMENSIONS
23. 1 [0. 91]
END SEGMENT, "C"
FIRST SEGMENT, "A"
MID SEGMENT, "B"
VIEW
SIDE
39.4 [1.55]
30. 3 [1. 19]
30.0 [1.18]
"B"
"C"
25.9 [1.02]
VIEW
FRONT
39. 5 [1. 55]
28.0 [1.10]
"A"
41. 0 [1. 61]
27. 2 [1. 07]
14.8 [0.58]
26.0 [1.02]
41.4 [1.63]
55.0 [2.17]
Dimensions in mm/inches

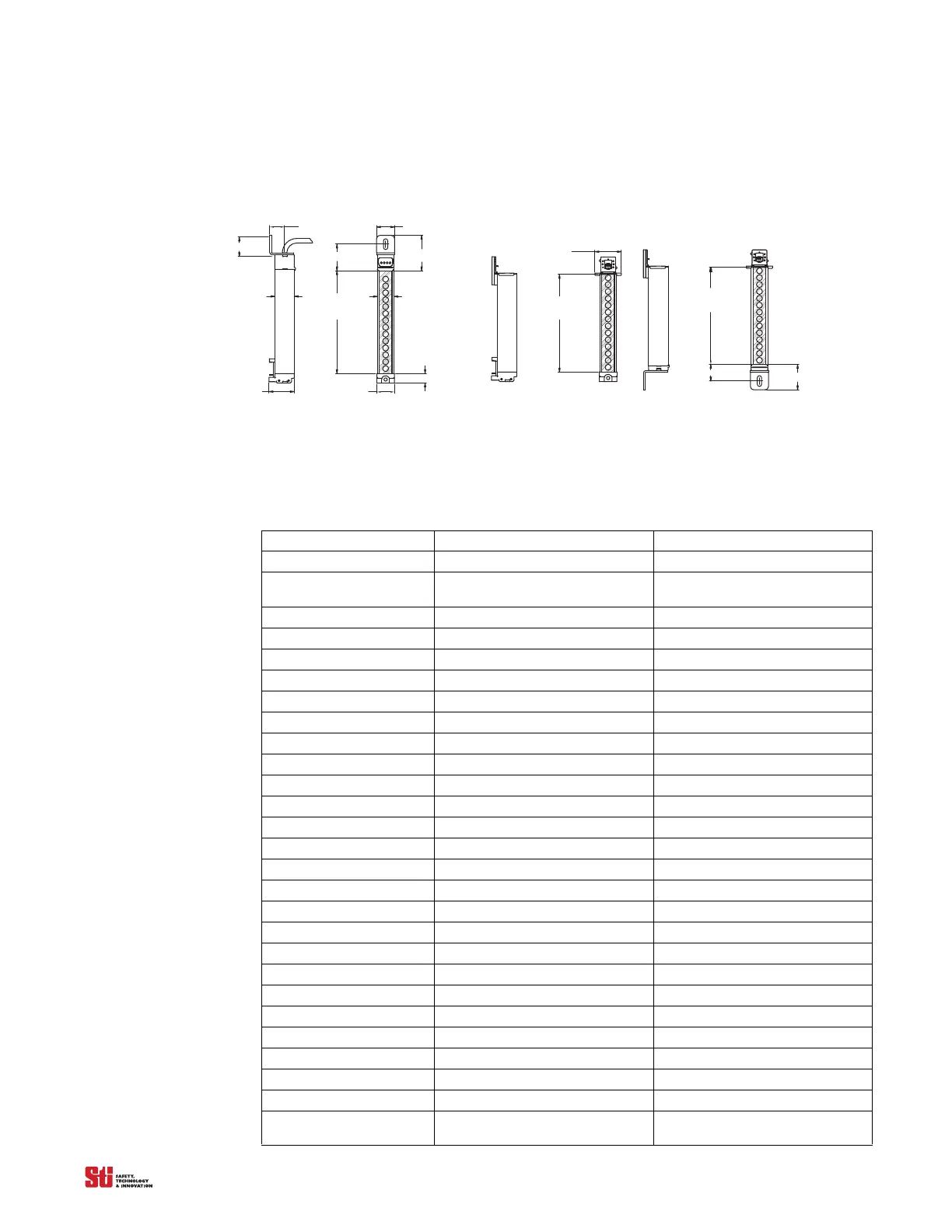

Figure 14-3 MicroSafe Jointed MCJ4700 Dimensions
Table 14-15 MCJ470-12 Dimensions
MCJ4700-12 MCJ4700-20 and MCJ4700-30 MCJ4700-20 and MCJ4700-30
A, B & C mm/in. A mm/in. B & C mm/in.
FIRST, MIDDLE & LAST
SEGMENTS
FIRS
T SEGMENT ONLY MIDDLE AND LAST SEGMENTS
102.0/4.0 159.0/6.3 *78.0/3.1
202.0/8.0 *235.0/9.3 152.0/6.0
302.0/11.9 309.0/12.2 *228.0/9.0
402.0/15.8 *385.0/15.2 302.0/11.9
502.0/19.8 459.0/18.1 *378.0/14.9
602.0/23.7 *535.0/21.1 452.0/17.8
702.0/27.6 609.0/24.0 *528.0/20.8
802.0/31.6 *685.0/27.0 602.0/23.7
902.0/35.5 759.0/29.9 *678.0/26.7
1002.0/39.5 *835.0/32.9 752.0/29.6
1102.0/43.4 909.0/35.8 *828.0/32.6
*985.0/38.8 902.0/35.5
1059.0/41.7 *978.0/38.5
*1135.0/44.7 1052.0/41.4
1209.0/47.6 *1128.0/44.4
*1285.0/50.6 1202.0/47.3
1359.0/53.5 *1278.0/50.3
*1435.0/56.5 1352.0/53.2
1509.0/59.4 *1428.0/56.2
*1585.0/62.4 1502.0/59.1
1659.0/65.3 *1578.0/62.1
*1735.0/68.3 1652.0/65.0
1809.0/71.2 *1728.0/68.0
*Not available in 30 mm resolution 1802.0/70.9
*Not available in 30 mm
res
olution.
