14.5 M INISAFE MS4700 SERIES
14.5.1 MS4700 DIMENSIONS
TRANSMITTER
RECEIVER
ZONE "A"
DETECTION
TX
RX
AMBER
1
YEL
2
RED
GRN
3
4
2. INTERLOCK or FAULT INDICATOR-YEL
RX LED INDICATORS
BLANKING INDICATOR-AMBER
1. CHANNEL S ELECT or FLOATING
3. MACHINE STOP INDICATOR-RED
4. MACHINE RUN INDICATOR-GRN
MS4700
MS4700

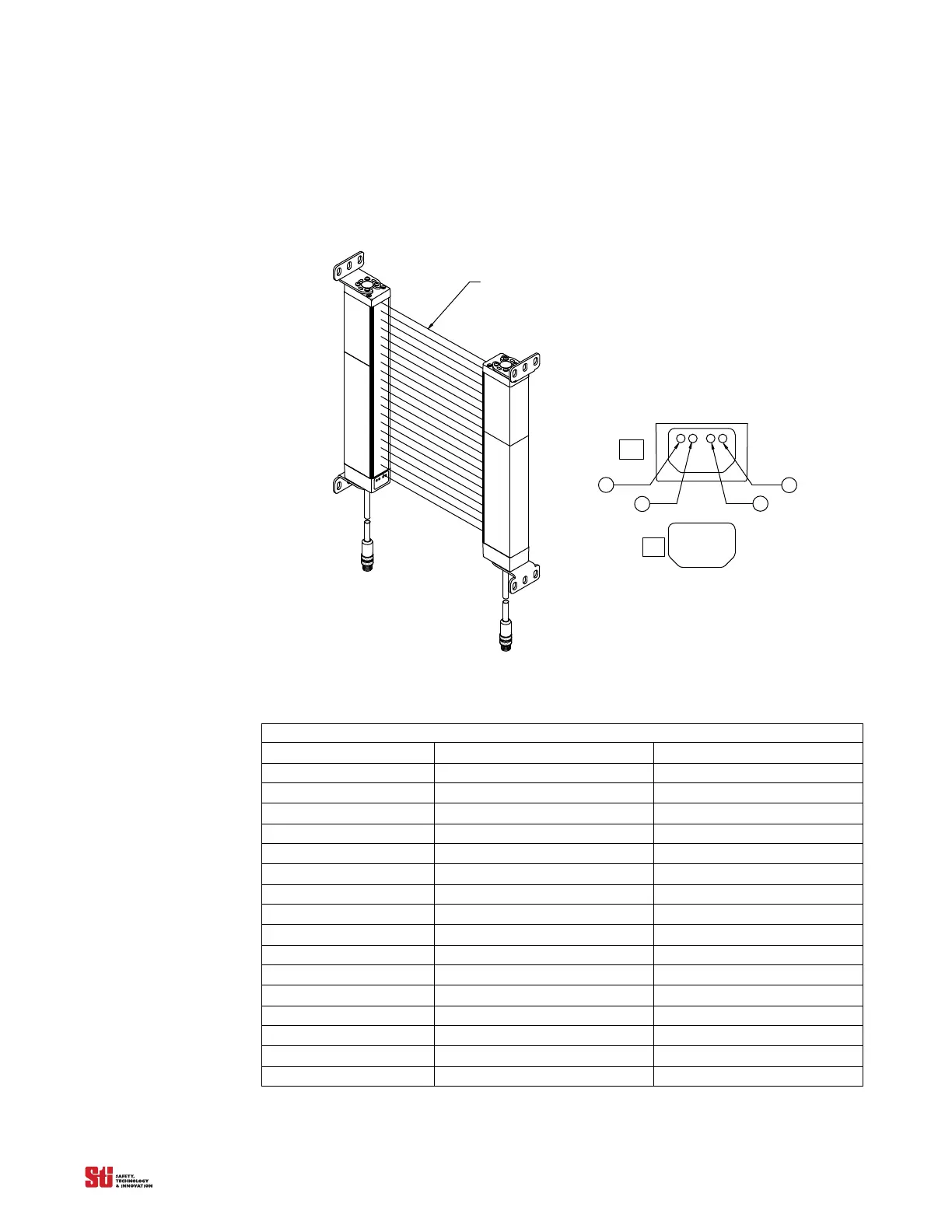

Figure 14-6 MS4700 Mechanical Drawing
Table 14-18 MS4700-12 Dimensions
MS4700-12
A mm/in. B mm/in. C mm/in.
102.0/4.0 167.0/6.6 187.0/7.4
202.0/8.0 267.0/10.5 287.0/11.3
302.0/11.9 367.0/14.4 387.0/15.2
402.0/15.8 467.0/18.4 487.0/19.2
502.0/19.8 567.0/22.3 587.0/23.1
602.0/23.7 667.0/26.3 687.0/27.0
702.0/27.6 767.0/30.2 787.0/31.0
802.0/31.6 867.0/34.1 887.0/34.9
902.0/35.5 967.0/38.1 987.0/38.9
1002.0/39.5 1067.0/42.0 1087.0/42.8
1102.0/43.4 1167.0/45.9 1187.0/46.7
1202.0/47.3 1267.0/49.9 1287.0/50.7
1302.0/51.3 1367.0/53.8 1387.0/54.6
1402.0/55.2 1467.0/57.8 1487.0/58.5
1502.0/59.1 1567.0/61.7 1587.0/62.5
1602.0/63.1 1667.0/65.6 1687.0/66.4
