Chapter 2
2-74
Standard Models and Specifications
■ Servo Driver Cables (XW2Z-@@@J-B12)
These Servo Driver Cables connect a Servo Driver and a Servo Relay Unit. Use these cables to con-
nect to a Customizable Counter Unit (CSW-HCP22-V1) or Servo Relay Unit (XW2B-80J7-1A).
● Cable Models

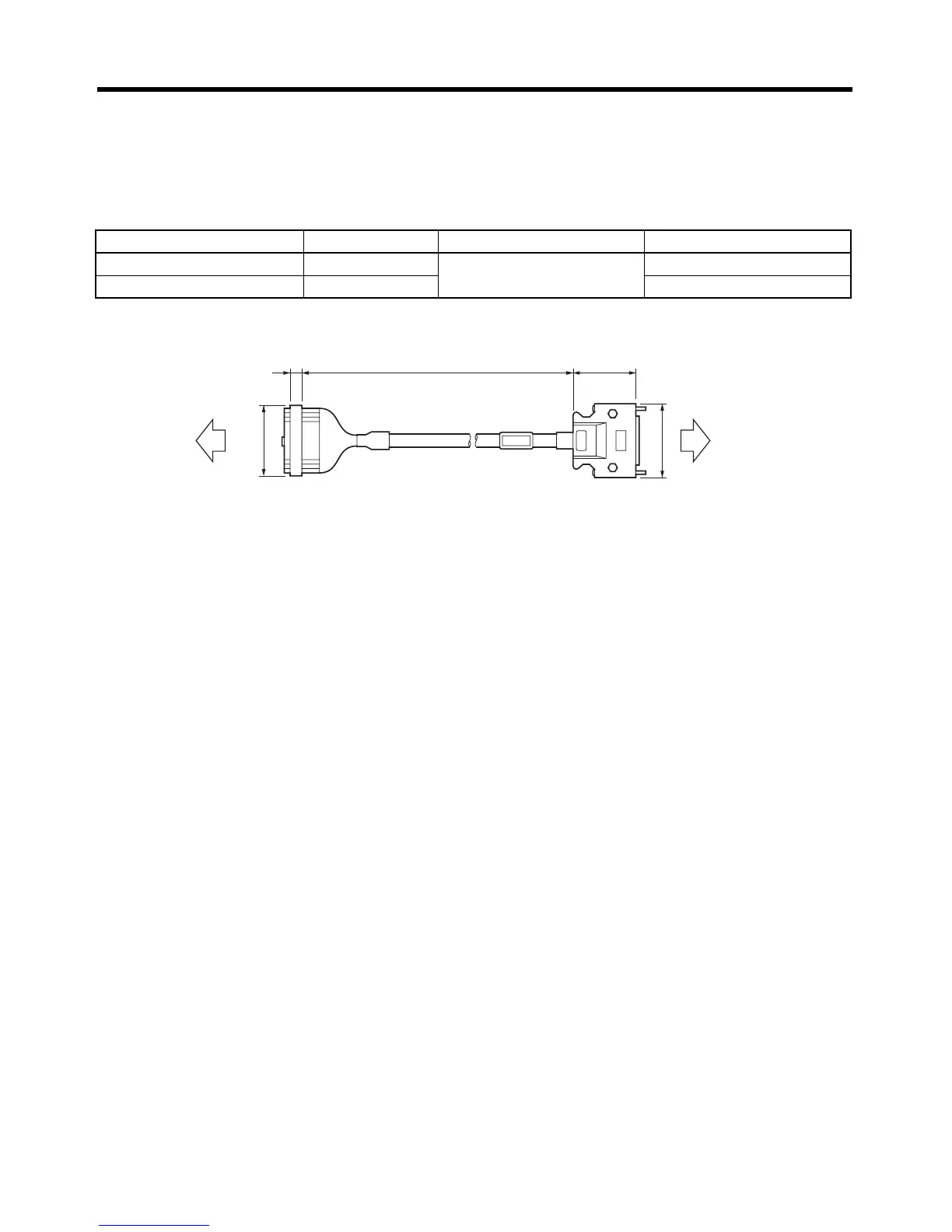

● Connection Configuration and External Dimensions
Model Length (L) Outer diameter of sheath Weight
XW2Z-100J-B12 1 m 8.0 dia. Approx. 0.1 kg
XW2Z-200J-B12 2 m Approx. 0.2 kg
Servo Relay Unit
XW2B-80J7-1A
Servo Driver
R7D-AP@
43.6
48
39L6
