Omron SMARTSTEP R7D-AP Series User Manual

Chapter 2
2-96
Standard Models and Specifications
■ Position Control Unit Cables (XW2Z-@J-A23)
These Position Control Unit Cables connect a CS1W-HCP22 Position Control Unit and an XW2B-
20J6-3B Servo Relay Unit.
● Cable Models

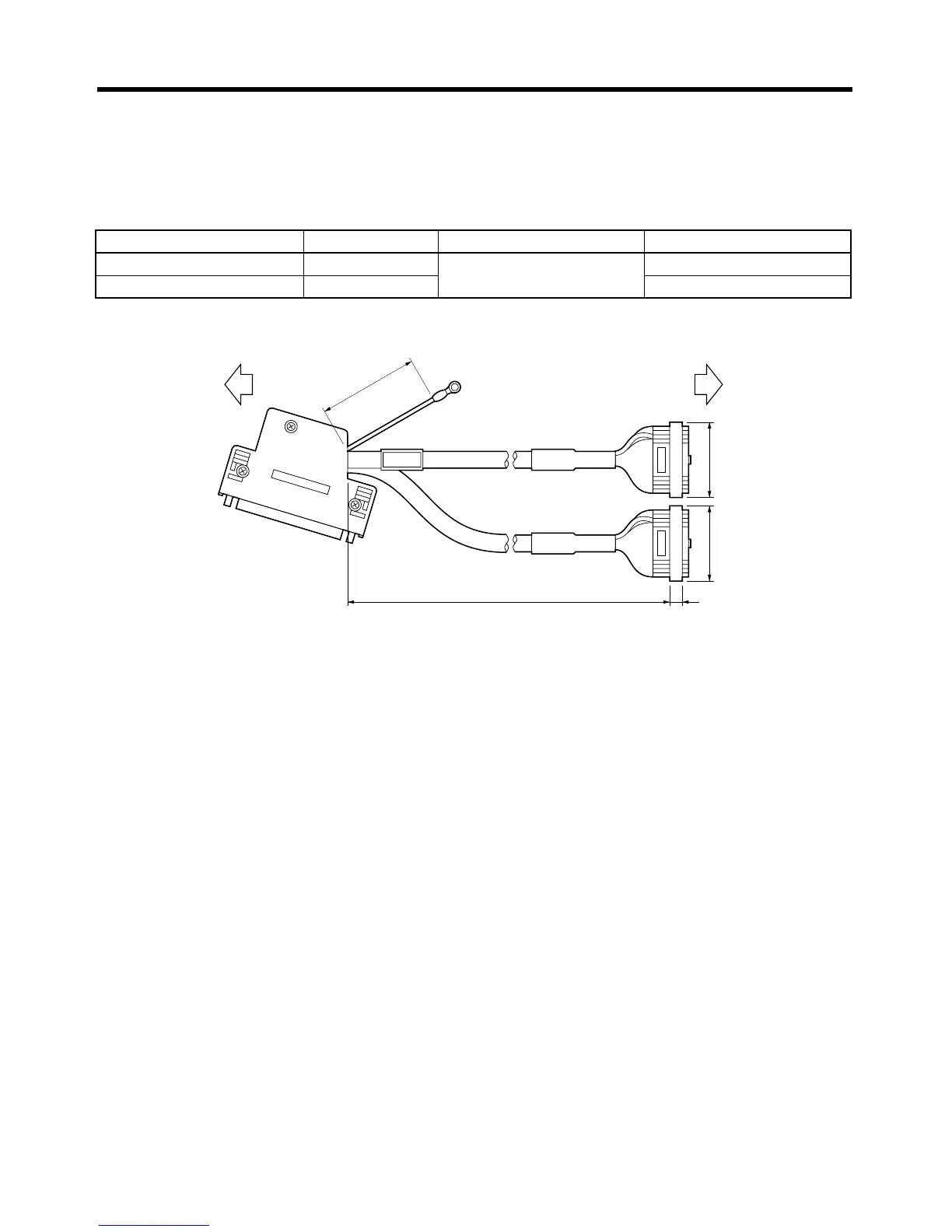

● Connection Configuration and External Dimensions
Model Length (L) Outer diameter of sheath Weight
XW2Z-050J-A23 50 cm 10.0 dia. Approx. 0.1 kg
XW2Z-100J-A23 1 m Approx. 0.2 kg
Position Control Unit
CS1W-HCP22
Servo Relay Unit
XW2B-20J6-3B
20J6-3B
C
S1W
-H
C
P22
20J6-3B
L 6
2525
t=11
500

Omron SMARTSTEP R7D-AP Series Specifications

General

Brand	Omron
Model	SMARTSTEP R7D-AP Series
Category	Amplifier
Language	English
