Omron SMARTSTEP R7D-AP Series User Manual

Chapter 2
2-82
Standard Models and Specifications
■ Position Control Unit Cables (XW2Z-@J-A9)
These Position Control Unit Cables connect a CS1W-NC213, CS1W-NC413, C200HW-NC213 or
C200HW-NC413 Position Control Unit and an XW2B-40J6-2B or XW2B-40J6-4A Servo Relay Unit.
● Cable Models

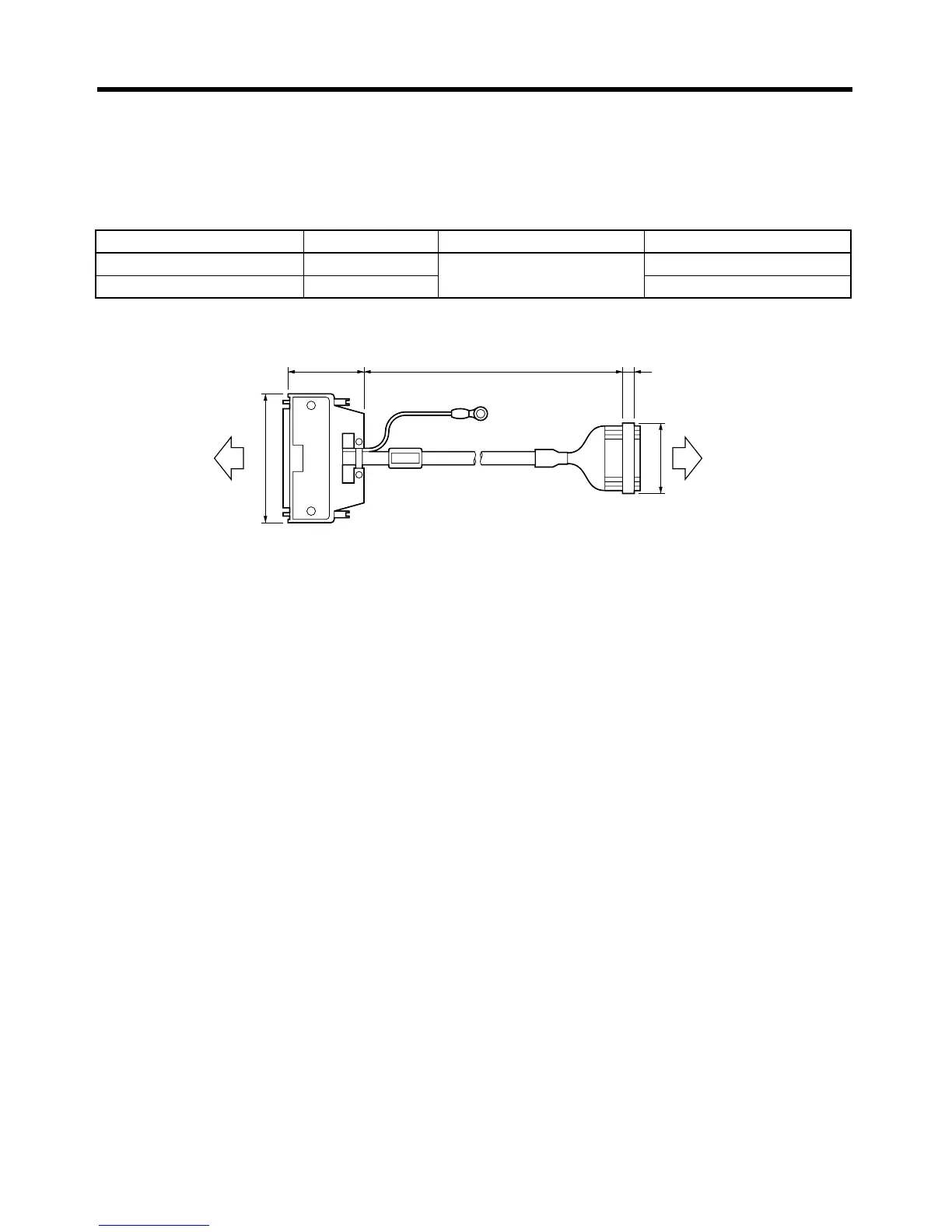

● Connection Configuration and External Dimensions
Model Length (L) Outer diameter of sheath Weight
XW2Z-050J-A9 50 cm 10.0 dia. Approx. 0.1 kg
XW2Z-100J-A9 1 m Approx. 0.2 kg
Position Control Unit
CS1W-NC213
CS1W-NC413
C200HW-NC213
C200HW-NC413
Servo Relay Unit
XW2B-40J6-2B
XW2B-40J6-4A
48
L 647
83
t=11
