Omron SMARTSTEP R7D-AP Series User Manual

Chapter 2
2-106
Standard Models and Specifications
■ Motion Controller Cables for Special I/O
These Motion Controller Cables connect a Motion Control Module (FQM1-MMP21) and the special I/
O of a Servo Relay Unit (XW2B-80J7-1A).
● Cable Models

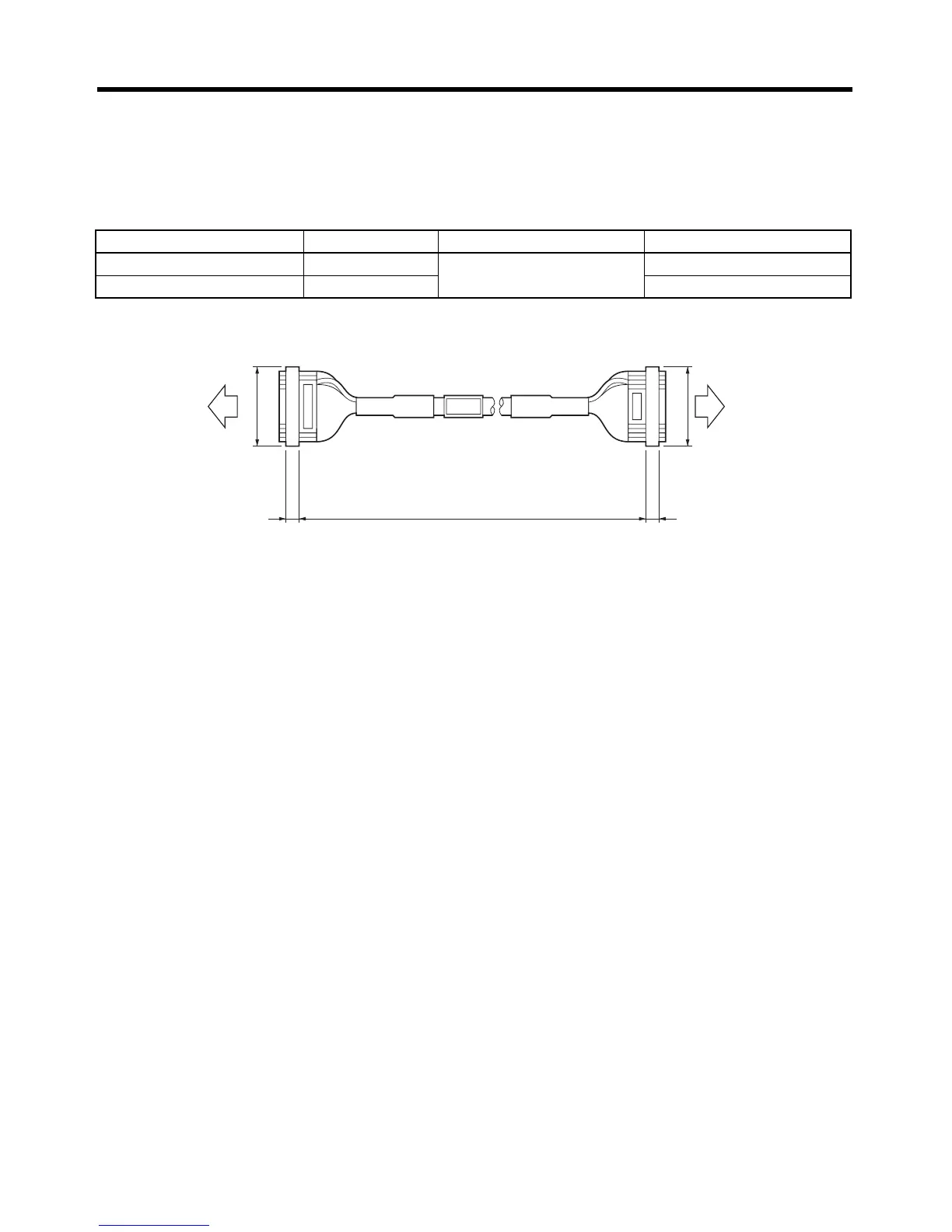

● Connection Configuration and External Dimensions
Model Length (L) Outer diameter of sheath Weight
XW2Z-050J-A30 50 cm 10.0 dia. Approx. 0.1 kg
XW2Z-100J-A30 1 m Approx. 0.2 kg
Motion Control Module
L
6
Servo Relay Unit
55
80J7-1A
FQM1-MMP21
XW2B-80J7-1
A
55
6
FQM1-MMP21
