Chapter 2
2-93
Standard Models and Specifications
■ Position Control Unit Cables (XW2Z-@J-A21)
These Position Control Unit Cables connect a CJ1W-NC233 or CJ1W-NC433 Position Control Unit
and an XW2B-40J6-2B or XW2B-40J6-4A Servo Relay Unit.
● Cable Models

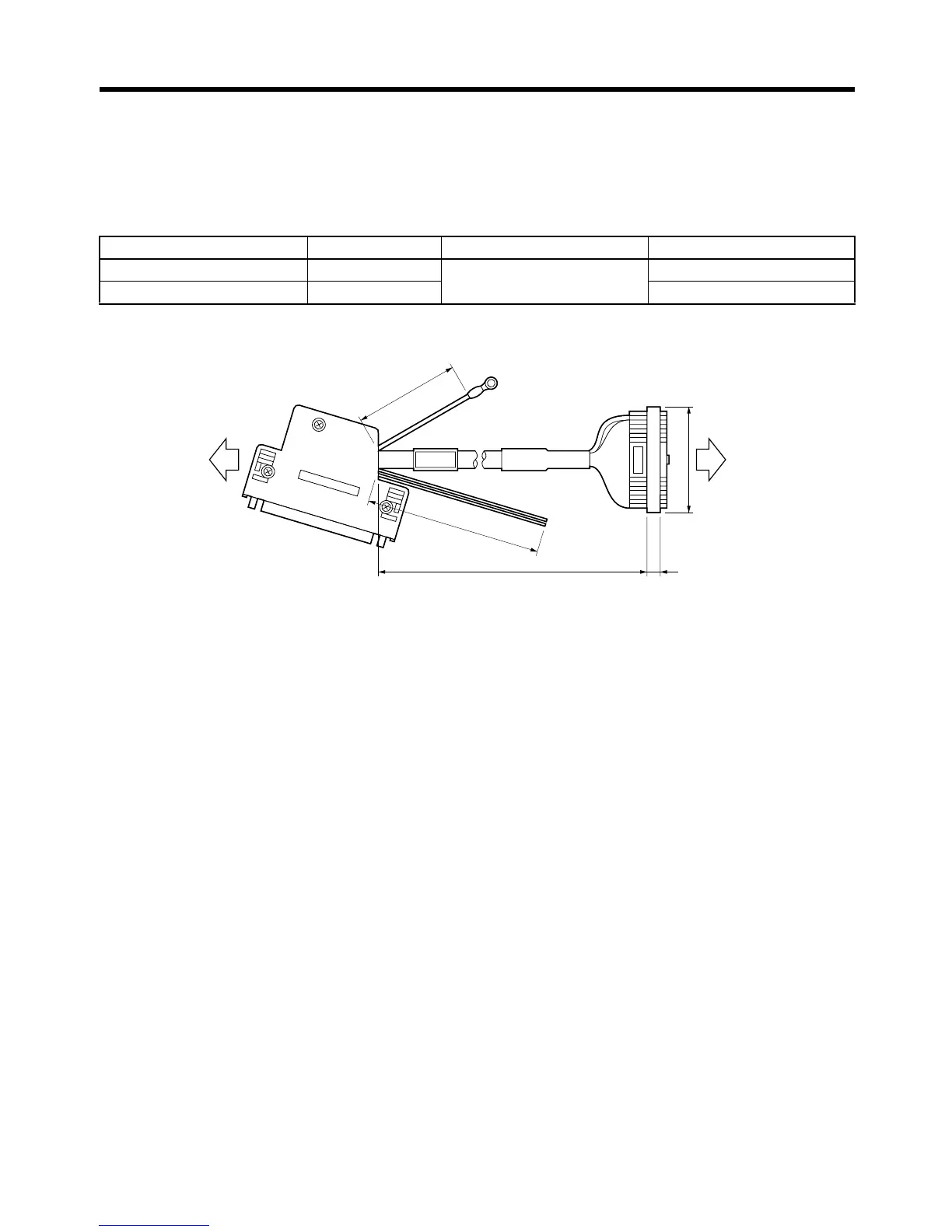

● Connection Configuration and External Dimensions
Model Length (L) Outer diameter of sheath Weight
XW2Z-050J-A21 50 cm 10.0 dia. Approx. 0.1 kg
XW2Z-100J-A21 1 m Approx. 0.2 kg
Position Control Unit
CJ1W-NC233
CJ1W-NC433
XW2B-40J6-2B
XW2B-40J6-4A
C
J
1
W
-N
C
2
3
3
/N
C
4
3
3
40J6-2B
L 6
t=11
500
48
1000
Servo Relay Unit
To Next Page
