■ Position Control Unit Cables (XW2Z@J-A16)
These Position Control Unit Cables connect a CJ1W-NC113 Position Control Unit and an XW2B-
20J6-1B Servo Relay Unit.
● Cable Models

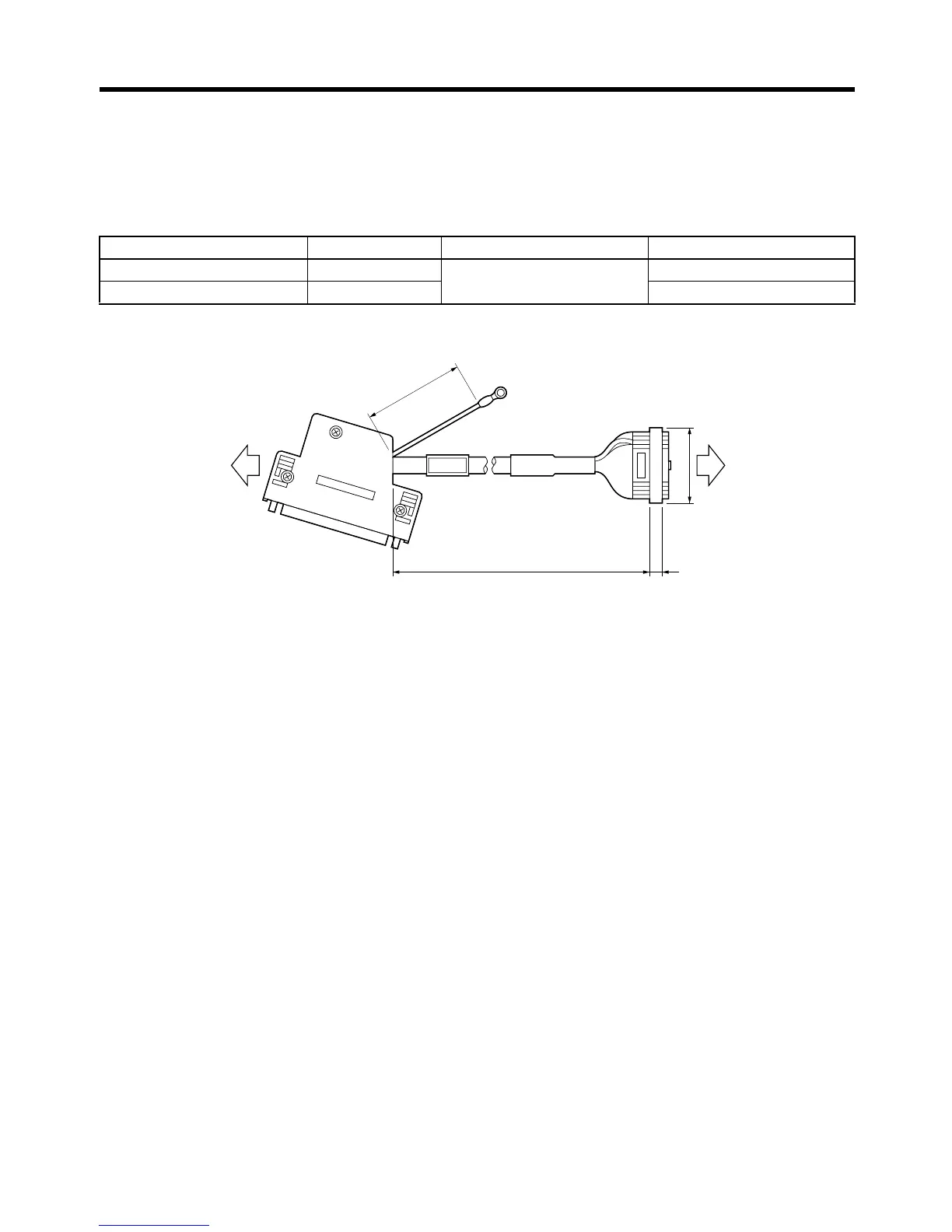

● Connection Configuration and External Dimensions
Model Length (L) Outer diameter of sheath Weight
XW2Z-050J-A16 50 cm 10.0 dia. Approx. 0.1 kg
XW2Z-100J-A16 1 m Approx. 0.2 kg
Position Control Unit
CJ1W-NC113
Servo Relay Unit
XW2B-20J6-1B
20J6-1B
CJ1W
-NC113
L 6
38
t=11
500
