Omron SMARTSTEP R7D-AP Series User Manual

Chapter 2
2-98
Standard Models and Specifications
■ Position Control Unit Cables (XW2Z-@J-A25)
These Position Control Unit Cables connect a 3F88M-DRT141 Single-shaft Positioner (for
DeviceNet) and an XW2B-20J6-1B Servo Relay Unit.
● Cable Models

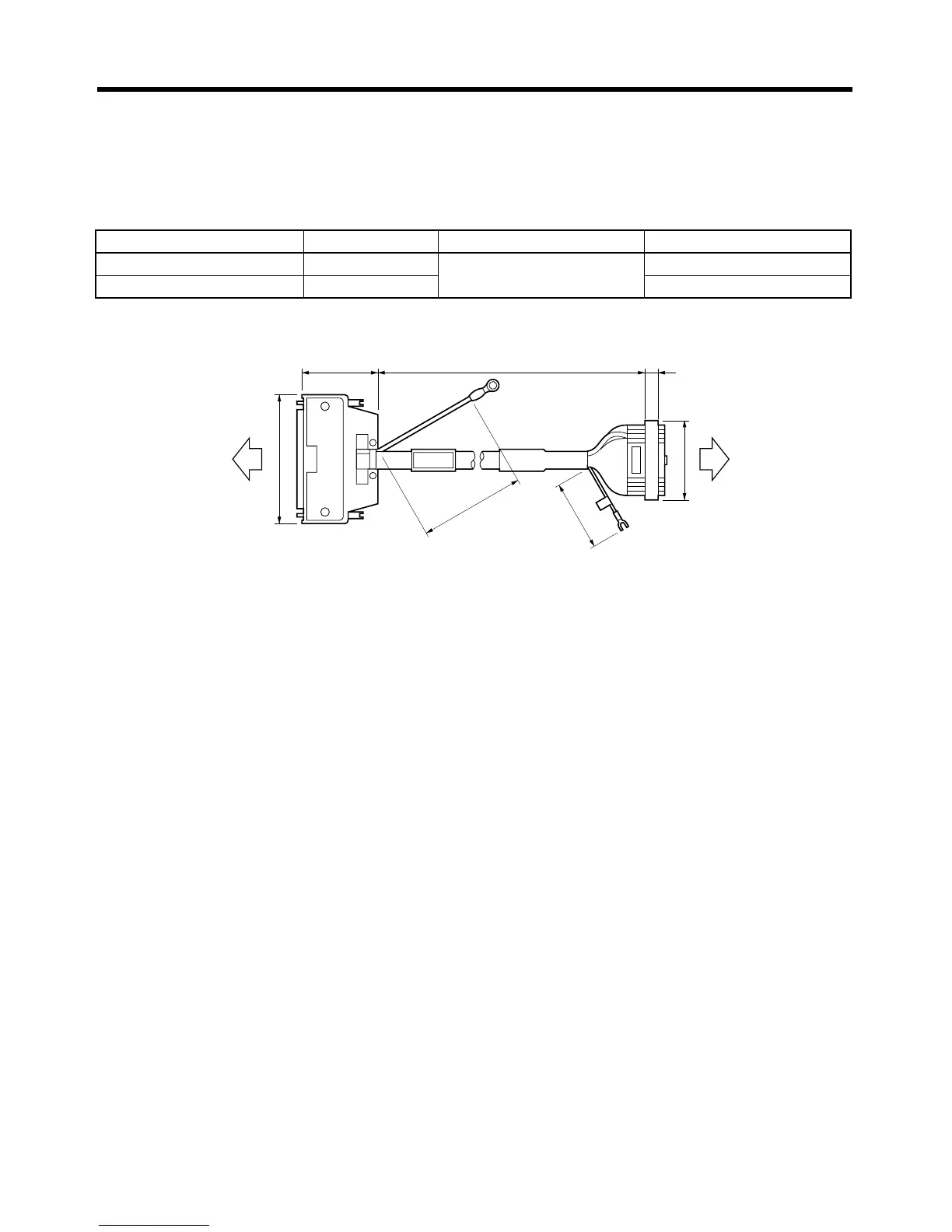

● Connection Configuration and External Dimensions
Model Length (L) Outer diameter of sheath Weight
XW2Z-050J-A25 50 cm 10.0 dia. Approx. 0.1 kg
XW2Z-100J-A25 1 m Approx. 0.2 kg
Position Control Unit
3F88M-DRT141
Servo Relay Unit
XW2B-20J6-1B
38
L 647
83
t=11
20J6-1B
500
150
