Omron SMARTSTEP R7D-AP Series User Manual

Chapter 2
2-100
Standard Models and Specifications
■ CJ1M-CPU Unit Cables (XW2Z-100J-A26)
These CJ1M-CPU Unit Cables connect a CJ1M Unit with built-in pulse I/O (CJ1M-CPU21/-CPU22/-
CPU23) and a Servo Relay Unit (XW2B-20J6-8A and XW2B-40J6-9A).
● Cable Models

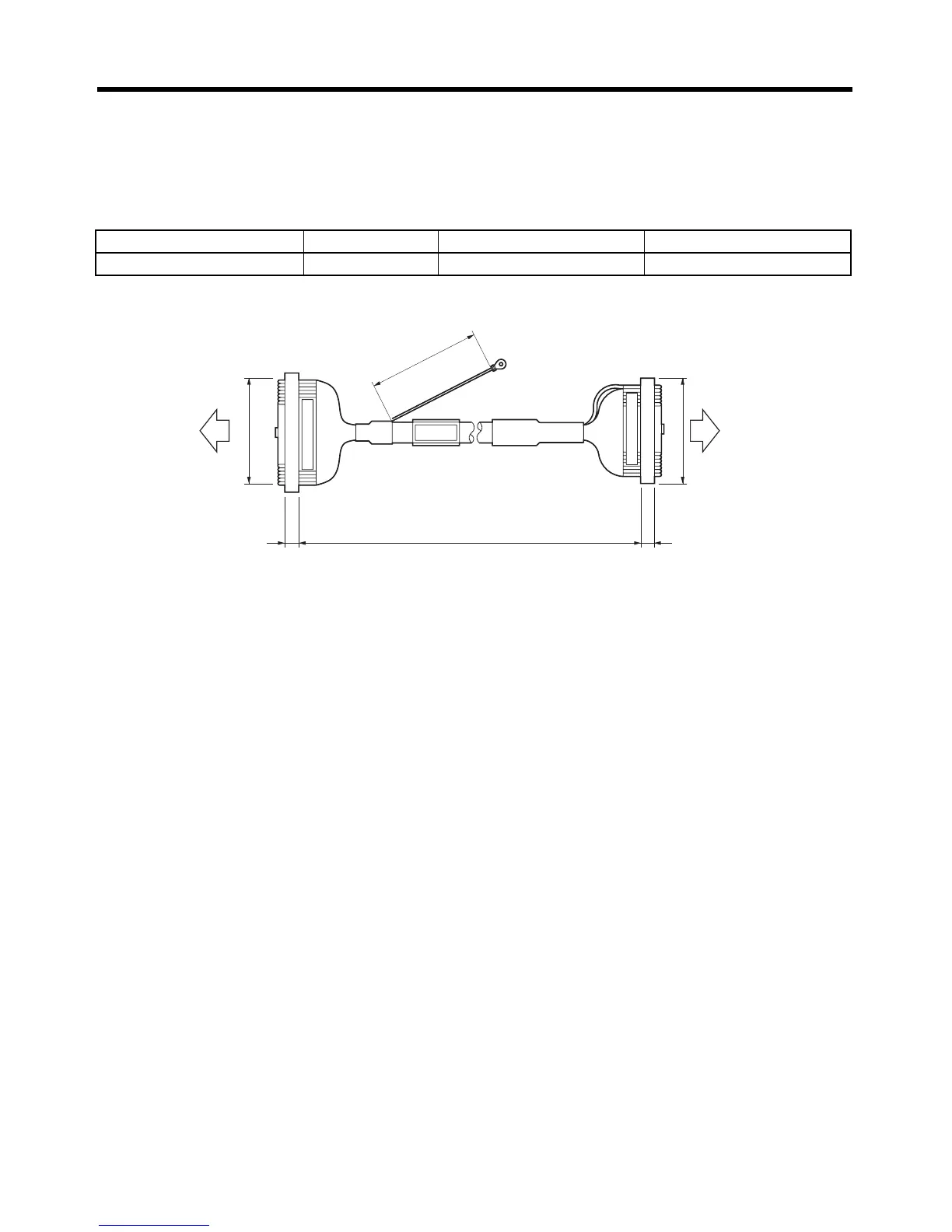

● Connection Configuration and External Dimensions
Model Length (L) Outer diameter of sheath Weight
XW2Z-100J-A26 1 m 10.0 dia. Approx. 0.1 kg
500
L
56
6
CJ1M-CPU Unit
CJ1M-CPU21
CJ1M-CPU22
CJ1M-CPU23
CJ1M-CPU22/23
6
48
20J6-8A/40J6-9A
Servo Relay Unit
XW2B-20J6-8A
XW2B-40J6-9A
