Chapter 3
3-30
System Design and Installation
• Be sure that no gaps are created when installing the cover, as gaps can be caused by distortion
when tightening screws.
■ Selecting Components
This section explains the criteria for selecting the connection components required for
improving noise resistance. These criteria include capacity performance, applicable
range, and so on. For more details, contact the manufacturers directly.
● No-fuse Breakers (NFB)
When selecting no-fuse breakers, take into consideration the maximum output current and the inrush
current.
Maximum input current:
The momentary maximum output for a Servo Driver is approximately three times that of the rated
output, and a maximum output of three seconds can be executed. Therefore, select no-fuse breakers
with an operating time of at least five seconds at 300% of the rated maximum output. General-pur-
pose and low-speed no-fuse breakers are generally suitable. The table in 3-2-3 Terminal Block Wir-
ing shows the rated power supply input currents for each Servomotor. Select a no-fuse-breaker with
a rated current greater than the total effective load current (when multiple Servomotors are used).
When making the selection, add in the current consumption of other controllers, and so on.

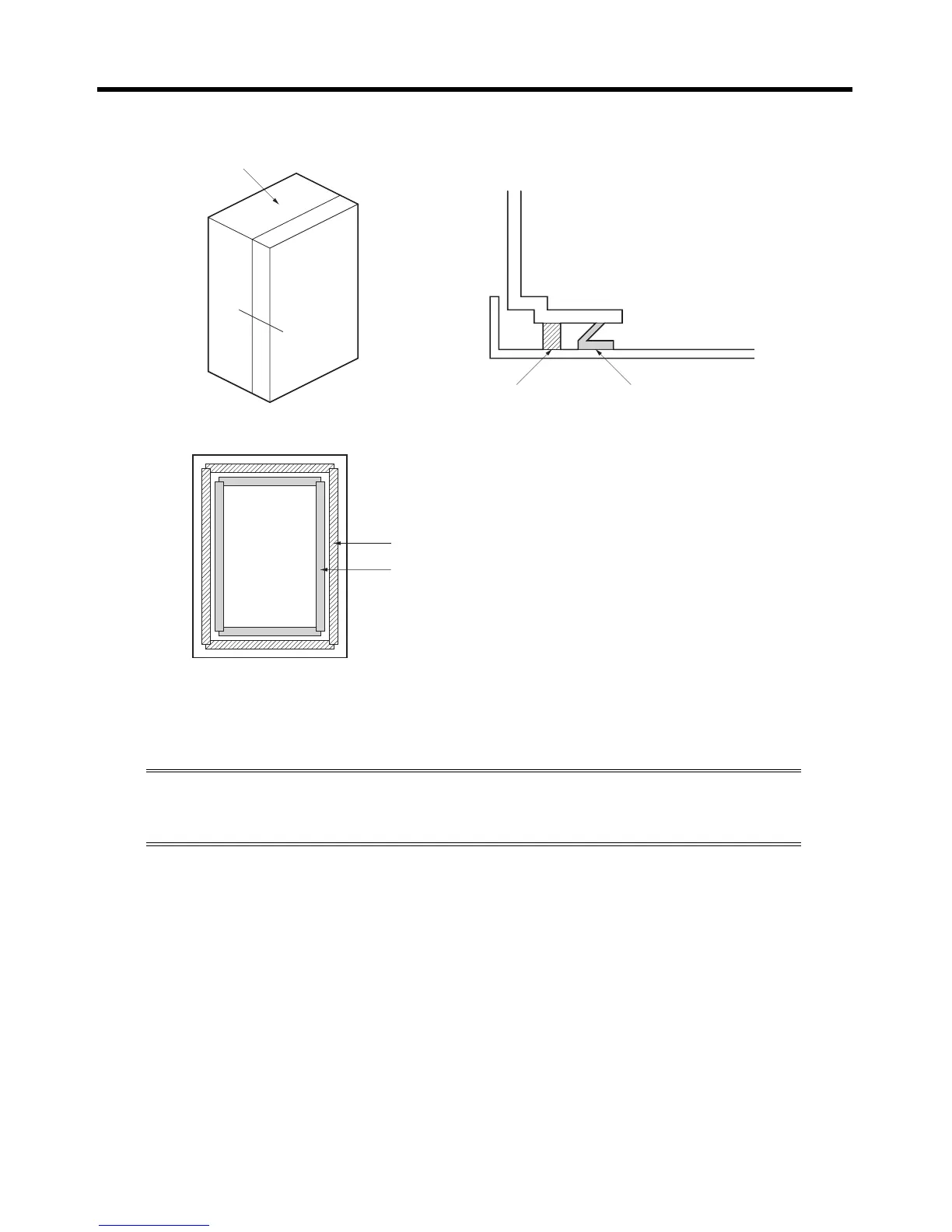

A
B
Case
Cover
Control Panel
Case (Inside)
Oil-proof packing
Conductive packing
Cover
A-B Cross-section
Oil-proof packing
Conductive packing
To Next Page
