3 Configuration
3 - 74
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
 USB Connection (Cable Length Up to 5 m)
 RS-232C Connection (Cable Length Up to 10 m)

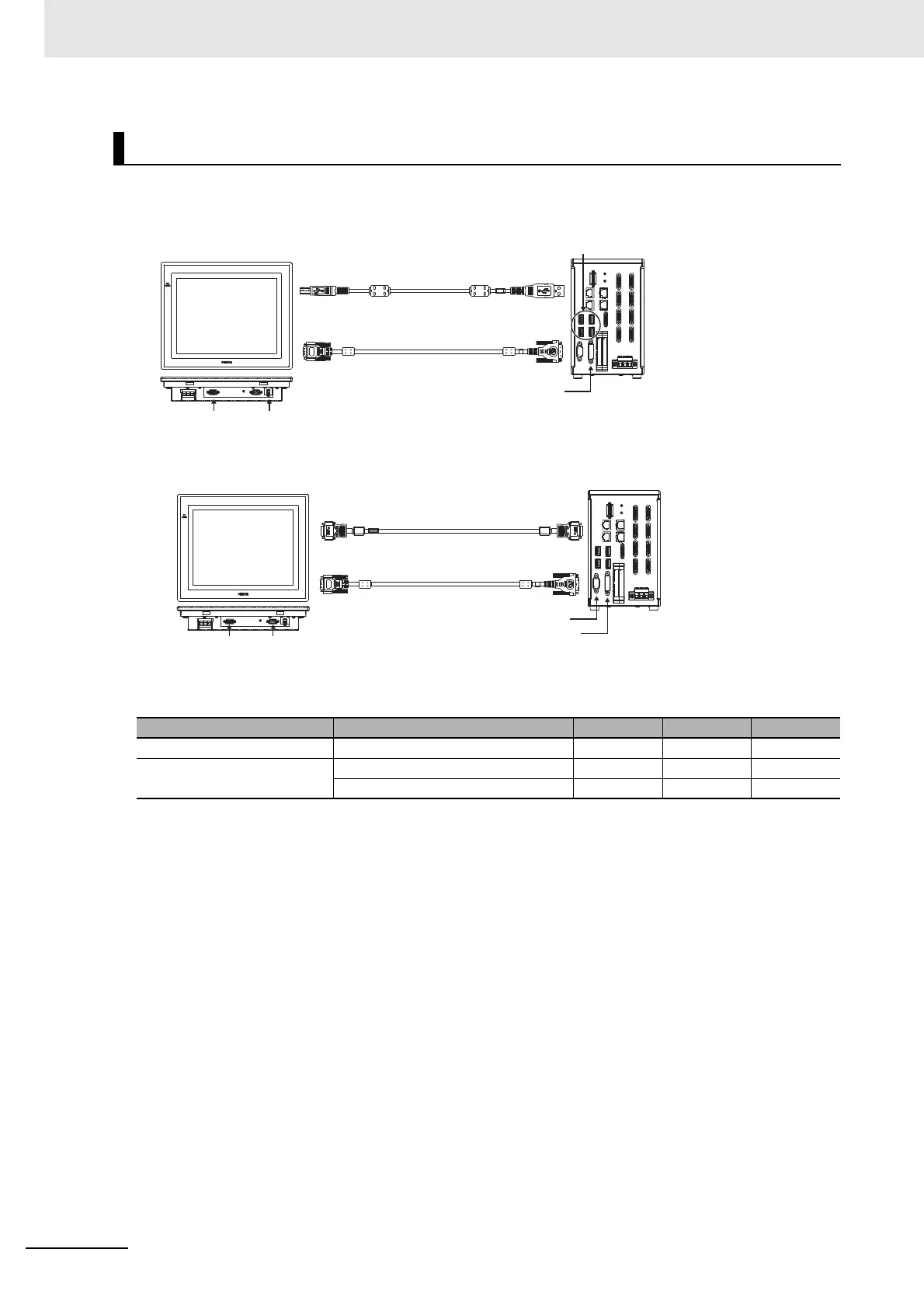

A video signal cable and an operation signal cable are required to connect the Touch Panel Monitor.
Connection Example
Signal Cable 2 m 5 m 10 m
Video signal DVI-Analog Conversion Cable   
Touch panel operation signal USB Cable   ×
RS-232C Cable   
Type A Type B
D-Sub
Analog RGB
DVI-A
DVI-I
USB
Touch panel cable(USB): FH-VUAB
Monitor cable: FH-VMDA
FH-MT12
FH controller
Connect a cable to an arbitrary
USB port of the FH controller.
FH controller
FH-MT12
DVI-AD-Sub
Analog RGB
DVI-I
RS-232C
Monitor cable: FH-VMDA
RS-232C
Touch panel cable(RS-232C):
XW2Z-PP-1
