Omron SYSMAC FH Series Hardware Setup Manual

3 - 75
3 Configuration
Vision System FH/FZ5 series Hardware Setup Manual (Z366)

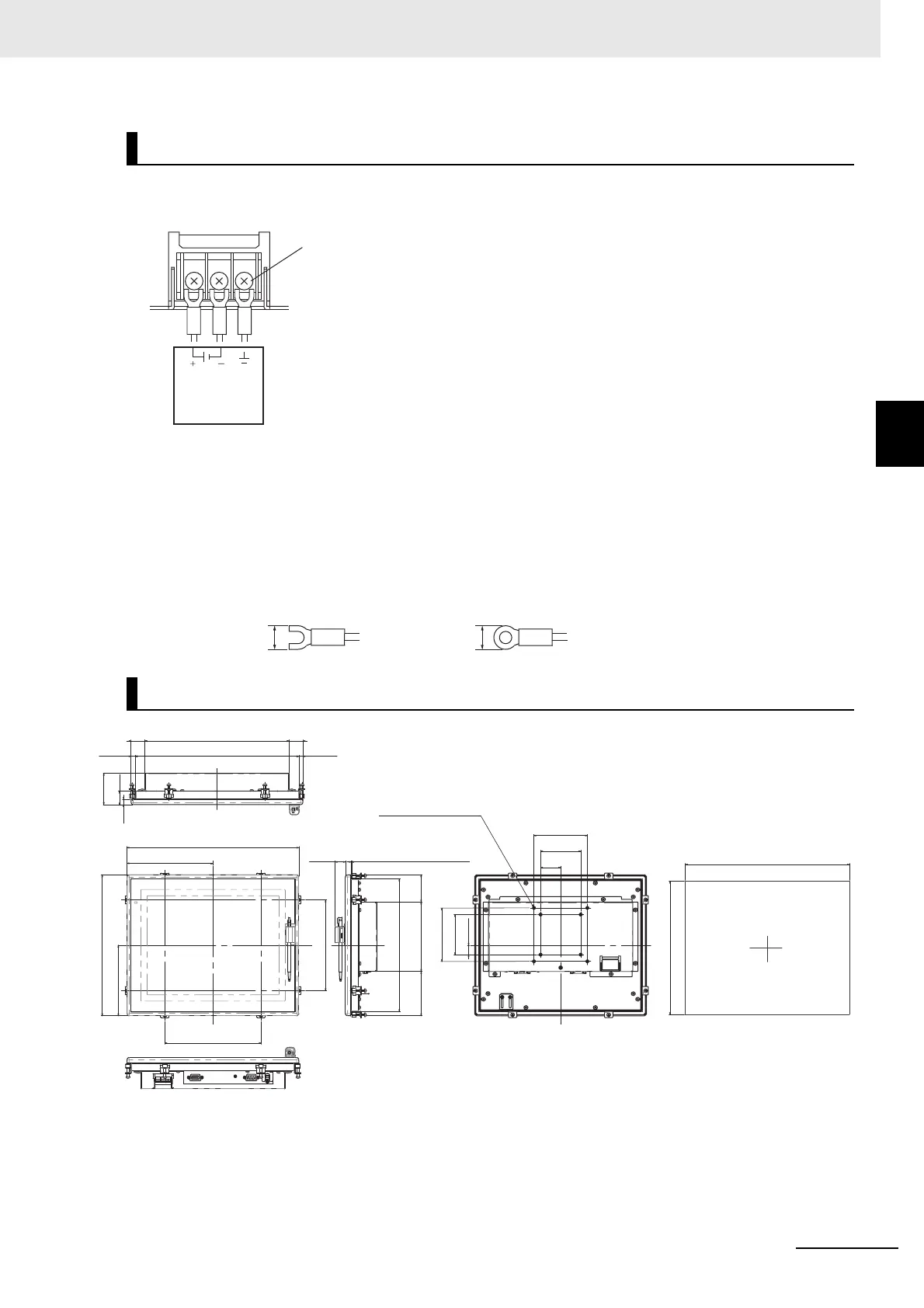

3-6 Touch Panel Monitor and Cable
3
The power connection for the Touch Panel Monitor is on the back side of the Monitor.
Connect the 24 VDC power source.
• Keep the power supply wires as short as possible. (Max.2 m)
• If UL's certification is required, use a UL class II power supply.
• Use the cables and crimping terminals with the specified dimensions.
Do not directly connect an electric wire that is
simply twisted to the terminal block.
• Recommended wire size: AWG 13 to 22 (0.326 to 2.62 mm
2
)
• Terminal screw: M4 (Tightening torque: 1.0 N•m)
• Crimping Terminal
Note 1. Panel thickness: 1.6 to 4.8 mm
2. No burr allowed
Wiring
Dimensions
M4
Power supply
24 VDC
24 VDC
Recommended model
by OMRON:
S8VS-03024
8.0 mm max.
8.0 mm max.
307
249
322
264
161
132
180
170
10
25
58.5
270 26 26
306.52 7.74
7.74
130
83
(51)
Mounting plate
thickness 1.6-4.8
(19)
248.52
17.5
75
100
37.5
75
100
8-M4 Effective
screw length6
Panel cutout dimensions
+1
0
+1
0
