Omron TM Collaborative Robot: Conveyor Tracking User’s Manual 37

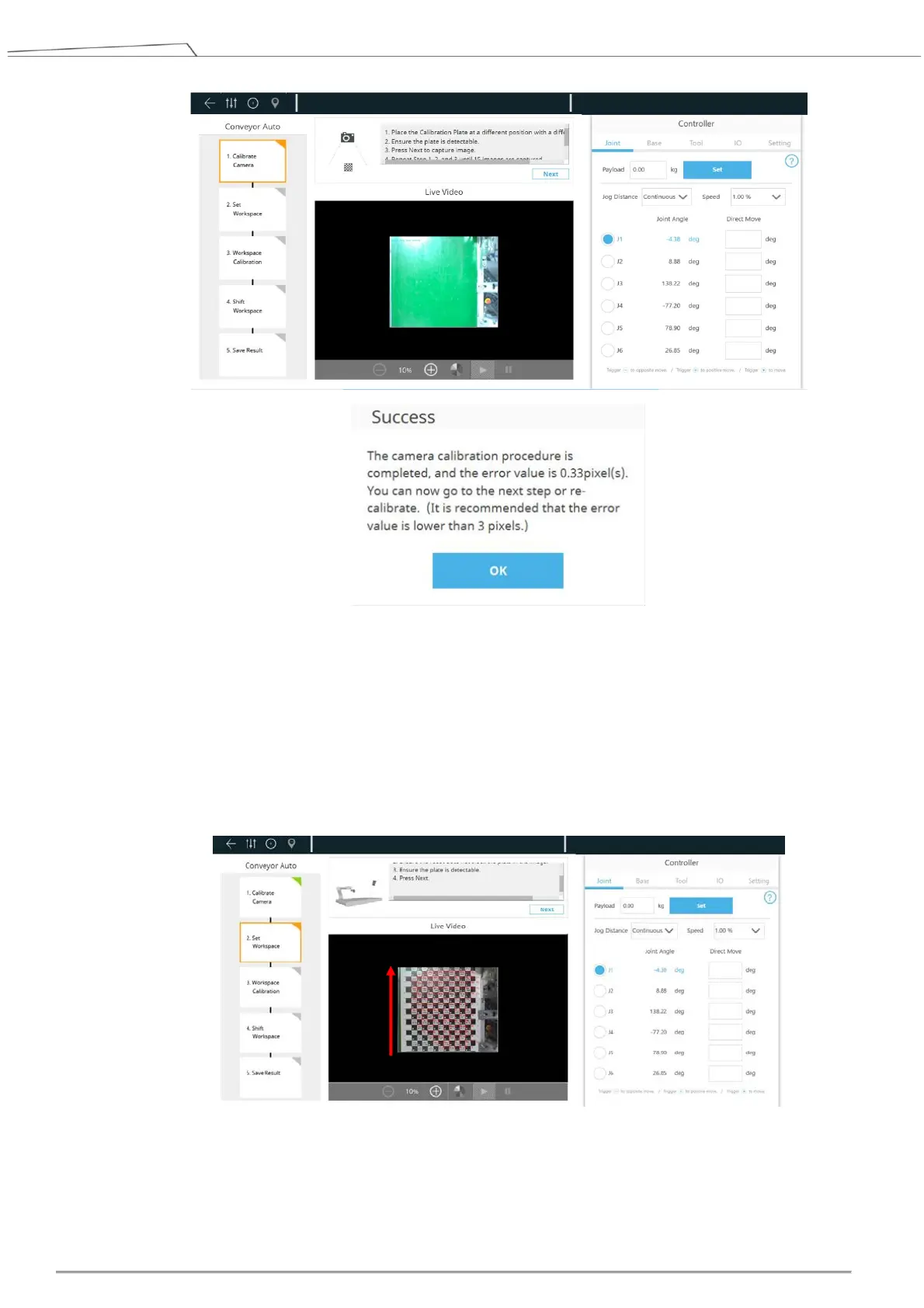

 Set Workspace: Confirm to align the calibration board’s x-axis with the conveyor direction and

the board’s y-axis with the edge of the screen (same for automatic and manual). The main goals

of the step are to

 obtain a precise value for the position of any object relative to the edge of the camera FOV,

and

 ensure more precise coordinates of any object in the image to avoid taking repeated photos

of the objects.

X-axis
