Setting Up the System - 142

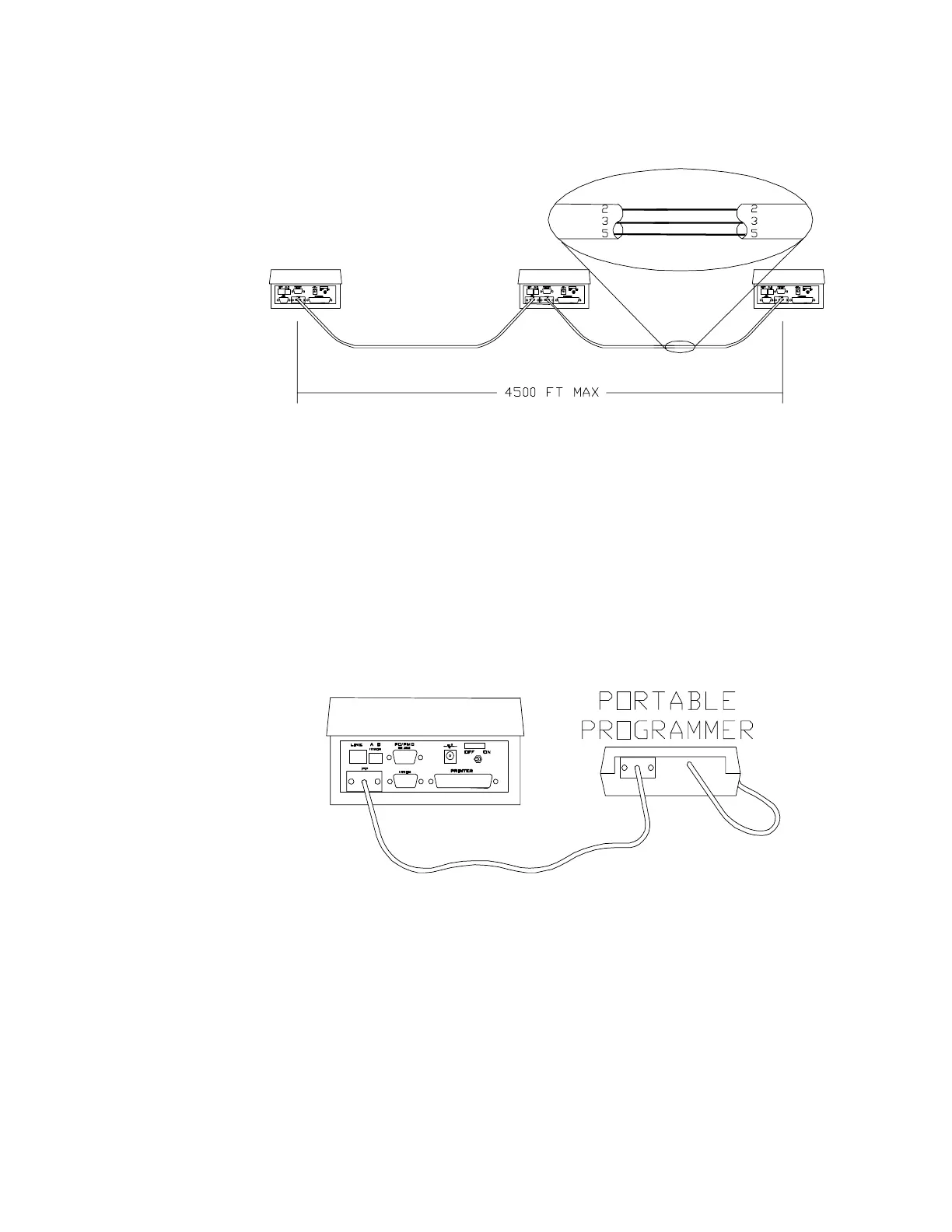

Figure 13 – HTCOM Cable Connections
Connecting the Portable Programmer
For systems with more
than one encoder, the
Portable Programmer
must be connected to
the Main Encoder.
To connect the PP to the HT22 main station, connect one
end of the PP HTCOM cable to the 9-pin connector on the
top of the PP, and connect the other end of the cable into
the 9-pin connector marked PP HTCOM on the rear panel
of the HT22 main station.
Figure 14 – Connecting the Portable Programmer
Connecting the Printer
The HT22 can utilize any standard parallel printer for
printing reports. The reports will print on any standard
size paper; the unit prompts you to enter the number of
lines per page each time you generate a printed report.
