40
RECORD

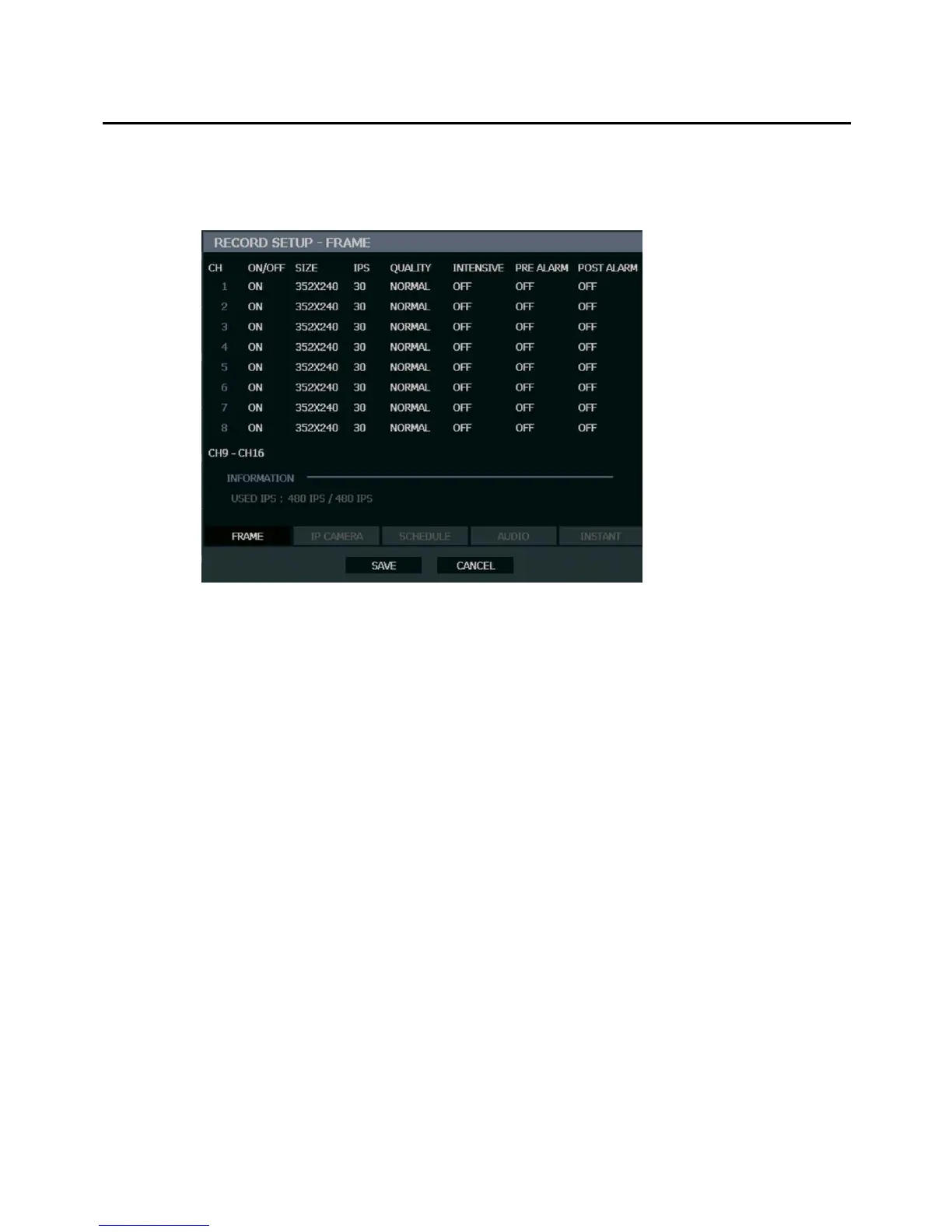

Recording Setup
Frame
ON/OFF – Enable or disable recording on individual camera channels.
SIZE – 352×240 / 704×240 / 704×480. [Resolution]
IPS – 1~30 [Recording Images Per Second]
QUALITY – LOW / NORMAL / HIGH / HIGHEST
INTENSIVE – ON/OFF [Intensive Recording on sensor or motion event]
Note When a motion or sensor event occurs, INTENSIVE RECORDING automatically
increases the recording rate to the maximum IPS that is available (based on your
current recording configuration frame rate) up to 30 IPS per channel. If events
occur on multiple channels with intensive recording enabled, the available IPS is
evenly distributed across those channels.
PRE ALARM – 0~5 seconds [Pre-Alarm Recording]
POST ALARM – 0~30 seconds [Post Alarm Recording]
USED IPS – This displays the images per second (IPS) currently used, and the total available
IPS.
To Next Page
