29716AF 49

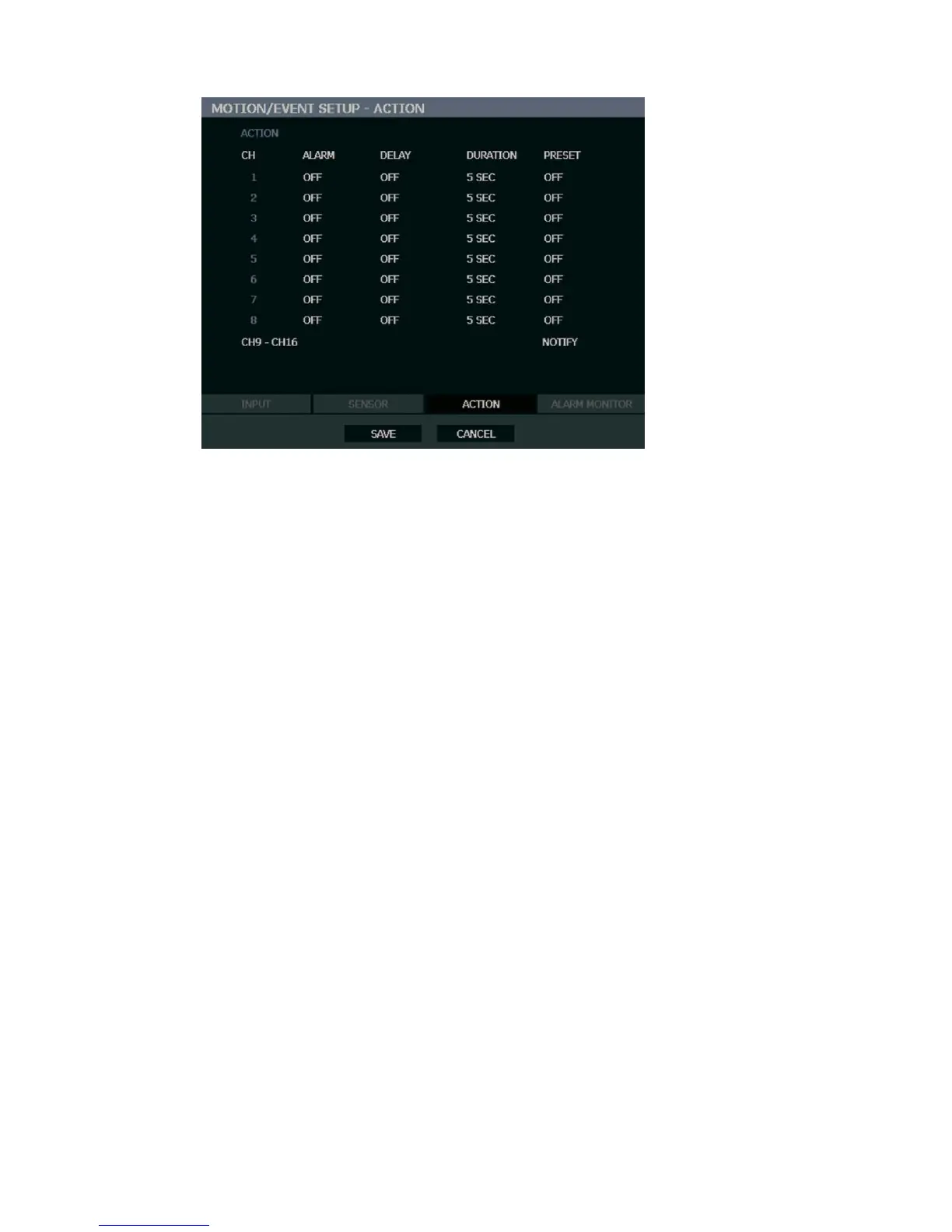

Action
CH – Channels 1~8 / Channels 9~16
Alarm – OFF / 1~4 [Associate an alarm relay with a channel].
Delay – 0~100 Seconds [Delay time before relay activates].
Duration – 0~100 Seconds [Time that the relay is active].
Preset – 0~100 [Enable PTZ camera to move to a preset position when an event occurs. See
PTZ Control for more information.]
NOTIFY – BUZZER/POPUP [Type of alarm with event].
