OPTi CCA-TS2 User Manual

7-4 Operator’s Manual – OPTI CCA-TS2
7 MAINTENANCE

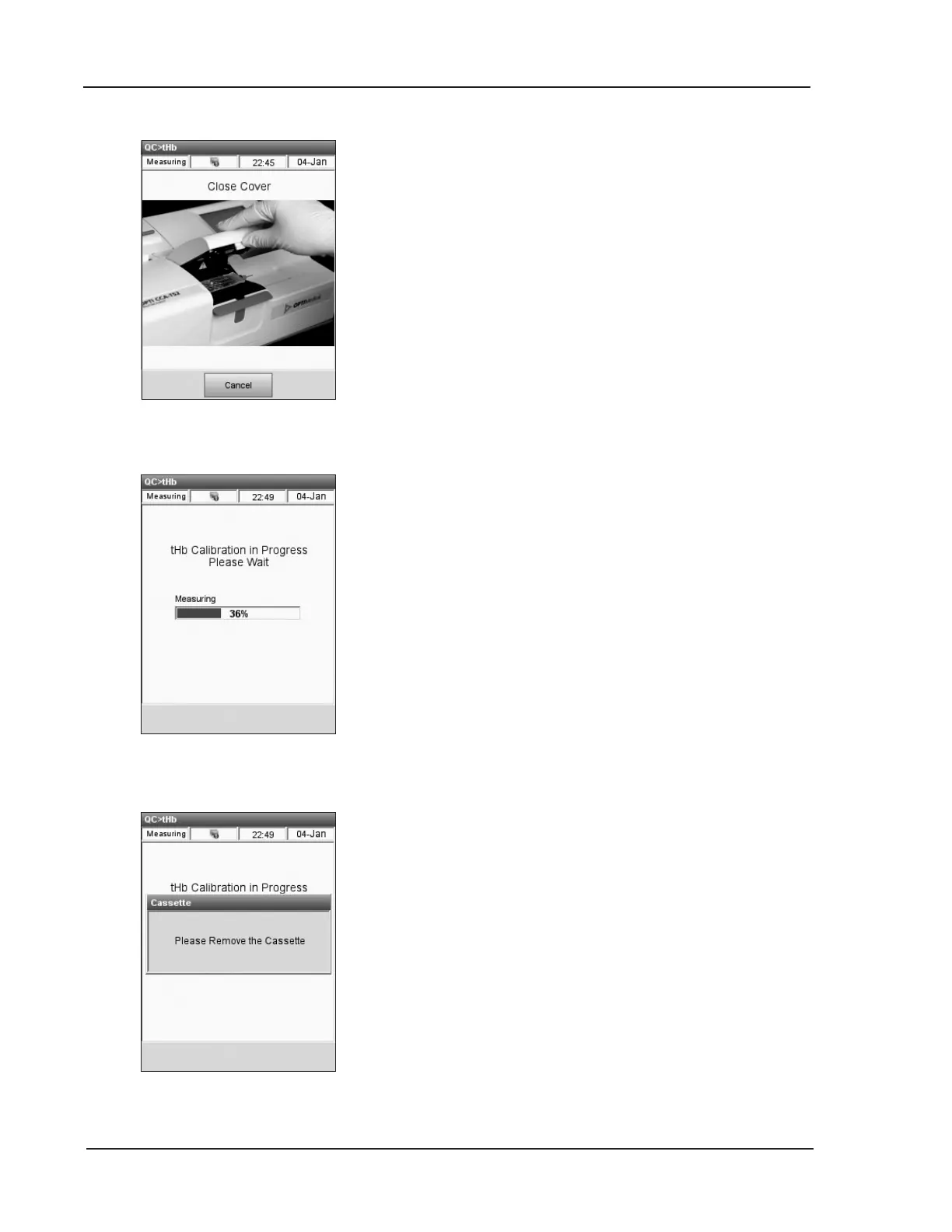

7. Close the sample chamber cover (Fig. 7-9).
• After the cover has been closed, the instrument
will automatically detect the presence of the
calibrator cassette and begin calibration
(Fig. 7-10).
8. After the calibration is complete you will be
prompted to open the sample chamber cover and
remove the cassette (Fig. 7-11).
9. Place the calibrator cassette back into its pouch
immediately after removal from the instrument.
NOTE: Makesuretokeepthecalibratorcassette
withtheinstrumentatalltimes.
Fig. 7-11 Remove Calibrator
Fig. 7-10 tHb Calibration
Fig. 7-9 Close Cover

OPTi CCA-TS2 Specifications

General

Brand	OPTi
Model	CCA-TS2
Category	Measuring Instruments
Language	English
