1-2 Introduction of the MICROS Tablet and Base Station E-Series
OS image recovery methods include restoring the image from a hidden recovery
partition, or by using the appropriate Tablet E-Series USB Recovery Flash Drive. See
Chapter 3 for more information about Factory Recovery.
The Optional MSR Sleeve contains an encryption capable 3-Track head, the same as used
on other MICROS workstations including the Tablet R-Series and Workstation 5A. The
optional MSR Sleeve is also available with a 1D/2D scanner.
Optional MSR Sleeve
The figure below shows details about the optional E-Series 8 sleeve and USB Plug. The
USB Plug attaches to the E-Series 8 Micro USB port during installation. It also contains a
MSR LED to indicate a good MSR read and a light pipe for the charging indicator.
The Micro USB Port on the left of the sleeve is for charging only and accepts inputs from
the charging transformer or future optional multi-gang charging station contacts.
A Tablet E-Series 8 USB Port is routed through the USB Plug to an on-board USB Hub if
the optional 1D/2D scanner is used.

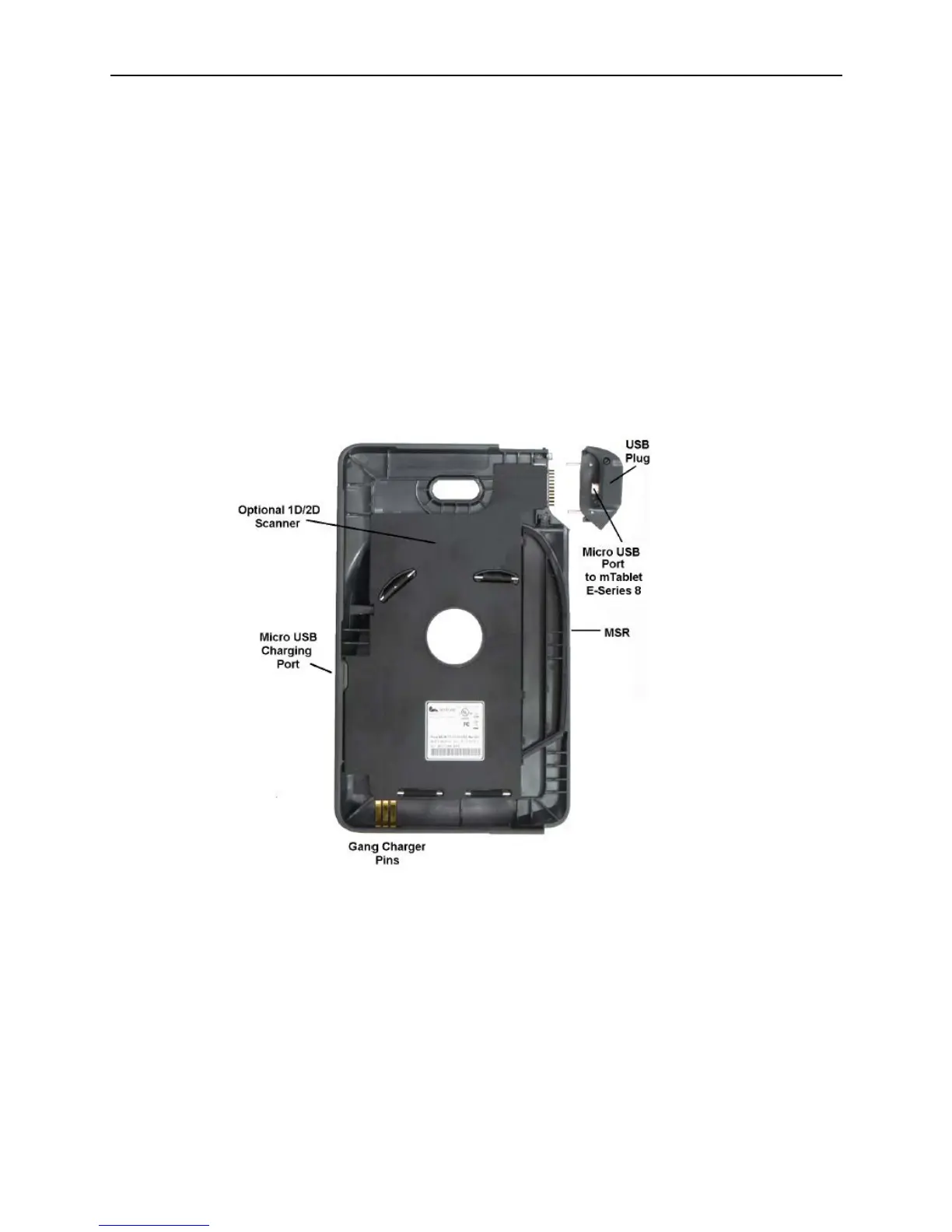

Figure 1-2 Optional Tablet E-Series 8 MSR Sleeve
