3-10 Installing and Operating the Tablet and Base Station E-Series

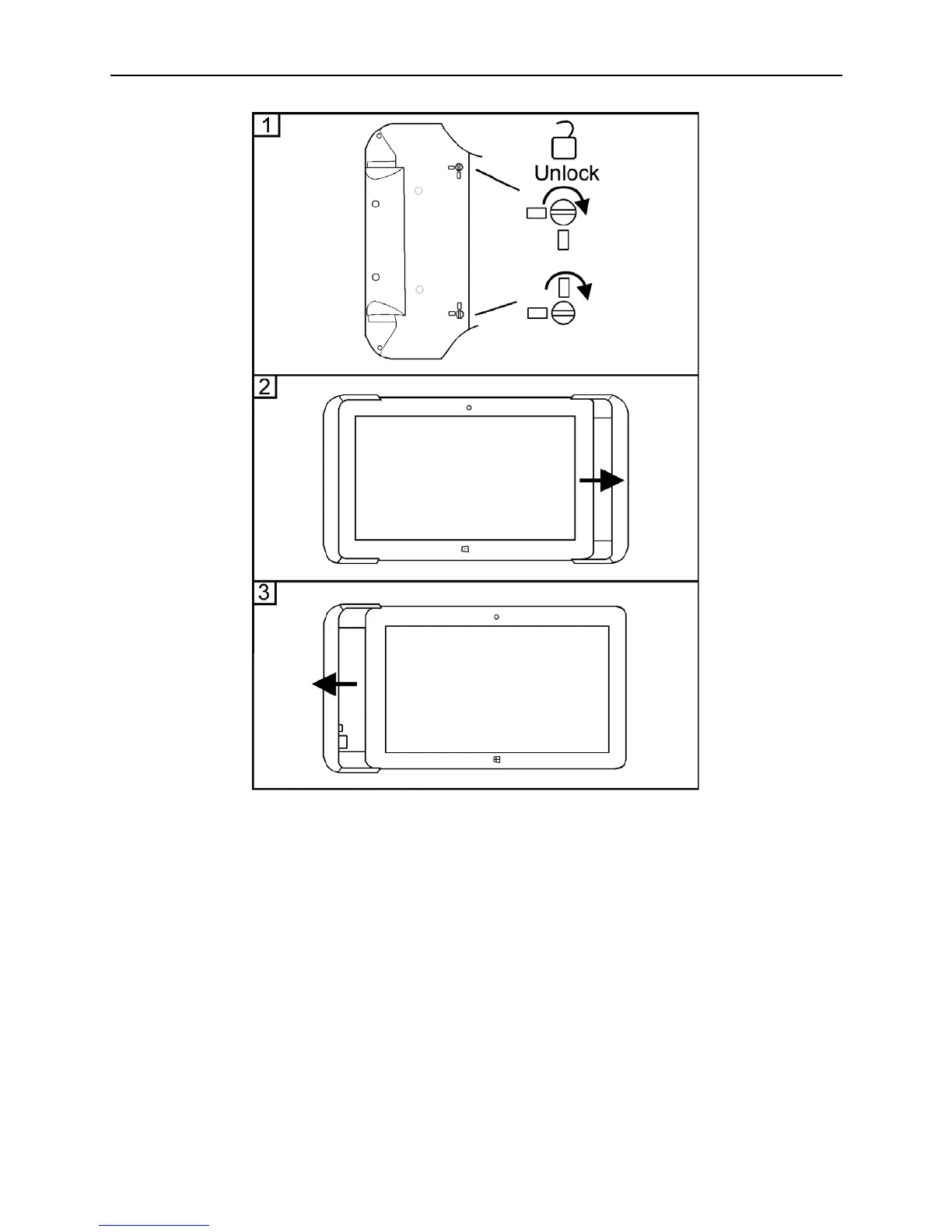

Figure 3-7 Removing the E-Series 11 MSR Sleeve
Charging the Tablet E-Series 8 and E-Series 11
Each tablet is shipped with an accessory charger and USB cable that can be used to
charge the device when installed in the optional MSR Sleeve.
The E-Series 11 includes a dual voltage charger (19.5V and 5V) that is compatible with
the E-Series 8. The E-Series 8 charger is not compatible with the E-Series 11.
The figures below show the locations of the E-Series 8 and E-Series 11 Micro USB
charging port, with and without the MSR Sleeve.
