Identifying the Internal Components 2-3
Base Station E-Series Main Board Description
This section provides a block diagram of the Base Station E-Series Main or System Board
and describes the major components. The block diagram is displayed below.

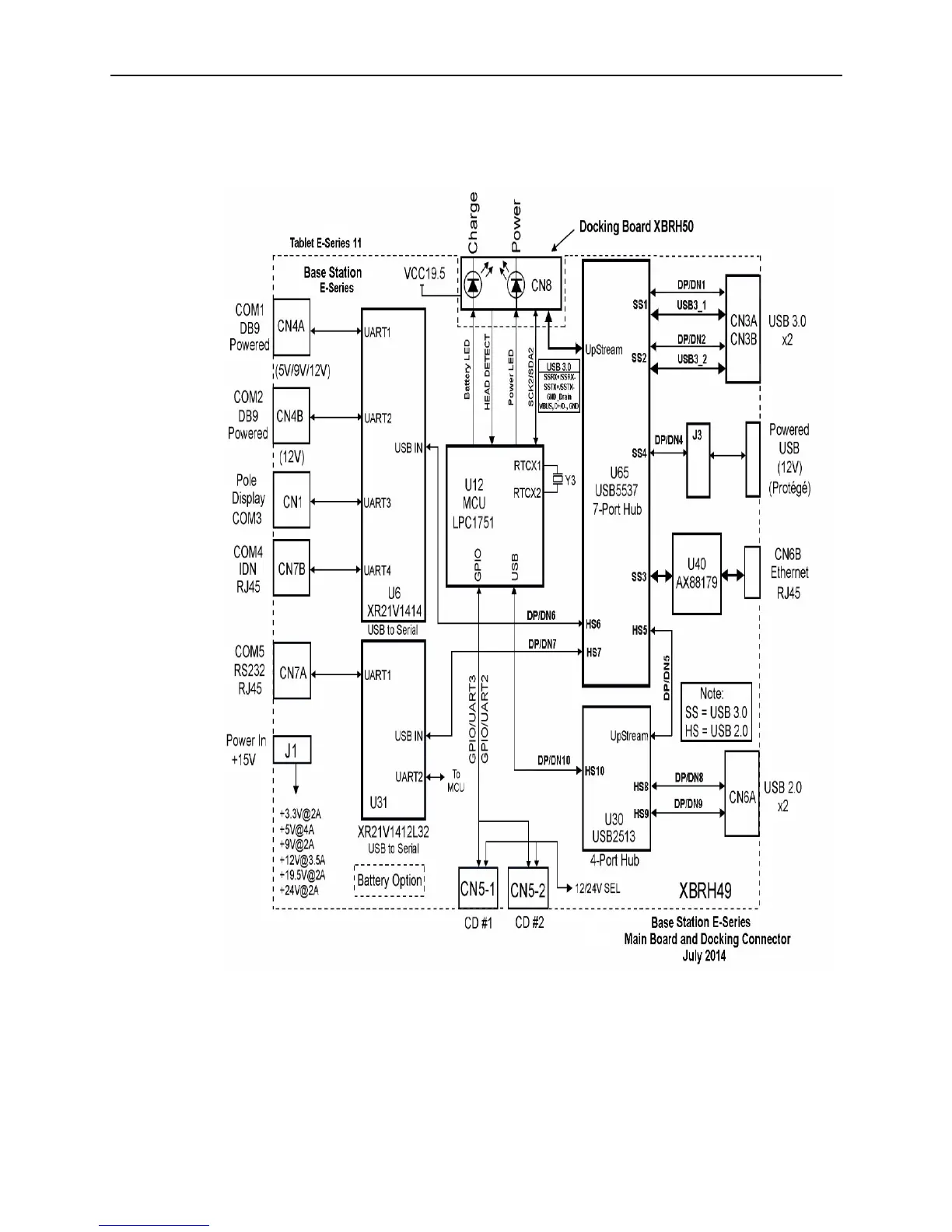

Figure 2-4 Base Station E-Series Block Diagram
