Introduction of the MICROS Tablet and Base Station E-Series 1-9
Figure 1-12 Series 1 (Left) and Series 2 (Right) Pole Display Bases
The Integrated Mini Printer
The Integrated Mini-Printer is a compact thermal printer designed to attach to a fixed
location on the Base Station E-Series and R-Series. The Integrated 2-inch Mini Printer is
based on a Fujitsu thermal print mechanism and firmware, and is not Epson compatible.
The printer is RS232 based and includes an interface cable with DB9F connector that is
recommended for COM2, a powered RS232 Port with 12V available.
The figure below highlights the custom printer mounting bracket that attaches to the
Base Station. At the lower half, is a channel that attaches near the I/O panel and in the
upper half, a pair of tabs that attach to a Base Station ventilation slot.

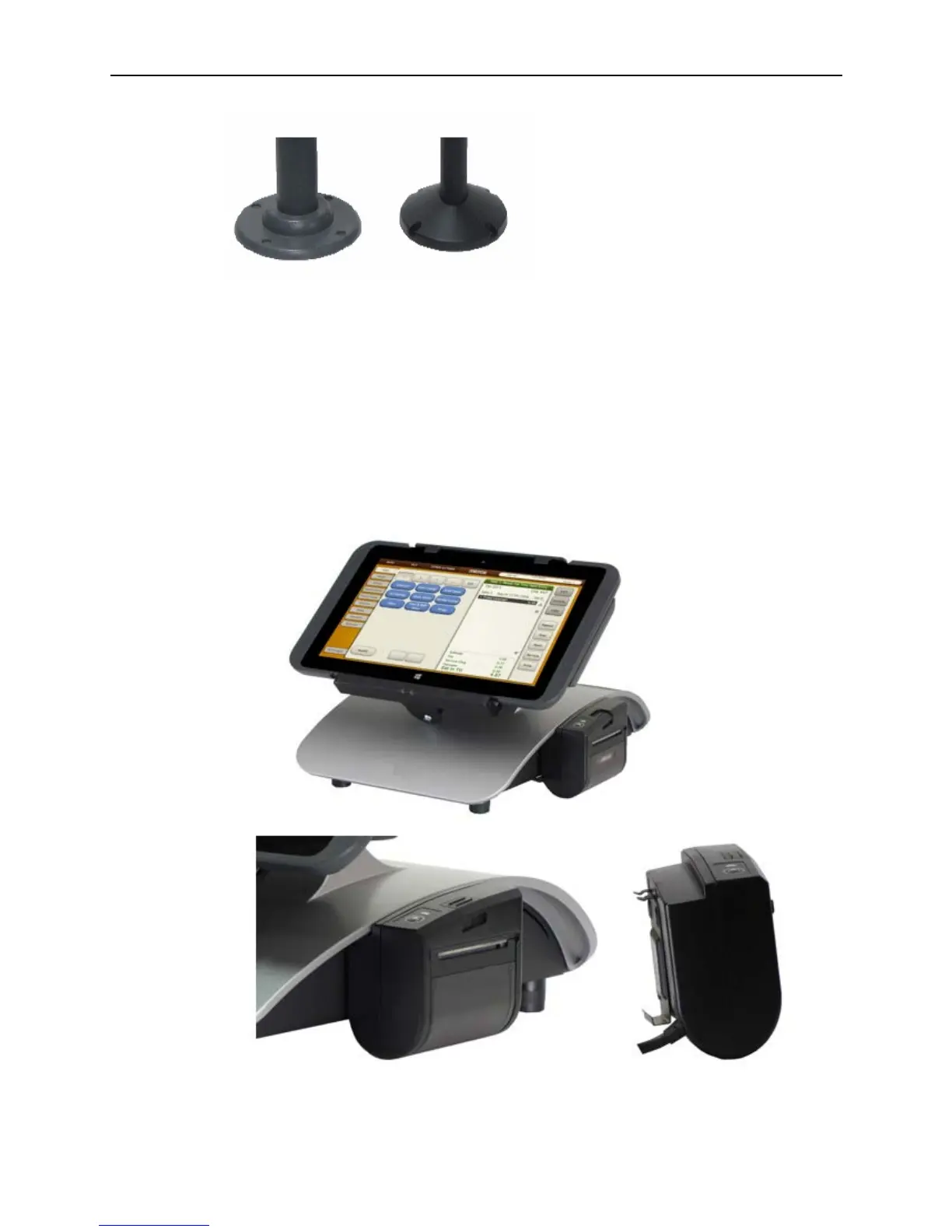

Figure 1-13 Integrated Mini-Printer Bracket and Location on Base Station
