3-26 Installing and Operating the Tablet and Base Station E-Series
Testing the Integrated Mini Printer
The Integrated Mini Printer can be tested with the Diagnostic Utilities supplied on the OS
image. The Integrated Mini Printer is not Epson compatible; therefore, the RS232
Print/Loopback tests do not function. See Section 4 for details.
Installing the Base Station Wireless Scanner
The Base Station Wireless Scanner can be installed on Base Station R-Series and E-Series.
Installation instructions are provided with the scanner. The Scanner and Dock are paired
at the factory and ready to go out of the box.
I/O Panel Overview
The Base Station E-Series I/O Panel is shown in the figure below.

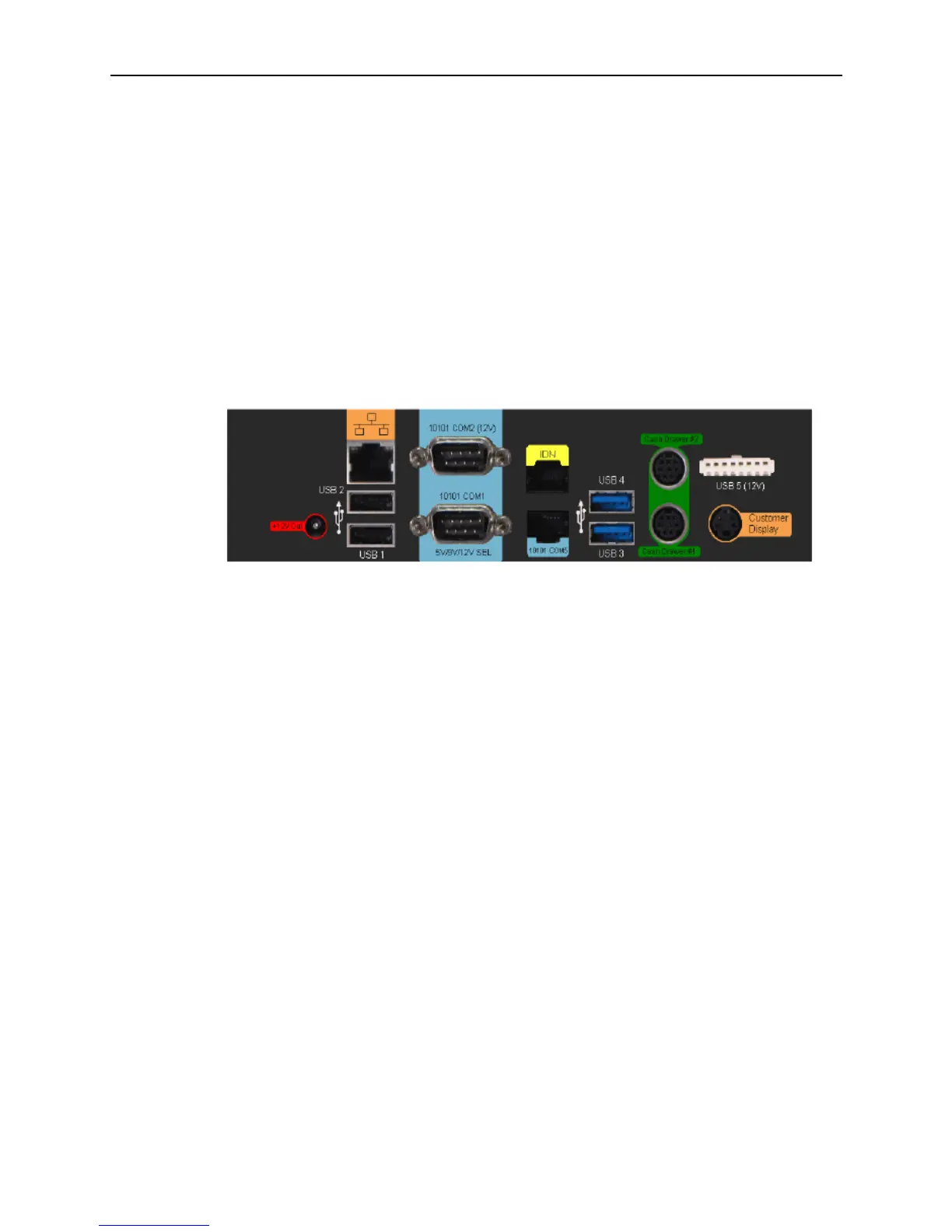

Figure 3-28 Base Station E-Series I/O Panel
+12V Out
The Auxiliary Power connector for a peripheral device.
Ethernet
The Base Station E-Series includes a 10/100/1000 Ethernet Controller with a UTP
Modular connector. The modular connector features an integrated isolation
transformer as well as link and status indicator LEDs.
USB1 - USB4
In addition to a MICROS powered USB port, the Base Station E-Series I/O Panel
includes four standard USB ports labeled USB1 through USB4. USB1 and USB2
are USB 2.0 compatible. USB3 and USB4 are USB 3.0 Compatible denoted by a
Blue connector.
When Tablet E-Series is installed, it can take up to one minute before the Base
Station E-Series USB ports become active.
10101 COM2 (12V)
COM2 is a DB9 serial port with 12V available on Pin-9 (RI) of the connector. The
MICROS Integrated Mini Printer is designed to use this port.
10101 COM1 5V/9V/12V SEL
COM1 is a DB9 serial port with user selectable voltages of 0V, 5V, 9V, or 12V on
Pin-9 (RI) of the connector. The voltage is selected through the Diagnostics
Utility.
IDN
The IDN port can be configured as a full-duplex RS422 port to support IDN
Printing devices. It can also be configured as a simple 2-wire TX/RX RS232
Interface to support a number of peripheral devices.
