Oracle e-series User Manual

Introduction of the MICROS Tablet and Base Station E-Series 1-5
Tablet E-Series 11 is installed. When the Tablet E-Series is removed, it returns to sleep
within 30 seconds.
The Base Station E-Series casework is derived from the Base Station R-Series and
supports the same peripherals—Series 2 Integrated and Pole, a 2 inch thermal printer,
and a 1D/2D Wireless Bar Code scanner.
The Base Station E-Series is assigned a unique identifier by the Oracle application,
allowing it to identify key attributes, including cash drawer assignments by employees.
The Base Station E-Series tray details are below. Pulling the release pin allows the tray to
be raised for installation or removal of the Tablet E-Series 11. After installation, the tray is
closed and can be secured to Base Station E-Series with the provided key lock.

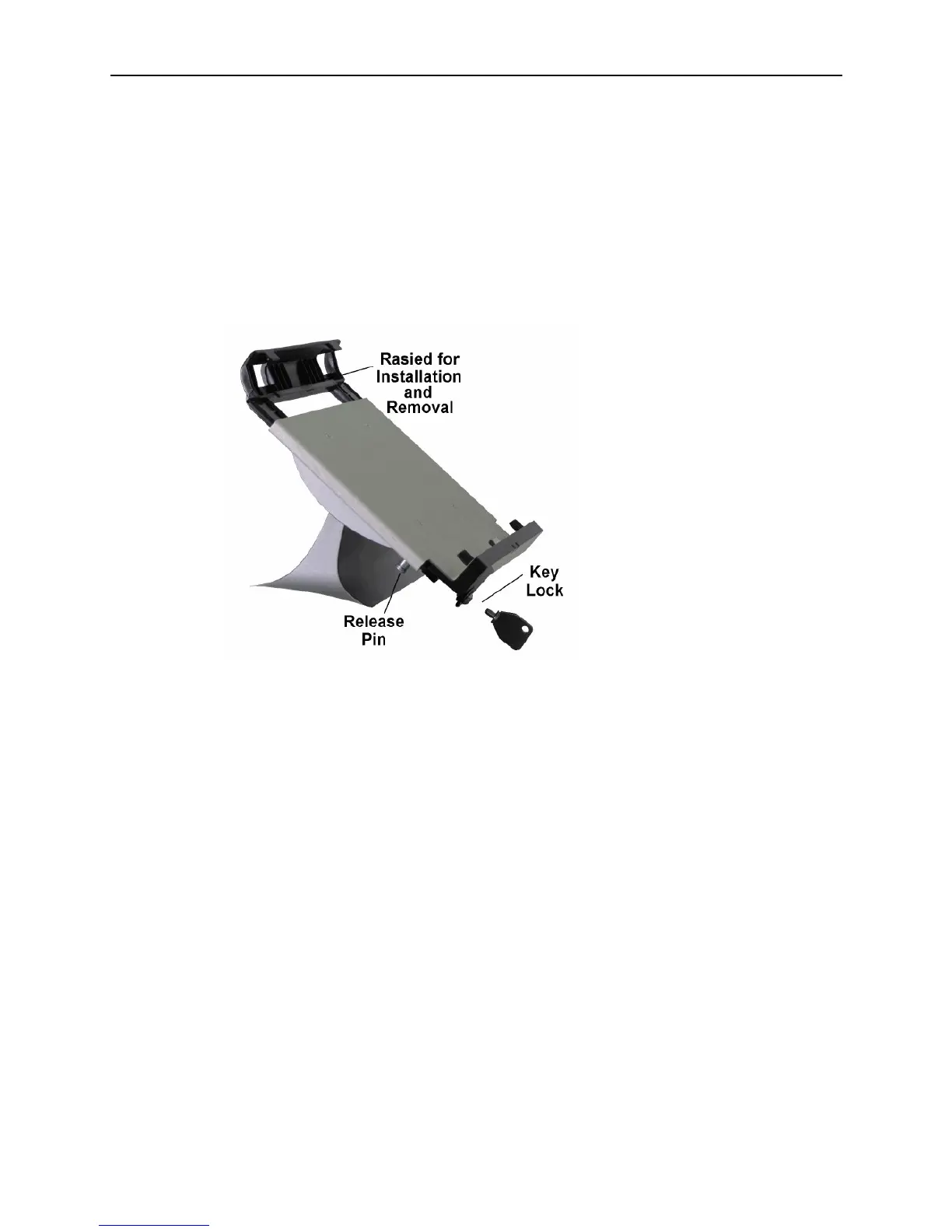

Figure 1-6 Base Station E-Series Tray
Peripheral Support
The Base Station E-Series I/O Panel features the following connectors:
 2 MICROS Series 2 Cash Drawer Ports.
 10/100/1000 Wired Ethernet.
 2 x USB 3.0
 2 x USB 2.0
 4 Serial Ports
– 1 RS232 DB9 /w Software Selectable 5V/9V/12V Power
– 1 RS232 DB9 /w 12V Power (Recommended for the Mini Printer)
– 1 IDN - Switchable RS422/RS232
– 1 RJ45 Serial /w full handshake support.
 1 Customer Display Port
 1 MICROS Powered USB (12V, and 5V), reserved for the Protégé
 Customer Display System
 +12V Auxiliary Power Jack.

Oracle e-series Specifications

General

Brand	Oracle
Model	e-series
Category	Tablet
Language	English
