1-6 Introduction of the MICROS Tablet and Base Station E-Series
Indicators

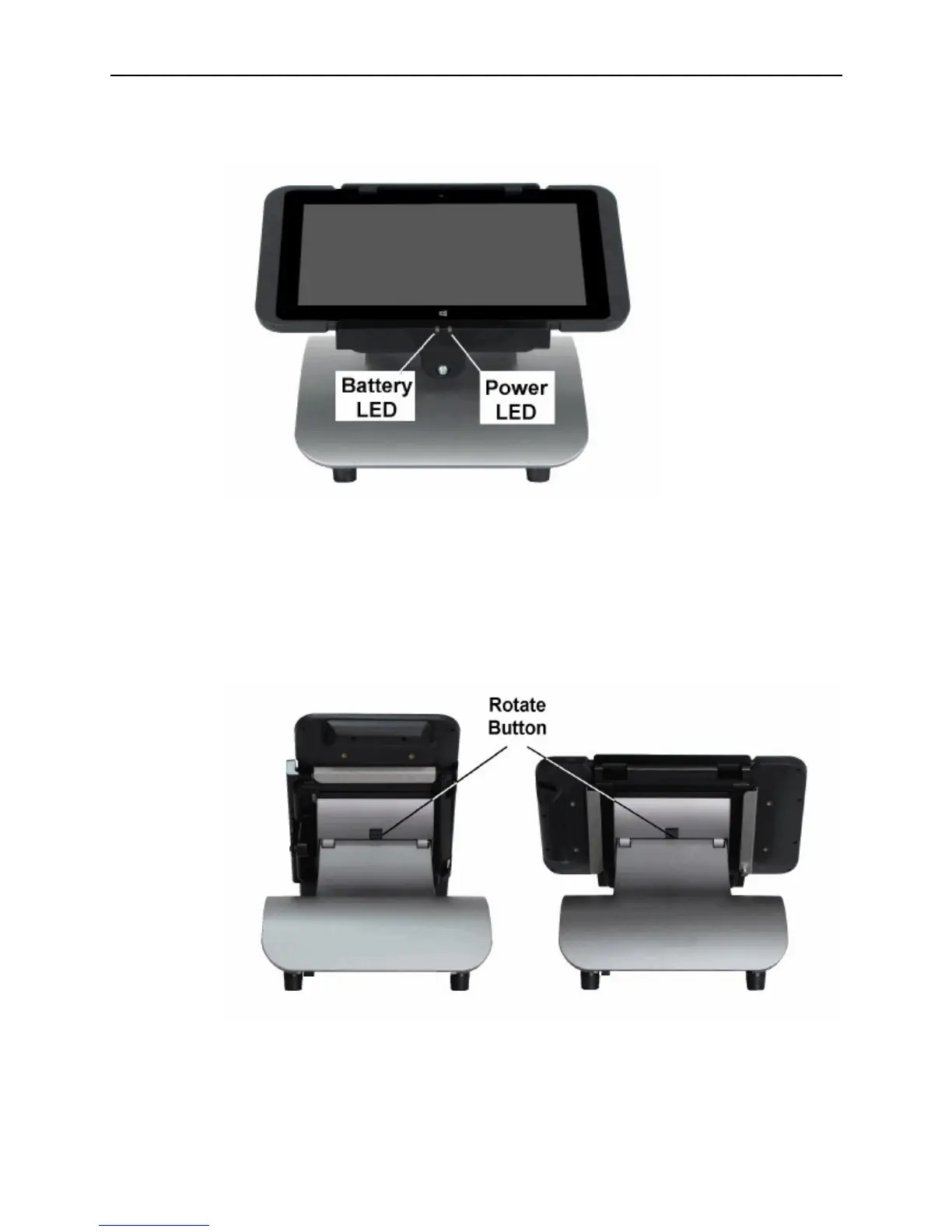

The figure below shows the indicator LEDs on the Base Station E-Series tray.
Figure 1-7 Base Station E-Series LED Indicators
Tablet Rotation
The Rotate Button releases the Base Station E-Series tilt and rotate mechanism, allowing
you to change the orientation of the Tablet E-Series 11. The figure below presents
examples of portrait orientation with the mag card reader at the top and landscape
orientation with the mag card reader positioned to the right.
Figure 1-8 Changing the Tablet Orientation
The figure below points out the Base Station E-Series Accessary Mounting points.
